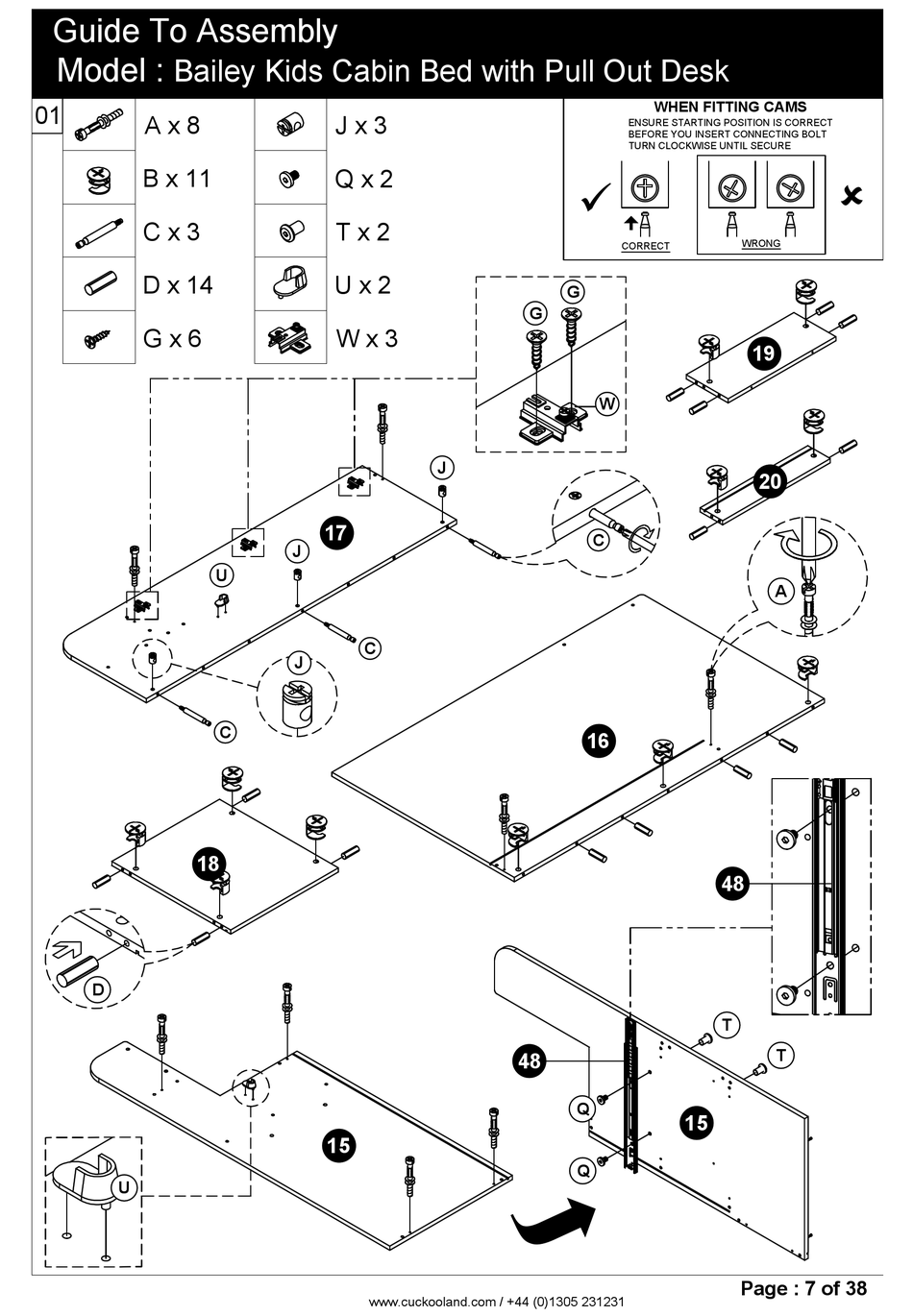

Guide To Assembly
Model :
Bailey Kids Cabin Bed with Pull Out Desk
01
A x 8
B x 11
C x 3
D x 14
G x 6
18
D
U
J x 3
Q x 2
T x 2
U x 2
W x 3
17
J
U
C
J
C
15
