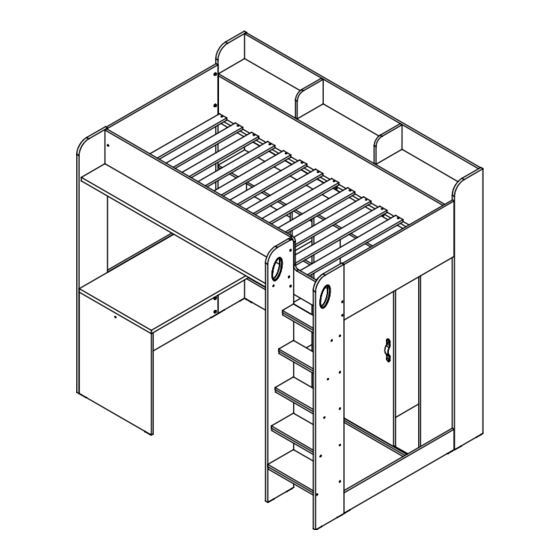

- Page 1 Ava High Sleeper Assembly Instructions...
- Page 2 Thank you for purchasing this product. Before starting assembly we suggest you spend a short time reading through this leaftlet, then follow the simple step by step guide.Two people are needed to assemble this product. 1966mm [77.40"] 1893mm [74.52"] 1380mm [54.33"] Page : 1 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 3 19. Never attach or hang items to any part of the bunk bed that are not designed for use with the bed for example, but not limited to hook, belt and jump ropes. Page : 2 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 4 OF POWER TOOLS WILL INVALIDATE ANY CLAIM AND MAY DAMAGE THIS PRODUCT MAKING IT UNSAFE. Phillips Screw Driver Approximately 3 hour € € 2 People Required Rubber Hammer Tape Measure Page : 3 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 5 1st Step Panel (Ladder) Top Panel (Wardrobe) 2nd Step Panel (Ladder) Sliding Door (Wardrobe) 3rd Step Panel (Ladder) 4th Step Panel (Ladder) 5th Step Panel (Ladder) Shelf Panel Left Center Panel Page : 4 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 6 Part List Model : MG 7827 LVL Slats x15 Page : 5 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 7 M6 JCN Nut PVC Hanging Hook M6 Allen Wrench Felt Pads (45 x 14mm) Round Sticker 25mm Round Sticker 25mm 16+2 6/8 L Bracket PVC Back Support 22mm Chipboard Screw Page : 6 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 8 A x 23 ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING BOLT TURN CLOCKWISE UNTIL SECURE B x 31 C x 34 WRONG CORRECT U x 6 Page : 7 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 9 Guide To Assembly Model : MG 7827 D x 4 D x 7 Page : 8 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 10 Guide To Assembly Model : MG 7827 A x 10 U x 4 Page : 9 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 11 Guide To Assembly Model : MG 7827 N x 5 R x 3 x 12 Page : 10 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 12 Guide To Assembly Model : MG 7827 V x 8 Page : 11 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 13 A x 11 ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING BOLT TURN CLOCKWISE UNTIL SECURE B x 19 C x 32 WRONG CORRECT U x 2 Page : 12 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 14 Guide To Assembly Model : MG 7827 D x 3 A x 2 Page : 13 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 15 Guide To Assembly Model : MG 7827 U x 6 Page : 14 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 16 Guide To Assembly Model : MG 7827 H x 2 M x 2 Page : 15 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 17 Guide To Assembly Model : MG 7827 P x 3 Page : 16 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 18 A x 15 ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING BOLT TURN CLOCKWISE UNTIL SECURE B x 18 C x 28 WRONG CORRECT S x 2 Page : 17 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 19 Guide To Assembly Model : MG 7827 F x 2 A x 3 Page : 18 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 20 Guide To Assembly Model : MG 7827 U x 6 Page : 19 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 21 Model : MG 7827 E x 4 R x 2 J x 1 W x 1 M x 1 X x 4 Q x 2 Y x 4 Q x 3 Page : 20 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 22 Guide To Assembly Model : MG 7827 E x 8 K x 1 L x 2 G x 2set Pull Down Page : 21 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 23 A x 16 ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING BOLT TURN CLOCKWISE UNTIL SECURE B x 12 C x 19 WRONG CORRECT J x 4 Page : 22 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 24 Guide To Assembly Model : MG 7827 U x 4 N x 20 Page : 23 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 25 Guide To Assembly Model : MG 7827 N x 5 R x 3 Page : 24 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 26 Guide To Assembly Model : MG 7827 H x 4 M x 4 J x 2 M x 2 Page : 25 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 27 Guide To Assembly Model : MG 7827 M x 4 Page : 26 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 28 Guide To Assembly Model : MG 7827 P x 30 LVL Slats x15 V x 3 Page : 27 of 28 www.cuckooland.com | +44 (0)1305 231231...
- Page 29 Guide To Assembly Model : MG 7827 V x 3 V x 4 Page : 28 of 28 www.cuckooland.com | +44 (0)1305 231231...
