5.7 Closing the housing

1. Put the housing cover into position on the device and affix it using the 4
bolts (torque 1 Nm).

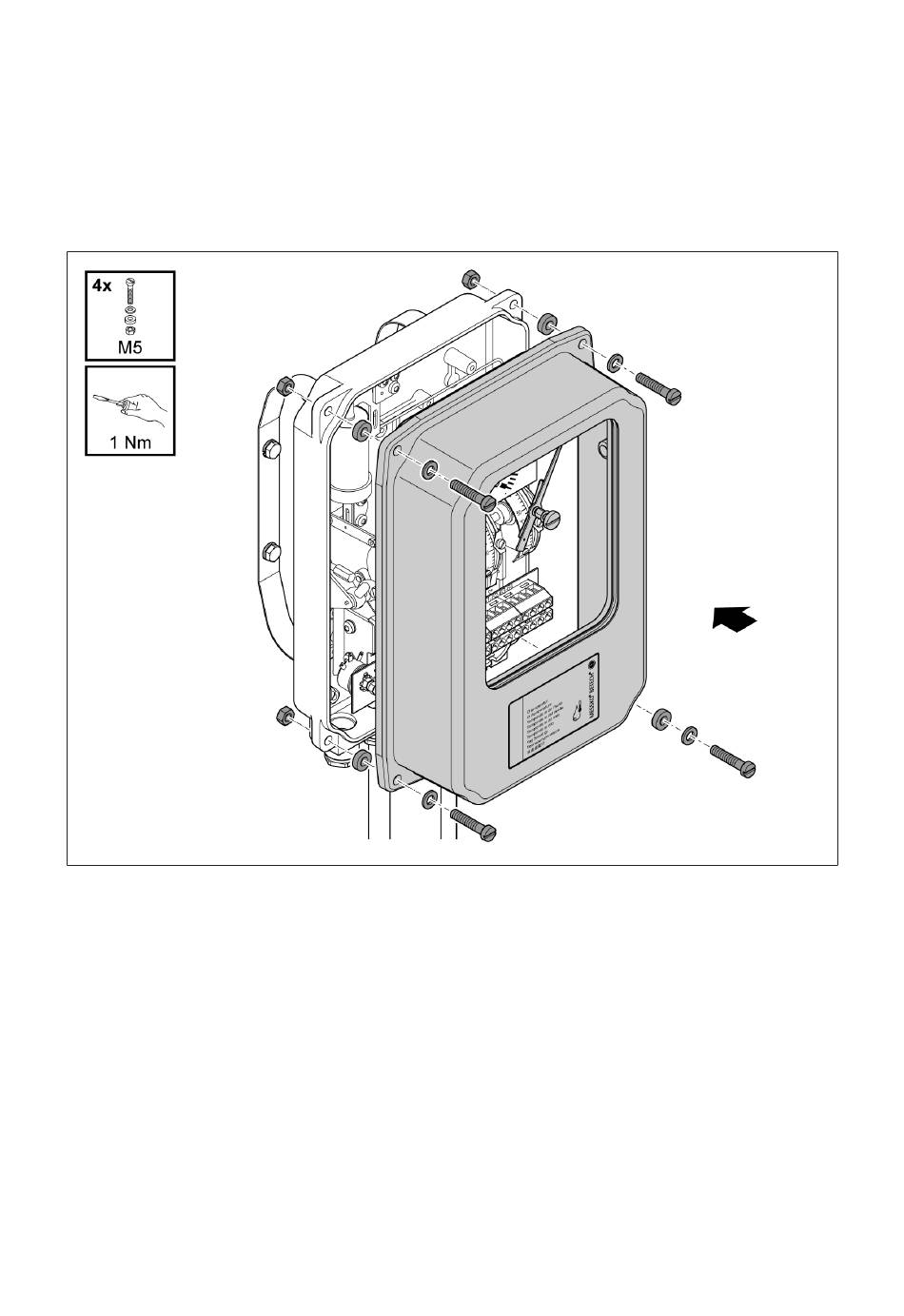

Figure 37: Closing the housing (standard version)

5.8 Setting temperature gradients (winding temperature)

5.8.1 Gradient setting by heating current

Gradient
The gradient is the temperature difference above the oil temperature for the
pointer thermometer for winding temperature. The pointer thermometer for
winding temperature displays a thermal image of the winding temperature
on the transformer.
58 Installation and commissioning 9181336/00 EN
