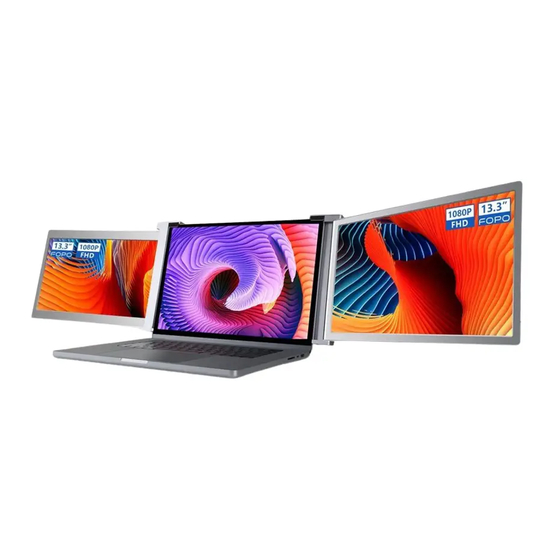

- Page 1 Portable Monitor Model:S12 Triple Portable Monitor Toll-free: +1 833 637 2188 (09:00-18:00 (Monday to Friday) EST; 11:00-20:00 (Saturday to Sunday) EST...
- Page 2 Toll-free: +1 833 637 2188 (09:00-18:00 (Monday to Friday) EST; 11:00-20:00 (Saturday to Sunday) EST...
-
Page 3: Table Of Contents
Contents 1. Overview ------------------------------------------------------------------------------------ ------------------------------------------------------------------------- 2. Package Contents 3. Inputs and Buttons ----------------------------------------------------------------------- 4. Set It Up -------------------------------------------------------------------------------------- 5. Connect the Monitor with Your Laptop ---------------------------------------------- 6. Choose Your cables ---------------------------------------------------------------------- 7. Connection Methods --------------------------------------------------------------------- ----------------------------------------------- 7.1 Two Type-C or Thunderbolt 3/4 Ports -------------------------- 7.2 One Full Functioned Type-C and HDMI Port Connection ----------------------------------... -
Page 4: Overview
1. Overview Triple Monitor 1* Cleaning Cloth 1* Hook-and-loop 2*USB-C to USB-C Fastener (90-degree) Cables VIDEO & POWER 1*Power Adapter 2* Screen Protectors 2*Mini HDMI to HDMI Cables VIDEO ONLY 1* Laptop Bag 6* Protective Caps 2*USB-C to USB-A Cables POWER ONLY... -
Page 5: Package Contents
Please kindly check out all the accessories in the package. If you find anything missing, please don't hesitate to contact us via toll free +1 833 637 2188 or via the email address fopo@afterservice.vip and we will help you solve the problems. -
Page 6: Inputs And Buttons
3. Inputs and Buttons Decrease the brightness; Return to the previous page; Decrease the value - /Return Menu/Enter Increase the brightness; Enter the Menu, +/Next +/Next and press it to turn to the next selection; Increase the value Menu/Enter - /Return Press the Menu to enter the OSD (On-Screen Display) menu Type-C... - Page 7 Warning Turning Angle of Screens Left Screen(0°-235°) Right screen(0° - 180°) Note: Please handle the triple monitor with care and do not press the screens to avoid damages. Do not unfold it to exceed its maximum turning angle showing as above. Protective cap Protective c Using the protective cap if your lap top is an ultra- thin style(laptop screen...
-
Page 8: Set It Up
4. Set It Up Unpack the triple monitor. Open two screens in the directions as shown in Fig. 2. Place the bracket at the back of the laptop screen and install it well with the bracket clamping the screen firmly. Lift up the stand and stretch to its end. -
Page 9: Connect The Monitor With Your Laptop
If laptop size is not within this range, please feel free to contact us via toll free +1 833 637 2188 or via the email address fopo@afterservice.vip , and we will help you solve the problems as soon as possible. -
Page 10: Choose Your Cables
6. Choose Connecting Cables Notes: To determine which cables you will use, first identify your laptop’ s ports accord- ing to the figure below or your laptop’ s user manual. VIDEO & POWER: VIDEO ONLY POWER ONLY *Make sure your USB-C port on the laptop is full-functioned port. Please refer to your laptop's user manual. -
Page 11: Connection Methods
If you can't connect the monitor with the laptop, please contact us via toll free +1 833 637 2188 or via the email address fopo@afterservice.vip, and inform the customer service of the model number of your laptop to quickly determine... - Page 12 5 Notes: ke sure the Type ptop is a ull-functioned Type ata tr ke sure 5 can be supported through Type e ternal power supply of 5 t us via toll free +1 833 637 2188 or via fopo@afterservice.vip...
-
Page 13: One Full Functioned Type-C And Hdmi Port Connection
7. Connection Methods 7.2 One Full Functioned Type-C and HDMI Port Connection If there's one full functioned Type-C port and one HDMI port on the laptop: 1) Use the included full functioned Type-C cable to connect one side of the monitor and the laptop. -
Page 14: Other Connection Type (Extra Adapter Needed)
(fopo@afterservice.vip) (2) You need to use 4 cables with an extra adpater for connection: First, connect one side of your FOPO monitor to laptop with a HDMI and a USB-C to USB-A cord. Second, connect the HDMI adapter to your laptop. -
Page 15: Laptop Display Configuration
8. Laptop Display Configuration 8.1 PC/WINDOWS 1.Enter the Display Settings interface. (Start >Settings > System > Display) 2.Identify the Screen/Set Display Direction Click and drag the screens to the configuration shown. 3.Start Duplication/Extension Setting If you need to set different display modes on the triple monitor, please click 1/2/3 (click the “... -
Page 16: Mac
8. Laptop Display Configuration 8.2 MAC 1. Identify the Screen/Display Direction Setting Open the “System Preferences” . Select “Display” from the menu. Click and drag the screens(Fig.3). Click“Display Settings”(Fig.2)to the configuration shown. 2. Start Duplication/Extension Setting Click monitor name to set Mirror or Extended display（Fig. 2） 3. -
Page 17: Osd Function Introduction
9. OSD Function Introduction “ ” i t c “ ” “ ” r fi “ ” BRIGHTNESS BRIGHTNESS CONTRAST BLACK LEVEL SHARPNESS... -
Page 18: Osd Setting
10. OSD Setting BRIGHTNESS Brightness BRIGHTNESS Brightness: The adjusting range is from 0 to 100. CONTRAST Contrast: The adjusting range is from 0 to 100. BLACK LEVEL Black Level: The adjusting range is from 0 to 100. SHARPNESS Sharpness: The adjusting range is from 0 to 100. Image IMAGE ECO: Presets the display settings for various... - Page 19 10. OSD Setting COLOR TEMP Color Temp COLOR TEMP COOL Color Temp: Enables the adjustment of each RGB color, or select a Warm or Cool preset level. GREEN Red: The adjusting range is from 0 to 100. BLUE Green: The adjusting range is from 0 to 100. Blue: The adjusting range is from 0 to 100.
- Page 20 10. OSD Setting RESET Reset RESET Reset: Selects RESET to revert all settings to the factory default mode. MISC Signal Source: MISC. Contains two signal sources: Type-C and HDMI. Low Blue Light: SIGNAL SOURCE TYPE C Decreases the amount of blue light in the LOW BLUE LIGHT display.
-
Page 21: Supported Brands & Models
11. Supported Brands & Models Brands Models MacBook Air MacBook Air 13 2018， 2019， 2020(intel CPU) MacBook pro13 2016， 2017， 2018， 2019， 2020(Intel CPU) MacBook Pro 16-inch 2019， 2021 MAC Book MacBook pro MacBook pro15-inch 2016， 2017， 2018， 2019 MacBook pro 14-inch 2021 （... - Page 22 11. Supported Brands & Models Brands Models Inspiron 7000 16，Inspiron 7610 16 Plus Inspiron Inspi ron 15， 5000 Urban 14， 5000 Urban 15， 5000 Fit 14， 5410 14， 7000 14 Latitude 3510， 3520， 5420， 7420， 7400 2-in-1， 7410， 7520， 5300 2-in-1， Latitude 9510 DELL...
- Page 23 11. Supported Brands & Models Brands Models ThinkPad X1 Nano 13'' ThinkPad X13 13.3'' ThinkPad X ThinkPad X1 Yoga 2020 14'' ThinkPad X1 Titanium Yoga 13.5'' ThinkPad ThinkPad X390 Yoga 13.3'' ThinkPad X1 Extreme Gen1 15.6'' ThinkPad T ThinkPad T14 2021 14''， T15 15.6''， T15P 15.6''， T590 15.6''， 14'' ThinkPad P15v 2020 15.6'' ThinkPad P1 Gen 3 15.6'' ThinkPad P...
- Page 24 Surface Pro, it won't support our triple monitors. The supported brands listed above will keep updating, pls conta ct FOPO if you have any questions. If you can't find your laptop model on the supporting list and n ot sure whether...
-
Page 25: Tech Specs
12. Tech Specs Display Inputs and Connectivity (Per Screen) Power Consumption: 5V 2A Thunderbolt3/4/USB-C 3.1 Input Adaptive Laptop Dimensions: 12 inch (Video and Power) Resolution: 1920*1080 Thunderbolt3/4/USB-C 3.1 Input Panel Type: Full HD LCD IPS Panels (Video and Power) Aspect Ratio: 16:9, 4:3 Mini-HDMI Input (Video Only) Brightness: 220 - 300 cdm²... -
Page 26: Cleaning & Maintenance
The screen will recover slowly or you can power it off for hours. When the screen becomes black or flashes, or cannot work anymore, please contact us via the email address fopo@afterservice.vip for help. Do not repair the screen by yourself! -
Page 27: Faq
3): Some old models of laptops can't be used because they lack HDMI or Type-C port to connect with the monitor. If so, you can contact FOPO send you a free suitable docking station for connection. And after connecting with the docking station, in order to use the monitor normally, you need to restart the laptop and triple monitor screens. - Page 28 USB-C to USB-A cables (only power), one cleaning cloth, two screen protectors and a hook-and-loop fastener. If you find your package lost any of the accessories above, pls immediately contact FOPO service If you have other issues, pls contact FOPO service, we will offer you with help.
-
Page 29: Contact Us
15. Contact Us If you need any help, please don't hesitate to contact us via toll-free +1 833 637 2188 or via email address fopo@afterservice.vip and we will help you solve the problems.
