Fopo S17 User Manual

Triple portable monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Portable Monitor
Model:S17
Triple Portable Monitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S17 and is the answer not in the manual?

Questions and answers

Related Manuals for Fopo S17

Summary of Contents for Fopo S17

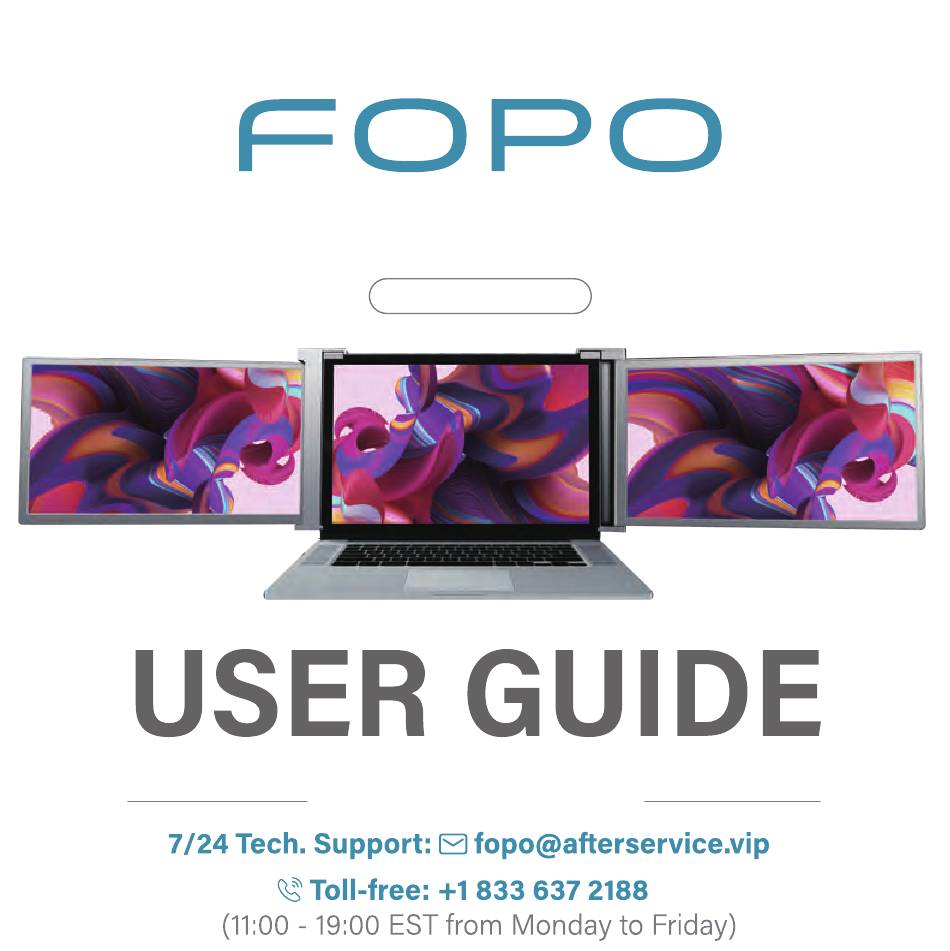

  • Page 1 Portable Monitor Model:S17 Triple Portable Monitor...

  • Page 3: Table Of Contents

    Contents 1. Overview ------------------------------------------------------------------------------------ ------------------------------------------------------------------------- 2. Package Contents 3. Inputs and Buttons ----------------------------------------------------------------------- 4. Set It Up -------------------------------------------------------------------------------------- 5. Connect the Monitor with Your Laptop ---------------------------------------------- 6. Choose Your cables ---------------------------------------------------------------------- 7. Connection Methods --------------------------------------------------------------------- ------------------------ 7.1 Two Full Functioned Type-C/Thunderbolt-3 Ports Connection -------------------------- 7.2 One Full Functioned Type-C and HDMI Port Connection ----------------------------------...

  • Page 4: Overview

    1. Overview Triple Monitor 2*Mini HDMI to 2*USB-C to USB-C HDMI Cables (90-degree) Cables VIDEO ONLY VIDEO & POWER 2*USB-C to USB-A 1* Hook-and-loop Cables Fastener POWER ONLY 1*Power Adapter...

  • Page 5: Package Contents

    Please kindly check out all the accessories in the package. If you find anything missing here, please don’ t hesitate to contact us via the email address fopo@afterservice.vip and we will help you solve the problems as soon as possible.

  • Page 6: Inputs And Buttons

    3. Inputs and Buttons Decrease the brightness; Return to the previous page; Decrease the value. Increase the brightness; Enter the Menu, and press it to turn to the next selection; Increase the value. Press the Menu to enter the OSD (On-Screen Display) menu. Type-C Port (Power Supply Only): Power Supply, Reverse Charging, Compatible with PD2.0 power supply protocol, Supporting 5-20V voltage input...
  • Page 7 Warning Note: Please handle the triple monitor with care and do not press the screens to avoid damages. Do not unfold it to exceed its maximum turning angle showing as below. Turning Angle of Screens Left Screen(0°-235°) Right screen(0° - 180°)

  • Page 8: Set It Up

    4. Set It Up Unpack the triple monitor. Open two screens in the directions as shown in Fig. 2. Place the bracket at the back of the laptop screen and install it well with the bracket clamping the screen firmly. Lift up the stand and stretch to its end.

  • Page 9: Connect The Monitor With Your Laptop

    Please measure the length, height and thickness of the laptop first to make sure it can be compatible with the monitor. If it is not within this range, please feel free to contact us via the email address fopo@afterservice.vip and we will help you solve the problems as soon as possible.

  • Page 10: Choose Your Cables

    6. Choose Connecting Cables Notes: To determine which cables you will use, first identify your laptop’ s ports accord- ing to the figure below or your laptop’ s user manual. VIDEO & POWER: VIDEO ONLY POWER ONLY *Make sure your USB-C port on the laptop is full-functioned port. Please refer to your laptop's user manual.

  • Page 11: Connection Methods

    5V/2A If you can't connect the monitor with the laptop, please contact us via the email address fopo@afterservice.vip, and inform the customer service of the model number of your laptop to quickly determine the compatibility of the connecting...
  • Page 12 An external power supply of 5V/2A or above is needed for normal use. If you can't connect the monitor with the laptop, please contact us via fopo@afterservice.vip, and inform the Tech. Support of the model number of your laptop to quickly solve your issues.

  • Page 13: One Full Functioned Type-C And Hdmi Port Connection

    7. Connection Methods 7.2 One Full Functioned Type-C and HDMI Port Connection If there's one full functioned Type-C port and one HDMI port on the laptop: 1) Use the included full functioned Type-C cable to connect one side of the monitor and the laptop.

  • Page 14: Other Connection Type (Extra Adapter Needed)

    (fopo@afterservice.vip) (2) You need to use 4 cables with an extra adpater for connection: First, connect one side of your FOPO monitor to laptop with a HDMI and a USB-C to USB-A cord. Second, connect the HDMI adapter to your laptop.

  • Page 15: Laptop Display Configuration

    fl ( ” 5.Start Scaled Ratio Setting i l c “ f ” “150%” . * In the setting of the graphic card, you can set three displays sync. If you have any problems, please consult FOPO service (email address: fopo@afterservice.vip)

  • Page 16: Mac

    8. Laptop Display Configuration 8.2 MAC 1. Identify the Screen/Display Direction Setting “ ” “ t f ” “Arrangement” . Click and drag the screens to the configuration shown. 2. Start Duplication/Extension Setting c i l “ t r r i .

  • Page 17: Osd Function Introduction

    9. OSD Function Introduction “ ” i t c “ ” “ ” r fi “ ” BRIGHTNESS BRIGHTNESS CONTRAST BLACK LEVEL SHARPNESS...

  • Page 18: Osd Setting

    10. OSD Setting BRIGHTNESS Brightness BRIGHTNESS Brightness: The adjusting range is from 0 to 100. CONTRAST Contrast: The adjusting range is from 0 to 100. BLACK LEVEL Black Level: The adjusting range is from 0 to 100. SHARPNESS Sharpness: The adjusting range is from 0 to 100. Image IMAGE ECO: Presets the display settings for various...
  • Page 19 10. OSD Setting COLOR TEMP Color Temp COLOR TEMP COOL Color Temp: Enables the adjustment of each RGB color, or select a Warm or Cool preset level. GREEN Red: The adjusting range is from 0 to 100. BLUE Green: The adjusting range is from 0 to 100. Blue: The adjusting range is from 0 to 100.
  • Page 20 10. OSD Setting RESET Reset RESET Reset: Selects RESET to revert all settings to the factory default mode. MISC Signal Source: Contains two signal sources: Type-C and HDMI. MISC. Low Blue Light: SIGNAL SOURCE TYPE C Decreases the amount of blue light in the LOW BLUE LIGHT display.

  • Page 21: Supported Brands & Models

    11. Supported Brands & Models Brands Models MacBook Pro: 15-inch 2016, 2017, 2018, 2019; MacBook pro16 2019, 2021 (incompatible with Apple's M1, but compatible with the M1 Pro MacBook pro MacBook and Max) 3i (15” , Intel) IdeaPad 5 (15” ) Intel 9i (15”...
  • Page 22 11. Supported Brands & Models Brands Models ProArt G17 ASUS ProArt ProArt G15 OMEN 17T-CK000 OMEN 15t-ek100 OMEN OMEN 16-b0014nr OMEN 15-en1010nr other Probook 15 G3 ENVY 15t-ep100 ENVY ENVY 17t-ch100 Acer Acer P50 Acer TravelMate TravelMate P215 gram 17 2020 17" gram 16 2021 16"...
  • Page 23 11. Supported Brands & Models Brands Models ThinkPad P17 2021 17.3'' ThinkPad X1 Extreme Gen1 15.6'' ThinkPad P15 15.6'' ThinkPad P15v 2020 15.6'' ThinkPad T15 15.6'' ThinkPad P53 15.6'' ThinkPad P52 15.6'' ThinkPad P73 17.3'' ThinkPad ThinkPad ThinkPad P1 Gen 3 15.6'' ThinkPad P72 17.3'' ThinkPad P15s Gen 2 15.6'' ThinkPad P53 15.6''...
  • Page 24 If your laptop uses chip M1 or your laptop model is Microsoft's Surface Pro, it won't support our triple monitors. The supported brands listed above will keep updating, pls contact FOPO if you have any questions. If you can't find your laptop model on the supporting list and not sure whether FOPO monitors are compatiple with your laptop, pls directly contact us (email address: fopo@afterservice.vip)

  • Page 25: Tech Specs

    12. Tech Specs Display Inputs and Connectivity (Per Screen) Power Consumption: 5V 2A Thunderbolt3/USB-C 3.1 Input Adaptive Laptop Dimensions: 15 inch (Video and Power) Resolution: 1920*1080 Mini-HDMI Input (Video Only) Panel Type: Full HD LCD IPS Panels USB-C Input (Power Only) Aspect Ratio: 16:9, 4:3 Brightness: 220 - 300 cdm²...

  • Page 26: Cleaning & Maintenance

    The screen will recover slowly or you can power it off for hours. When the screen becomes black or flashes, or cannot work anymore, please contact us via the email address fopo@afterservice.vip for help. Do not repair the screen by yourself!

  • Page 27: Faq

    4) Note: The following laptops not support with our monitor, pls contact FOPO service for help: laptop with M1 chip; Microsoft Surface Pro. If you're not sure whether your laptop is suitable for the monitors after reading our manual, pls contact FOPO service (email address: fopo@afterservice.vip).
  • Page 28 USB-C to USB-A cables (only power), one cleaning cloth, two screen protectors and a hook-and-loop fastener. If you find your package lost any of the accessories above, pls immediately contact FOPO service If you have other issues, pls contact FOPO service, we will offer you with help (email address: fopo@afterservice.vip).

  • Page 29: Contact Us

    15. Contact Us If you need any help, please don't hesitate to contact us via the email address fopo@afterservice.vip and we will help you solve the problems as soon as possible.
