Summary of Contents for Harvia HPCE1322

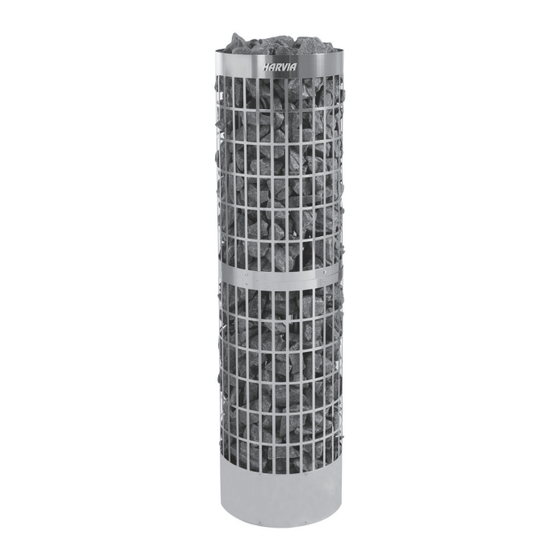

- Page 1 Harvia Cilindro Pro HPCE1322 Instructions for installation and use of Electric Sauna Heater PC132E 28042023 / Y05-1228 A...
-
Page 2: Table Of Contents
CONTENTS These instructions for installation and use are intended for the owner or the person in charge of the sauna, as well as for the electrician in charge of the electrical installation of the heater. After completing the installation, the person in charge of the installation should give these instructions to the owner of the sauna or to the person in charge of its operation. -
Page 3: Installation Images
INSTALLATION IMAGES 1. Safety distances (min. mm) 1900 2. Electrical Connections › See page 10... - Page 4 3. Installing the heater 4. Replacing the Heating Elements...
- Page 5 5. Installing the sensor (min. mm) >...
- Page 6 6. Sauna room structure › See page 11 7. Sauna room ventilation › See page 11 min. 1000 mm 360° min. 500 mm 180° 8. Piling of the sauna stones › See page 13...
-
Page 7: Warnings And Notes
WARNINGS AND NOTES READ THE WARNINGS AND MANUAL CAREFULLY BEFORE USING THE PRODUCT! Installation and maintenance • The sauna heater is designed for the heating of a sauna room to bathing temperature. It is not to be used for any other purpose! The control unit is meant for controlling the functions of a sauna and a sauna heater. - Page 8 Instructions for use and bathing • Beware of hot heater. The stones and metal parts of the heater may burn the skin. • Always check that there is no objects on the heater or near the heater before switching it on. •...
-
Page 9: Instructions For Installation
INSTRUCTIONS FOR INSTALLATION See WARNINGS AND NOTES! See INSTALLATION IMAGES! Technical data HPCE1322 Installation details Max. power 13,2 kW Input 200 V, 3-Phase 50 / 60 Hz Connection cable type H07RN-F or equivalent Weight 18 kg Stones max. 140 kg / Ø 5-10 cm Storage temperature 0-50 °C... -
Page 10: Electrical Connections
Electrical connections › Image 2 The heater may only be connected to the electrical network in accordance with the current regulations by an authorised, professional electrician. • See installation image 2 • The heater is semi-stationarily connected to the junction box on the sauna wall. The junction box must be splash- proof, and its maximum height from the floor must not exceed 500 mm. -
Page 11: Sauna Room
SAUNA ROOM See WARNINGS AND NOTES! See TECHNICAL DATA! Sauna room structure › Image 6 See image 6. A. Insulation wool, thickness 50–100 mm. The sauna room must be insulated carefully so that the heater output can be kept moderately low. B. -
Page 12: Sauna Room Hygiene
B. Exhaust air vent (Ø 100 – 200 mm). Place the exhaust air vent near the floor, as far away from the heater as possible. The diameter of the exhaust air pipe should be twice the diameter of the supply air pipe. C. -
Page 13: Operating Instructions
OPERATING INSTRUCTIONS See WARNINGS AND NOTES! See TECHNICAL DATA! See INSTALLATION IMAGES! Placing of sauna stones › Image 8 The piling of the sauna stones has a great effect on both the safety and the heating capability of the heater. Important information about sauna stones: •... -
Page 14: Heating Of The Sauna
Heating of the Sauna • When operating the heater for the first time, both the heater and the stones emit smell. To remove the smell, the sauna room needs to be efficiently ventilated. • If the heater output is suitable for the sauna room, it will take about an hour for a properly insulated sauna to reach the required bathing temperature. -
Page 15: Troubleshooting
• Cool your skin down as necessary. If you are in good health, you can have a swim if a swimming place or pool is available. • Wash yourself after bathing. • Rest for a while and let your pulse go back to normal. Have a drink of fresh water or a soft drink to bring your fluid balance back to normal Troubleshooting All service operations must be done by professional maintenance personnel... -
Page 16: Spare Parts
The warranty is void if the quality requirements stated in the instructions are not met, the appliance is not serviced or maintained as described in the instructions and/or if the appliance is not installed as described in the instructions. P.O.Box 12 Teollisuustie 1-7 40951 Muurame FINLAND +358 207 464 000 harvia@harvia.fi...
