Only use a 120 Volt - 60 Hz power supply outlet
NOTICE
This appliance has a polarized plug (one prong is wider than the other).
As a safety feature, this plug will fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
SPECIAL CORD SET INSTRUCTIONS
A short power supply cord is provided to reduce the risks of becoming entangled in or tripping over a longer cord.
Do not use any extension cords.
Voltage: 120 V ~ 60Hz
Absorbed power: 350 W
Overall dimensions: LxPxH 17.7x11.8x9.4 in (45x30x24 cm)
Weight (including accessories): 8.8 lb (4 kg)
ELECTRIC CHARACTERISTICS: 120 V ~ 60 Hz 350 W
To use your Slow Cooker:

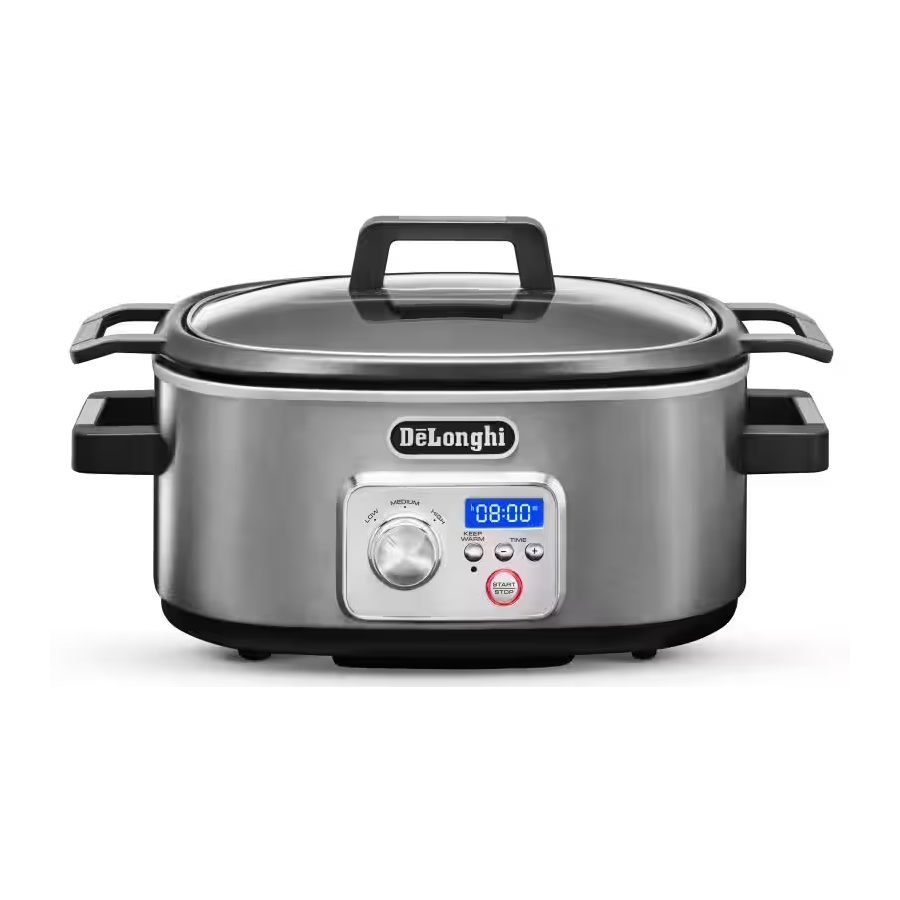

Your De'Longhi Slow Cooker cooks food automatically once you set the time and the desired cooking mode. When time expires, the unit automatically switches to the Keep Warm setting and the Keep Warm indicator light illuminates.
When cooking time and mode are set, the unit will perform those functions until the cooking time expires or the unit is manually turned off.
Your De'Longhi slow cooker is provided with removable 6-qt. (5.7 L) aluminum pot with non-stick coating (H).
Pot can also be used as a serving dish at the dinner table. It is oven safe up to 450°F (230°C), and suitable for the stove top (gas burner stove or electric stove, not induction stove).
Pouring may be difficult if pot is full or nearly full, so it is recommended that you use a ladle to remove the contents from the pot.
Browning & Searing in the Aluminum Pot
Once appliance is connected to the power supply, the display is illuminated as h00:00m (with dots fixed) for 20 seconds. After this time the display backlight is reduced This is defined as Stand-by mode.
Turning Function Selector Dial (A), or press any push buttons, the display will default to setting of selected function. This is defined as Active mode. If no operation is taken within 20 seconds, the display backlight is reduced, turning to Stand-by mode.
This condition is valid anytime if no operation is made within 20 seconds from active mode.
From stand-by mode, if Start/Stop button is pressed one time the control will default into Active mode. If Start/Stop button is pressed again, the current selected function is started.
SLOW COOKER MODE | |||||
SETTING | DESCRIPTION | RECIPES | FUNCTION TEMPERATURE | TIMER | KEEP WARM |
LOW | Good for slow cooking recipes or less tender cuts of meats that require longer cooking times to develop full flavor. | Baked egg based puddings Beef roast Beef rolls Beef short ribs Chicken/turkey pieces Dressing/stuffing Dried beans/lentils Pork roast Soups with less tender cuts of meat Stewed chicken | 175°F (80°C) | Default time is h10:00m Adjustable from 30 minutes to 24h, with increments of 15 minutes | Automatically set at end of cooking time, 12h maximum duration |
MEDIUM | Appropriate for most recipes when there is time for long, slow cooking. It's an ideal setting for food started before going to work in the morning and served for dinner in the evening | Baked potatoes Beef chuck roast Beef roast Beef rolls Beef short ribs Pork ribs Potato casserole Puddings Rice pudding Egg bake Poached pears Pork chops | 185°F (85°C) | Default time is h 08:00m. Adjustable from 30 minutes to 16h, with increments of 15 minutes | Automatically set at end of cooking time, 12h maximum duration |
HIGH | Try using this setting when a shorter cooking time is desired or for recipes that are typically baked. | Broth-based soup Chicken/turkey pieces Roasted meats Steamed potatoes Wild rice casserole Dumplings | 200°F (93°C) | Default time is h04:00m Adjustable from 30 minutes to 8h, with increments of 15 minutes | Automatically set at end of cooking tim, 12h maximum duration |
KEEP WARM | DO NOT USE THIS FUNCTION TO COOK FOOD This setting is intended to reheat or keep cooked food warm only | All cooked food Reheating dinner, Soups, etc. Use for keeping foods warm while entertaining. | 150°F (65°C) | Default time is h00:15m Adjustable from 15 minutes to 12h, with incre ments of 15 minutes | - |
Slow cooking is perfect for foods that require long, slow simmering, such as soups, stocks, stews, and dried beans. Slow cooking is also ideal for specific types of meat such as chuck roasts, short ribs, pork shoulders and lamb shanks.
The Medium and Low settings are usually used for recipes that require additional cook time.
When starting a dish later in the day, select the High setting to ensure that food is cooked, warm, and ready when you' d like to eat.
From stand-by mode, turn the Function Selector Dial (A) to select LOW function.
The display will default to h10:00m flashing, than adjust cooking time by pressing Time + / - push buttons (C).
Each pressing of + button will increase the time in increments of 15 minutes, for a maximum set time of h24:00m. Each pressing of - button will decrease the time in increments of 15 minutes, till h00:30m.
Keep + button pressed for 2 seconds and the display will automatically increase the time, in increments of 30 minutes until the button is released.
Keeping - button pressed for 2 seconds the display will automatically decrease the time, in increments of 30 minutes until the button is released.
Pressing Start/Stop button (D) the selected cooking function is started, the red light (E) around Start/Stop button will illuminate. If Start/Stop button (D) is not pressed within 20 seconds, the control goes in stand-by mode.
The display will stop flashing and the timer starts countdown.
It is possible to stop the function anytime by pressing Start/Stop button (D). The red light (E) around Start/Stop button will turn off, the display will default to stand-by mode.
Once set time is elapsed, the cooking has ended, the red light around Start/Stop button will shut off, the display will show "End" flashing for 5 minutes.
While "End" is flashing you can reset the control by pressing Start/Stop button (D). The control will go into stand-by mode.
If no action is taken after 5 minutes of flashing, the control will automatically default to KEEP WARM function.
Keep warm red light (F) will illuminate, the red light (E) around Start/Stop button will illuminate.
Once Keep Warm function maximum of 12 hours timing has elapsed, the control will turn off and will go into stand-by mode.
From stand-by mode, turn the Function Selector Dial (A) to select MEDIUM function.
The display will default to h08:00m flashing, than adjust cooking time by pressing Time + / - push buttons (C).
Each pressing of + button will increase the time with 15 minute increments, for a maximum set time of h16:00m.
Each pressing of - button will decrease the time with 15 minute increments, till h00:30m.
Keeping + button pressed for 2 seconds the display will automatically increase the time, with 30 minute increments until the button is released.
Keeping - button pressed for 2 seconds the display will automatically decrease the time, with 30 minute increments until the button is released.
Pressing Start/Stop button (D) the selected cooking function is started, the red light (E) around Start/Stop button will illuminate. If Start/Stop button (D) is not pressed within 20 seconds, the control goes in stand-by mode.
The display will stop flashing and the timer starts countdown.
It is possible to stop the function anytime by pressing Start/Stop button. The red light (E) around Start/Stop button will turn off, the display will default to stand-by mode.
Once set time is elapsed, the cooking has ended, the red light (E) around Start/Stop button will turn off, the display will show "End" flashing for 5 minutes.
While "End" is flashing you can reset the control by pressing Start/Stop button (D). The control goes into stand-by mode.
If no any action is taken after 5 minutes flashing, the control will automatically switch to KEEP WARM function.
Keep warm red light (F) will illuminate, the red light (E) around Start/Stop button will illuminate.
Once Keep Warm function maximum of 12 hours time has elapsed, the control will turn off and will go into stand-by mode.
From stand-by mode, turn the Function Selector Dial (A) to select MEDIUM function.
The display will default to h04:00m flashing, than adjust cooking time by pressing Time + / - push buttons (C).
Each pressing of + button will increase the time in increments of 15 minutes, for a maximum set time of h08:00m. Each pressing of - button will decrease the time in increments of 15 minutes, till h00:30m.
Keeping + button pressed for 2 seconds the display will automatically increase the time, with 30 minutes increments until the button is released.
Keeping - button pressed for 2 seconds the display will automatically decrease the time, with 30 minutes increments until the button is released.
Pressing Start/Stop button (D) the selected cooking function is started, the red light (E) around Start/Stop button will illuminate. If Start/Stop button (D) is not pressed within 20 seconds, the control goes in stand-by mode.
The display will stop flashing and the timer starts countdown.
It is possible to stop the function anytime by pressing Start/Stop button (D). The red light (E) around Start/Stop button will turn off, the display will default to stand-by mode.
Once set time is elapsed, cooking has ended, the red light (E) around Start/Stop button will shut off, the display will show "End" flashing for 5 minutes.
While "End" is flashing you can reset the control by pressing Start/Stop button (D). The control goes into stand-by mode.
If no action is taken after 5 minutes flashing, the control will automatically default to KEEP WARM mode.
Keep warm red light (F) will illuminate, the red light (E) around Start/Stop button will illuminate.
Once Keep Warm function maximum of 12 hours timing has elapsed, the control will turn off and will go into stand-by mode.
Keep Warm function is automatically activated at the end of cooking time for each function.
Once the function time has elapsed, the "End" message flashes for 5 minutes, the Keep Warm function will automatically turn on, the Keep warm red light (F) and red light (E) around Start/ Stop button will be illuminated, and the display will show a time count up from h00:00m to h12:00m, with 1 minute increment. So you will know how long the keep warm function has been activated.
If no action is taken, after 12h elapsed the control will turn off, and will go into stand-by mode. The Keep warm red light (F) and red light (E) around Start/Stop button will shut off.
Keep Warm function can be also manually activated pressing Keep Warm button (B).
From stand-by mode (or active mode but not while any cooking function has already started ) function can be activated by pressing Keep Warm button (B).
Keep warm red light (F) will be illuminated, the display default to active mode and show h00:15m.
Further pressing of Keep Warm button (B) will disable the function: the control returns in active mode, Keep warm red light (F) will be turned off and the display will show the default selected function setting for 20 seconds.
If no action after this time the control will returns in Stand-By mode.
It is also possible to disable the Keep Warm function (if not already started) turning the Function Selector Dial (A): Keep warm red light (F) will be turn off and the control will go into active mode, showing default condition for each function for 20 seconds. If no action after this time the control will returns in Stand-By mode.
When Keep Warm function is selected, time can be adjusted from h00:15m to h12:00m, in increments of 15 minutes by pressing Time + / - buttons (C).
Keeping + button pressed for 2 seconds the display will automatically increase the time, in increments of 30 minutes until the button is released.
Keeping - button pressed for 2 seconds the display will automatically decrease the time, in increments of 30 minutes step until the button is released.
If Start/Stop button (D) is not pressed within 20 seconds, the control goes in stand-by mode.
Pressing Start/Stop button (D), Keep Warm function is activated, the red light (E) around Start/Stop button will illuminate.
Once set time is elapsed, the control will turn off and will go into stand-by mode. The Keep warm red light (F) and red light (E) around Start/Stop button will shut off.
For both above cases (Manual or Automatic), it is possible to stop the function anytime by pressing Start/Stop button (D).
The red light (E) around Start/Stop button and Keep warm red light (F) will turn off, the display will default to stand-by mode.
Each cooking function has already started, you can turn the Function Selector Dial (A), changing the current cooking function. The control continues the countdown of time previously selected if it did not exceed the maximum time of the newly selected function, and changes the temperature setting to the new function selected.
If the time exceeds the maximum time for new selected function, the display will change to maximum time value for new selected function.
See below examples of how to select the Time/Function values.
Examples:
Low Function with time h22:15m
change to Medium Function
time will be h16:00m
Medium function with time h10:20m
change to High function
time will be h08:00m
Medium function with time h04:30m
change to High function
time will be h04:30m
If the Function Selector Dial (A) is turned when Keep Warm function is already stated, the control will not change anything, and continue to run the Keep Warm function.
When cooking function has already started, you can adjust the timer by pressing Time + / - buttons (C).
As first pressing of + / - buttons, the display will start to flash showing actual time.
If no further selection of + / - buttons, after 3 seconds the display will stop flashing confirming the value.
Further pressing of + / - buttons, the display will show the nearest multiple value of 15 minutes.
See below examples how the control will select the 15 minute multiple values:
Examples:
01:34 > + button pressed > display will show 01:45
01:34 > - button pressed > display will show 01:30
03:54 > + button pressed > display will show 04:00
03:54 > - button pressed > display will show 03:45
02:16 > + button pressed > display will show 02:30
02:16 > - button pressed > display will show 02:15
Further pressing of Time + / - buttons (C) the control will increase or decrease the timer in increments of 15 minutes.
Keeping + button pressed for 2 seconds the display will automatically increment the time by 30 minutes until the button is released.
Keeping - button pressed for 2 seconds the display will automatically decrease the time, in increments of 30 minutes until the button is pressed.
If no additional pressing of Time + / - buttons (C), after 3 seconds the display will stop flashing and will confirm new value.
Here are a few simple tips to assure your slow cooker gives you years of service.
Lid is dishwasher safe.
We recommend hand washing the pot to ensure longer life of the non-stick coating.
Slow Cooker will not switch ON or LCD display light has gone out | Check that the power plug is properly inserted into wall outlet Insert the power plug into a different outlet Verify the circuit breaker If above solution does not solve the problem, the appliance has probably had a malfunction. Unplug the appliance from the outlet and contact a De'Longhi customer service for assistance. |
The display show![]() | The electronic control detects a malfunction in the appliance. Unplug the appliance from the outlet, wait for 10 minutes and plug it again. If error message is displayed again, unplug the appliance from the outlet and contact De'Longhi Customer Service for assistance |
Serves: 10
Prep: 15 minutes
Cook: 2 ½ hours
Total time: 2 ¾ hours
Ingredients:
¼ cup butter
1 small onion, diced
1 tablespoon garlic, minced
1 block (8oz) cream cheese, softened
½ cup mayonnaise
½ cup sour cream
¼ half and half (or regular milk)
½ teaspoon red pepper flakes (can be adjusted to spice level desired)
1 package (10oz) frozen spinach (thawed and water squeezed out)
1 can (14oz) artichoke hearts, drained and chopped
1 jalapeño pepper, minced
1 tablespof wine vinegar
¼ parmesan cheese, grated
½ cup feta cheese crumbles
½ cup mozzarella cheese
Directions:
Remove the insert from the slow cooker and place on the stove top. Melt the butter in the insert over medium heat. Add the onion and sauté about 5 minutes, stirring occasionally until the onions are translucent. Add the garlic and sauté for another minute.
Replace the insert in the slow cooker. Add the cream cheese, sour cream, mayonnaise and half and half to the onion and garlic. Stir to combine. Add the remaining ingredients and again stir to thoroughly combine.
Cover and set the slow cooker to cook on Low for 2 ½ hours. Stir before serving.
Serves: 4
Prep: 25 minutes
Cook: 3 to 3½ hours
Total time: Approximately 3½ hours
Ingredients:
2 tablespoons butter
1 cup barley
3 cups vegetable broth
½ cup celery, chopped
1 red pepper, cored, seeded and chopped
1 small onion, chopped
1 large clove garlic, minced
1 medium head cauliflower, cut into florets
1 can (15 oz) garbanzo beans, drained and rinsed
Dressing:
3 tablespoons lemon juice
1 tablespoon mayonnaise
1 teaspoon Dijon mustard
½ teaspoon sugar
5 tablespoons olive oil
Salt, to taste
Ground pepper, to taste
1 bag (5 oz) arugula or baby kale
½ cup cashews, coarsely chopped
¼ cup fresh parsley, chopped (optional)
Directions:
Remove the insert from the slow cooker and place on the stove top set to medium heat. To the insert add the butter and the barley. Stir and cook for approximately 10 minutes or until barley is slightly browned. Transfer the insert back to the slow cooker.
To the barley, add the broth and next 4 ingredients. Stir to combine. Place the cauliflower florets on top of the mixture. Cover and cook on Medium 3 to 3.5 hours, or until the barley is tender and the liquid is absorbed. Add the garbanzo beans. Fold the beans into the barley mixture.
While the barley cooks, prepare the salad dressing by whisking together the lemon juice, mayonnaise, Dijon mustard, sugar and olive oil in a medium bowl until emulsified. Season the dressing to taste with the salt and pepper.
To prepare the individual salads, place individual portions of the arugula or kale. Top with the cooked barley mixture. Drizzle with the dressing and top with chopped cashews and parsley.
Serves: 4
Prep: 15 minutes
Cook: 3 hours
Total time: 3 hours 15 minutes
Ingredients:
2½ - 3 pounds boneless, skinless chicken thighs, cut into 2" pieces
1 onion, diced
4 cloves garlic, minced
1 tablespoon fresh ginger, minced
4 teaspoons curry powder
1 tablespoon garam masala
2 teaspoons cumin
1 teaspoon turmeric
¾ teaspoon cayenne pepper
3 tablespoons tomato paste
1 can (14 oz) coconut milk
½ cup sour cream
¼ cup butter
1 teaspoon smoked paprika
Salt, to taste
½ cup chopped cilantro
Jasmine rice, cooked according to package directions
Directions:
Combine the chicken pieces, onion, garlic and ginger in the slow cooker pot. In a small bowl, combine the curry powder and the next four ingredients through the cayenne pepper. (*) Sprinkle the spice mixture over the chicken. Stir to coat the chicken pieces with the spice. Add the tomato paste and coconut milk to the chicken. Stir to evenly distribute the tomato paste.
Cover and cook on Medium heat for 3 hours. At the end of the cook time add the sour cream, butter and smoked paprika. Stir the mixture to create a smooth, uniform sauce. Season to taste with additional salt. Serve the butter chicken over rice and top with additional sour cream and cilantro if desired.
(*) If a spicier version of this dish is desired, reserve 1/3 – 1/2 of the dry spice mixture to add with an hour left in the cook cycle.
Serves: 6-8
Prep: 20 minutes
Cook: 8 hours
Total time: 8 hours 20 minutes
Ingredients:
Salt
Pepper
Smoked Paprika
4-5 pound chuck roast
2 tablespoons olive oil
2 tablespoons butter
2 whole sweet onions, peeled and halved
1 stalk celery cut into
4 pieces
12 baby carrots
1 cup red wine
2 cups beef broth
2 sprigs fresh rosemary
3 sprigs fresh thyme
2 bay leaves
2 tablespoons corn starch (if needed)
¼ cup beef broth (if needed)
Vegetables:
5 small red potatoes, cut into quarters
16 baby carrots
2 sweets onions, peeled and quartered
Directions:
Sprinkle the roast on all sides with salt, pepper and paprika.
Remove the insert from the slow cooker. Place the insert on the stove top and add the oil and butter. Heat over medium high heat. Place the onion halves, carrots and celery in the heated pan. Brown the vegetables on all sides. Remove the vegetables from the pan to a large plate. Place the seasoned roast in the pan adding more oil if needed. Sear the meat at least 3 minutes per side. Remove the meat from the pan adding it to the plate with the browned vegetables. Deglaze the pan by slowly pouring the wine into the pot. As the wine boils, stir to loosen any residual food material that was stuck to the pan from browning the vegetables and searing the meat. Once the pan has been deglazed, return the insert to the slow cooker. Add the browned vegetables back to the pan and place the meat on top of the vegetables. Lay the fresh herbs on top of the roast. Add enough beef stock to the pan to cover the bottom half of the roast. Place the bay leaves into the broth. Place the raw potatoes, carrots and quartered onion on top of the roast. Put the lid on the pot. Set to cook on Medium heat for 8 hours. At the end of the cook time, remove the top layer of vegetables (potatoes, carrots and quartered onion) and the roast to a serving plate. Cover to keep warm. Remove the bay leaves and herbs and discard. Pour the pan sauce containing the browned onions, carrots, celery into a stainless steel sauce pan. Using a hand blender, blend until smooth. If the gravy is too thin, mix the corn starch and ¼ cup broth. Whisk into the pan gravy. Heat the gravy until boiling. Turn the heat down to bring the gravy to a low boil. Stir until the gravy thickens to desired consistency. To serve, divide the roast and vegetables into individual portions and top with the pan gravy.
When using an electrical appliance, basic safety precautions should always be followed:
SAVE THESE INSTRUCTIONS
After having removed the appliance from its packaging, check that all parts are intact.
The lid is made of glass and is therefore fragile. If it is visibly chipped, scored or scratched, it should be replaced. While using, cleaning or moving the appliance, avoid slamming or knocking the lid. Do not pour cold liquid onto the glass while the appliance is hot.
The accessories for cooking of this appliance are not suitable for food preservation. Avoid leaving acid foods for prolonged time such as lemon/orange juice, tomato or vinegar on accessories surface. If left on surfaces for prolonged time these substances may damage and deteriorate the non stick coating.
Register Now
www.delonghi.com/register
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Advertisement
Need help?
Do you have a question about the CKS1660D and is the answer not in the manual?
Questions and answers
