Xvive LV2 - Micro Lavalier Microphone Manual

INTRODUCTION

Xvive LV2 is a high-performance 3 mm (0.12 in) subminiature lavalier microphone. It offers a high level of speech intelligibility, and is easily hidden in costumes/hair, buttonholes etc. — even glued on performers' faces — in film, theater, and broadcast.

FEATURES

• Superior audio clarity
• Natural response across the frequency range
• 3 mm (0.12 in) subminiature lavalier microphone
• Small and easily concealed
• Matte black, sleek, low-profile design
• Microphone capsule with omni-directional pickup pattern
• The plug locks and is compatible with standard TRS interface

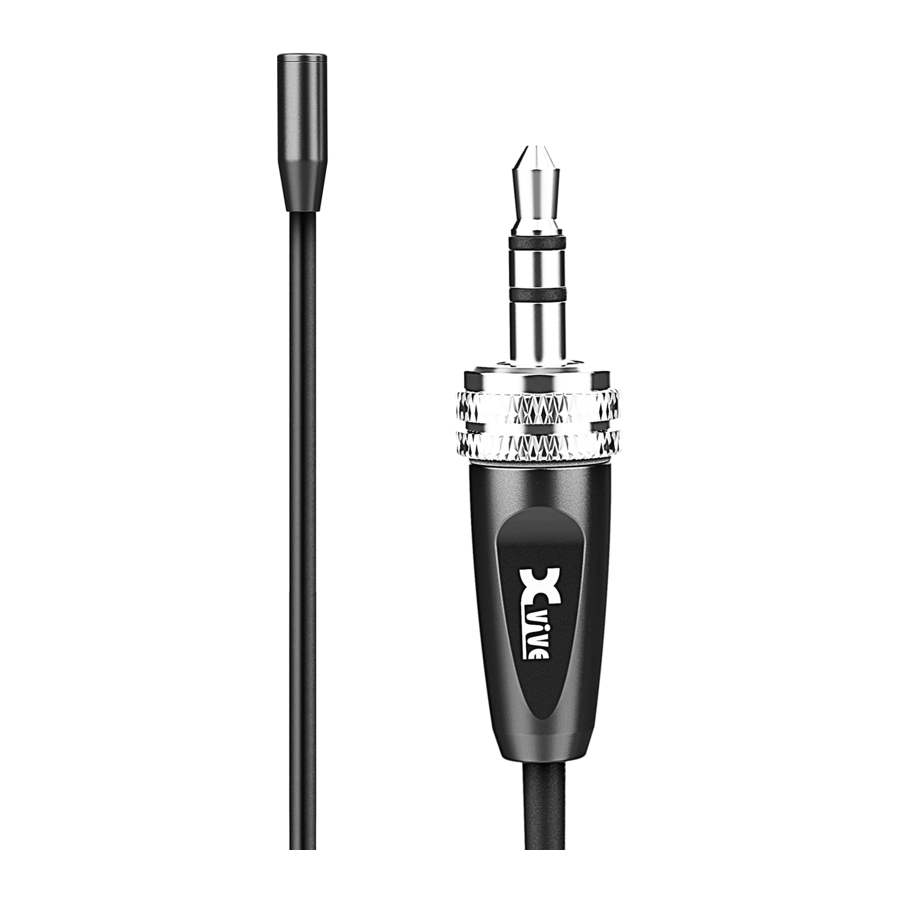

LV2 LAVALIER MICROPHONE

Microphone Connector

Mono 3.5mm TRS output. Ensure the connected device provides a regulated + 0.8V to 5V voltage to the "+" conductor.

TRS Wiring Diagram

QUICK START

LAVALIER MICROPHONE SETUP

1. Install windscreen and mic clip on the lavalier microphone;
2. Use the mic clip to attach the the microphone to clothing, as desired;
3. Run the mic cable to the transmitter in a way that avoids friction noise, and so that the cable and the wireless transmitter antenna do not cross;
4. The Xvive LV2 Lavalier Microphone has an omni-directional pickup pattern. Keep at least 10 inches away from your mouth or audio source.

Plug the 3.5mm TRS lavalier microphone plug into your recording device or wireless audio transmitter.
