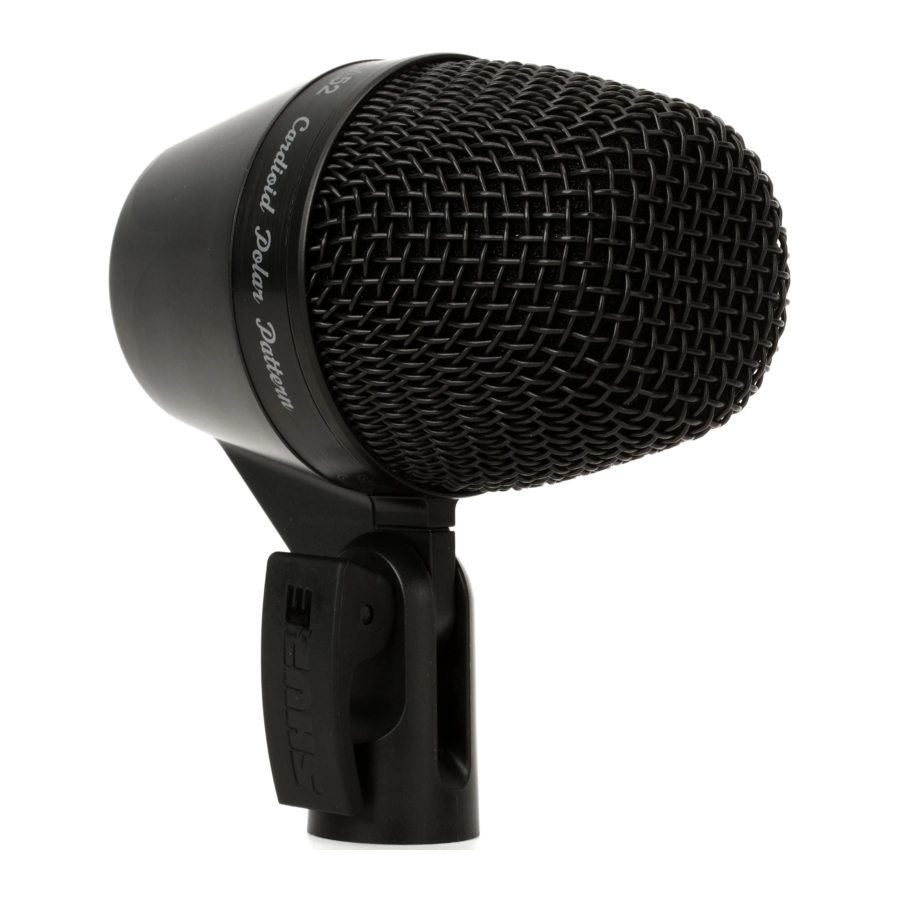

Shure PGA52 - Cardioid Dynamic Kick Drum Microphone PG Alta Series Manual

Introduction

Congratulations on the purchase of a new Shure PG Alta series microphone. The PG Alta series delivers professional quality audio at an affordable price, with solutions for capturing nearly any source, including voice, acoustic instruments, drums, and amplified electric instruments. Suitable for live and studio applications, PG Alta microphones are built to last, and meet the same rigorous quality testing standards that make all Shure products trustworthy and reliable.

General Rules for Use

• Aim the microphone toward the desired sound source (such as an instrument or amplifier) and away from unwanted sources.
• Place the microphone as close as practical to the desired sound source.
• Work close to the microphone for extra bass response.
• For better gain before feedback, use fewer microphones.
• If the kick drum head has a hole cut in it, place the microphone inside for improved rejection of unwanted sources.
• Keep the distance between microphones at least three times the distance from each microphone to its source ("three to one rule").
• Place microphones as far as possible from reflective surfaces.
• Avoid excessive handling to minimize pickup of mechanical noise and vibration.

Proximity Effect

Directional microphones progressively boost bass frequencies as the microphone is placed in closer proximity to the source. This phenomenon, known as proximity effect, can be used to create a warmer, more powerful sound.

Optional Accessories and Replacement Parts

Applications and Placement

The following table lists the most common applications and placement techniques. Keep in mind that microphone technique is largely a matter of personal taste; there is no one "correct" microphone position.

Application	Suggested Microphone Placement	Tone Quality
Kick Drum	5 to 7.5 cm (2 to 3 in.) away from beater head, slightly off-center from beater.	Sharp attack; maximum bass sound, highest sound pressure level.
	20 to 30 cm (8 to 12 in.) from beater head, onaxis with beater.	Medium attack; balanced sound.
		NOTE: To create a tighter sound with more "punch," place a pillow or blanket on bottom of the drum against the beater head.
Guitar & Bass Amplifiers	2.5 cm (1 in.) from speaker, on-axis with center of speaker cone.	Sharp attack; emphasized bass.
	2.5 cm (1 in.) from speaker, at edge of speaker cone.	Sharp attack; higher frequency sound.
	60 to 90 cm (2 to 3 ft.) back from speaker, onaxis with speaker cone.	Softer attack; reduced bass.

Avoiding Pickup of Unwanted Sound Sources

Recommended Loudspeaker Locations for Cardioid Microphones

Place the microphone so that unwanted sound sources, such as monitors and loudspeakers, are directly behind it. To minimize feedback and ensure optimum rejection of unwanted sound, always test microphone placement before a performance.

Using the Quick-Release Lever

This microphone features a quick-release lever to easily adjust position.

1. Pull the lever open

2. Move the microphone into the desired position

3. Press the lever back towards the microphone to tighten


Note: To adjust the tension on the lever, pull it open and use a flat head screwdriver to tighten or loosen the bolt on the opposite side.

Specifications

Type
Dynamic (moving coil)

Frequency Response
50 to 12,000 Hz

Typical Frequency Response

Polar Pattern
Cardioid

Typical Polar Pattern

Output Impedance
150 Ω

Sensitivity
at 1 kHz, open circuit voltage
-55 dBV/Pa ¹ (1.75 mV)
--
¹ Pa=94 dB SPL

Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Weight
454 g (16.01oz.)

Connector
Three-pin professional audio (XLR), male

Environmental Conditions

Overall Dimensions
