KNX/EIB
Push button sensor 3 Plus F100
Push button sensor 3 Plus 2-gang F100
Order-No. : 2042 xx
Push button sensor 3 plus 3-gang (1+2) F100
Order-No. : 2043 xx
Push button sensor 3 Plus 6-gang (3+3)
Order-No. : 2046 xx
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
These instructions are an integral part of the product, and must remain with the end
customer.

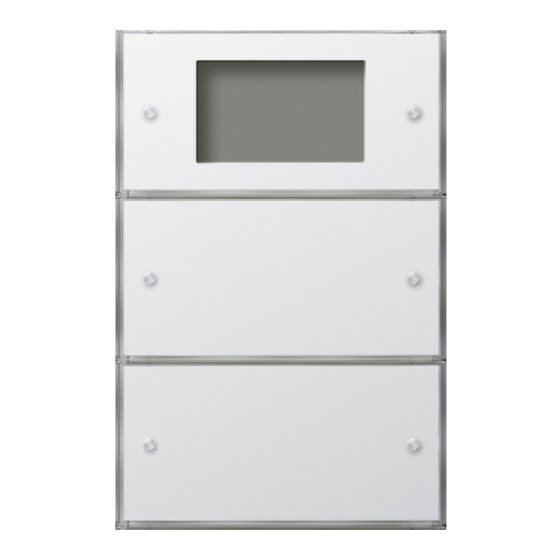

2 Device components
(1) Operating rocker
(2) Status LED
(3) Inscription panel
(4) Operation LED
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper
understanding.
The function of this device depends upon the software. Detailed information on loadable
software and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database. Planning, installation and commissioning of the device are
carried out with the aid of KNX-certified software. The latest versions of product database and
the technical descriptions are available on our website.
32575702
410946 I00
picture 1
14.07.2010
1/7
Advertisement
Related Manuals for Gira Push button sensor 3 Plus 2-gang F100
Summary of Contents for Gira Push button sensor 3 Plus 2-gang F100
- Page 1 KNX/EIB Push button sensor 3 Plus F100 Push button sensor 3 Plus 2-gang F100 Order-No. : 2042 xx Push button sensor 3 plus 3-gang (1+2) F100 Order-No. : 2043 xx Push button sensor 3 Plus 6-gang (3+3) Order-No. : 2046 xx...
-
Page 2: Operation
KNX/EIB Push button sensor 3 Plus F100 Intended use Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc. Measurement and feedback control of the room temperature Installation on bus coupling unit 3 in appliance box to DIN 49073 Product characteristics The pushbutton functions switching, dimming, controlling blinds, valuators, calling up moods, etc. - Page 3 KNX/EIB Push button sensor 3 Plus F100 n, o Move up/down in the list <, > Move to the left/right in the list +, – Increase/reduce setting i The display changes for individual operation steps. The system returns to the basic display automatically after approx.
- Page 4 KNX/EIB Push button sensor 3 Plus F100 Select week Mon...Son, Mon...Fri, weekend Sat...Son or an individual weekday and press Select operating mode for the switching time and press OK. For the next 15 seconds the display summarises the settings for the selected program slot. Confirm with OK.
- Page 5 KNX/EIB Push button sensor 3 Plus F100 (11) Inscription panel (12) Rocker cover picture 4 (13) Anchor (14) Fastening screws The bus coupler 3 is connected to the bus and mounted in an appliance box. i Use only bus coupler 3 – without a programming button. It is not possible to combine it with other bus couplers.
- Page 6 KNX/EIB Push button sensor 3 Plus F100 5.2 Commissioning Loading the physical address and application software picture 5 (15) Programming LED (16) Programming button The programming button and LED are located under the rocker covers (picture 5). The rocker cover (12) and rocker support (10) over the programming button are dismantled. i If the device does not receive any application software, or the wrong application software, then the operation LED (4) flashes.
-
Page 7: Warranty
We provide a warranty as provided for by law. Please send the unit postage free with a description of the defect to our central customer service via your specialised dealer: Gira Giersiepen GmbH & Co. KG Service Center Dahlienstraße 12...
