Ledvance PHASE EV EVCPEDEXT Installation Manual

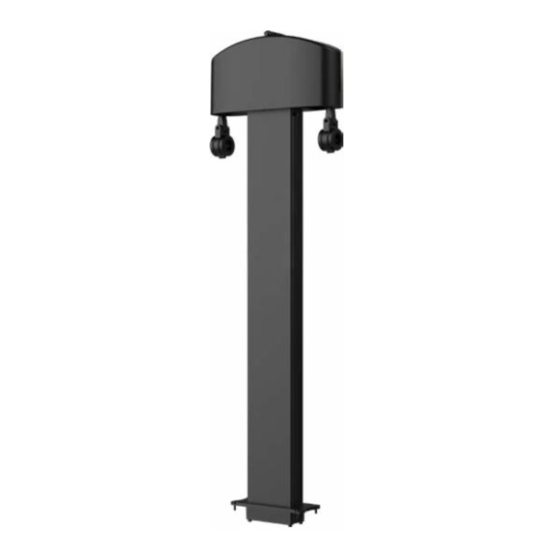

Pedestal extender w/cable management

LEDVANCE PHASE EV

Installation Guide

Pedestal Extender w/Cable Management

Item No: 78136

Model: EVCPEDEXT

Pedestal extender with cable management system to be

used with EVC48ALVL2C1XX (Level 2 Commercial EVSE)

and EVCPED (pedestal).

Please Read All Instructions Before Attempting Installation

−

TO PREVENT PERSONAL INJURY OR PRODUCT DAMAGE ONLY LICENSED ELECTRICIANS SHOULD

PROVIDE ALL INSTALLATION SERVICES.

−

TO AVOID ELECTRIC SHOCK OR COMPONENT DAMAGE DISCONNECT POWER BEFORE ATTEMPTING

INSTALLATION OR SERVICING.

−

THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE NATIONAL ELECTRIC CODE (NEC)

AND ALL APPLICABLE FEDERAL, STATE AND LOCAL ELECTRICAL CODES AND SAFETY STANDARDS.

−

ANY ALTERATION OR MODIFICATION OF THIS PRODUCT IS EXPRESSLY FORBIDDEN AS IT MAY

CAUSE SERIOUS PERSONAL INJURY, DEATH, PROPERTY DAMAGE AND/OR PRODUCT MALFUNCTION.

−

TO PREVENT PRODUCT MALFUNCTION AND / OR ELECTRICAL SHOCK THIS PRODUCT MUST BE

PROPERLY GROUNDED.

Page 1 of 4

WARNING

Table of Contents

Need help?

Do you have a question about the PHASE EV EVCPEDEXT and is the answer not in the manual?

Page 1 LEDVANCE PHASE EV Installation Guide Pedestal Extender w/Cable Management Item No: 78136 Model: EVCPEDEXT Pedestal extender with cable management system to be used with EVC48ALVL2C1XX (Level 2 Commercial EVSE) and EVCPED (pedestal). WARNING Please Read All Instructions Before Attempting Installation −...
Page 2 Safety Precautions IMPORTANT: READ CAREFULLY BEFORE INSTALLING THE PEDESTAL EXTENDER. RETAIN FOR FUTURE REFERENCE. GENERAL: Upon receipt of the pedestal extender with cable management system, thoroughly inspect for any freight damage which should be brought to the attention of the delivery carrier. What’s Included (1) Pedestal extender w/cable management (4) M5 fastener screws...
Page 3 Pedestal Extender w/Cable Management Installation 1. Pry and remove the rubber topper from the base pedestal. 2. Next, insert the pedestal extender into the base pedestal and use the 4 included M5 screws to secure the pedestal extender into place. Page 3 of 4...
Page 4 3. Pull the retractable cable clamp down and disassemble it by unscrewing the outer clamp screw to release the inner clamp and rubber sleeve inserts. Outer Clamp Inner clamp Rubber sleeve inserts 4. Use the correct size rubber sleeve inserts and attach them to the charging cable with the inner clamp. Adjust the charging cable such that it is above the ground when the cable management system is fully retracted.

78136
