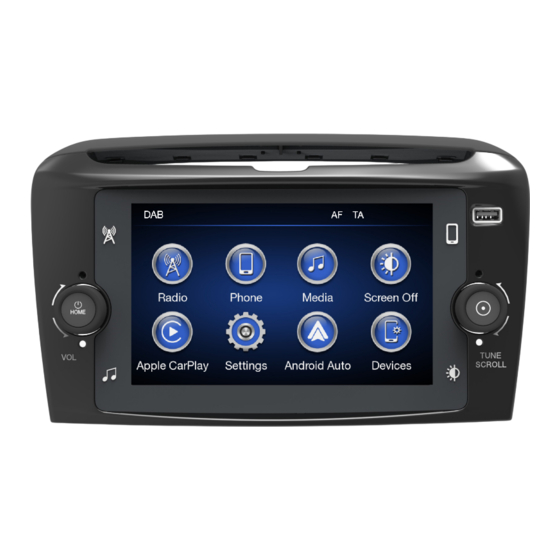

- Page 1 Lancia Ypsilon 7-inch CarPlay/Android Auto Multimedia System User Manual ENGLISH www.stellantisinfotainment.com...
-
Page 2: Tips, Controls And General Information
For all sources (USB, iPod and Bluetooth®), the system can also play the following Playlist formats: .M3U » .PLS » .WPL » For USB sources the system can play videos with the following extensions and formats: » .MP4 » .DAT » .AVI 2 / 25 Lancia Ypsilon Multimedia User Manual... - Page 3 Data Type Max file size limitation Image 32 MB Video 4 GB Audio 256 MB NOTE: It makes no difference whether the suffixes are written in upper or lower case letters. For USB sources, the system can view images with the following extensions and formats: .JPEG »...
-
Page 4: Front Panel Controls
Rotate the knob for manual seek for radio and change the selection up/down in browse. Connect a device to USB connection port to activate iPod/ USB/iPod Port CarPlay/Android Auto port. 4 / 25 Lancia Ypsilon Multimedia User Manual... -
Page 5: Steering Wheel Controls
STEERING WHEEL CONTROLS Button Function Description Press the button for the activation/deactivation of the volume. To cut off the microphone device during BT (Bluetooth®) call, Mute Button press the button to activate mute function. This allows the caller to hear the interlocutor but not vice versa. Press the mute button again to deactivate the function. - Page 6 AM, FM, DAB (if available)). “Stations”: list of the available radio stations. » “Info”: additional information on the source playing. » “Audio”: access the “Audio setting” screen. » 6 / 25 Lancia Ypsilon Multimedia User Manual...
- Page 7 AM/FM/DAB (if available) Radio Station Tuning Press icon to open the Direct Tune menu. The graphic keyboard on the display is used to enter the frequency of the station. In this mode, use buttons + and – to fine-tune the frequency. Press button to delete a wrong number (before entering the correct station frequency).
-
Page 8: Media Mode
USB/iPod are available to play. A list of supported USB flash disks is provided at the following link: http://www.stellantisinfotainment.com/ WARNING When connecting a device (USB or iPod) to the USB port, make sure the device does not obstruct the handbrake lever. 8 / 25 Lancia Ypsilon Multimedia User Manual... -
Page 9: Usb/Ipod Mode
If the mobile phone supports Bluetooth® connection, the audio files stored on the mobile phone can be played through the radio in the car. Seek Previous/Next Press button to play the next selection (which can be track/picture). Press button to return to the beginning of the selection or the beginning of the previous selection. -
Page 10: Phone Mode
Sound of the mobile phone is directed to the car speaker system over radio. System interrupts radio sound automatically while mobile phone function is in use. Pairing the Mobile Phone over BT 10 / 25 Lancia Ypsilon Multimedia User Manual... - Page 11 The instructions below are to be followed for the registering procedure: 1. Ensure that the vehicle is stationary; the pairing process between vehicle and mobile phone can only be done when the vehicle is stationary; 2. Ensure Apple CarPlay/Android Auto is not active on the phone; 3.
- Page 12 2. Press “Phones” button on the display; 3. Select the specific device from the “Paired Devices List”; 4. Press “Media” button to disconnect as “Media source” and/or press “Phone” button to disconnect as “Phone source”. 12 / 25 Lancia Ypsilon Multimedia User Manual...
-
Page 13: Phone Call Features
Deleting a Phone or Audio Device To delete a mobile phone or Bluetooth® audio device from a list, proceed as follows: 1. Press the PHONE button on the front panel; 2. Select button on the display; 3. Select the specific device from the “Paired Devices List”; 4. - Page 14 Press “Ignore” button to ignore the incoming call, which will remain in the background. If button on the front panel is pressed, the incoming call screen will re-appear. 14 / 25 Lancia Ypsilon Multimedia User Manual...
- Page 15 Answering an incoming call during an ongoing conversation To answer an incoming call while another phone conversation is in progress, press “Hold” button to put the ongoing call on hold and answer the new incoming call. Press “Reject” button to close the ongoing call and answer the new incoming call. Press “Ignore”...
- Page 16 The call will continue until it is ended manually or for a maximum period of about 20 minutes. When the system is switched off the call is transferred to the mobile phone. 16 / 25 Lancia Ypsilon Multimedia User Manual...
- Page 17 Activation/Deactivation of the Microphone During a call the microphone can be deactivated by pressing the “Mute” button on the touchscreen (or on the steering wheel). When the microphone is deactivated, it is still possible to listen to the call in progress.
- Page 18 Android Auto is being used in both USB and Wireless mode. ® » The data connection will depend on the payment plan of the smartphone. » The information may be subject to changes that depend on the operating system of the smartphone. 18 / 25 Lancia Ypsilon Multimedia User Manual...
- Page 19 Exiting the Android Auto and Apple CarPlay apps With Apple CarPlay app enabled, you can still access the contents of the system by using the controls available (press button) as shown on its display. To return to the system contents with the Android Auto app enabled, select the last item on the Android Auto system bar and select “Back to Lancia”.
- Page 20 Every time the user turns on the radio, if volume is less than 5 or more than 25, radio volume will be automatically set to these minimum and maximum threshold values. 20 / 25 Lancia Ypsilon Multimedia User Manual...
- Page 21 Speed Volume Control “Off” and “1, 2 or 3”. The option selected is displayed. Choose “1, 2 or 3” to increase the volume proportionally to vehicle speed. Then press button to return to the “Audio” menu. Press button to cancel and exit this screen. Radio Alternative Frequency and Traffic Announcement functions can be activated/deactivated under Radio settings.
- Page 22 Press ON button to allow connection to Android Auto and press OFF to prevent connection to Android Auto. RVC (if available) Shift into reverse gear (R) and radio display will automatically show the area to the rear of your car. 22 / 25 Lancia Ypsilon Multimedia User Manual...
- Page 23 Wireless Connect your wireless projection supported phone to the multimedia system via Bluetooth, CarPlay or Android Auto for wireless. Restore Settings Resetting the radio to its factory settings will erase all the settings previously defined by the user. Confirm the intention to reset the device to its factory settings. Wait for a short time for the factory settings to be restored.
- Page 24 RED Homologation information "български "С настоящото Daiichi Elektronik San. ve Tic. A.S. декларира, че този тип радиосъоръжение 846 е в съответствие с Директива 2014/53/ЕС. [Bulgarian]" Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: https://www.daiichi.com/about-us/" "Cesky "Tímto Daiichi Elektronik San.
- Page 25 Please visit www.stellantisinfotainment.com for detailed user manuals. You may scan the QR code to visit web site. version 1.0...
