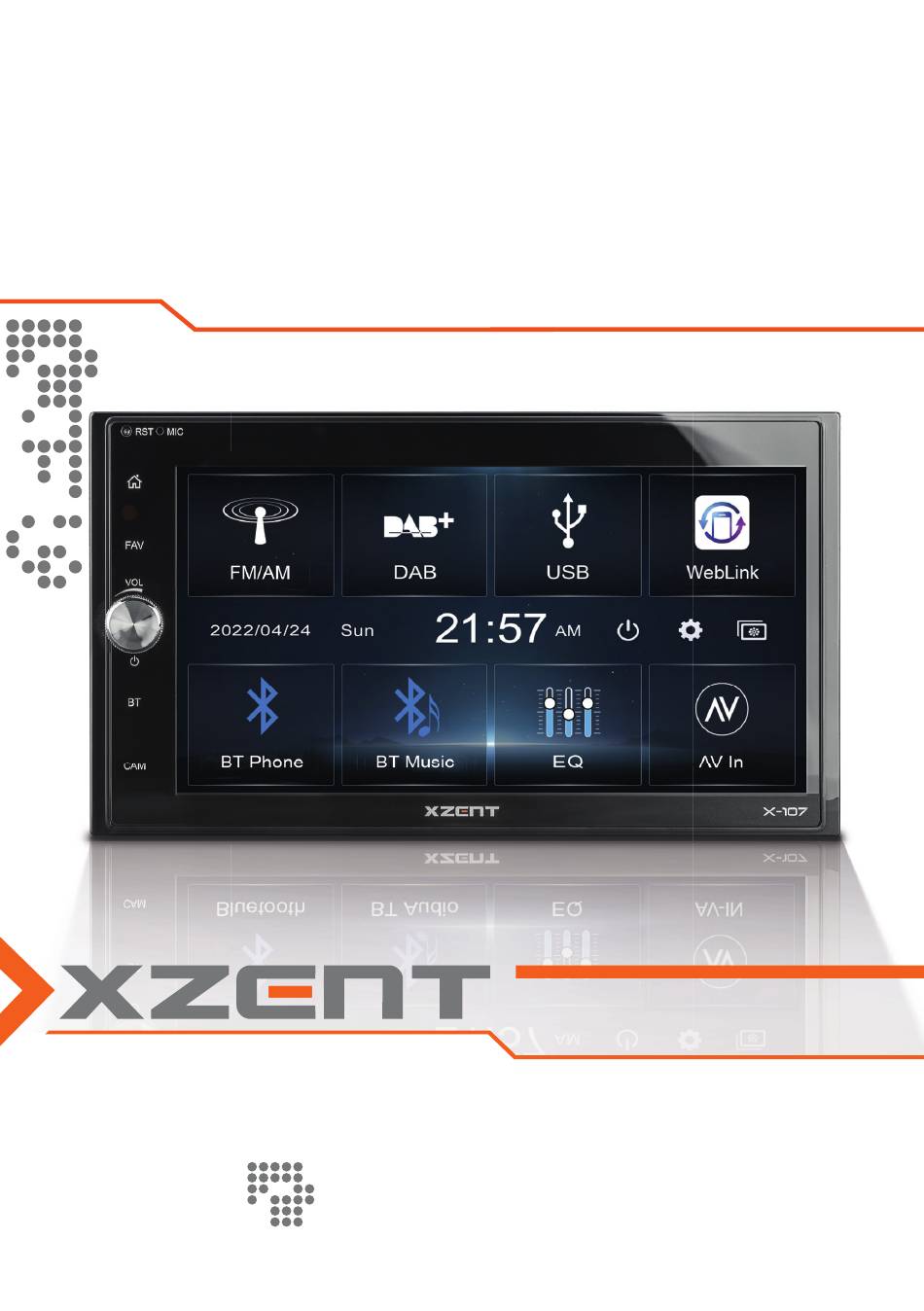

- Page 1 U S E R M A N U A L U S E R M A N U A L U S E R M A N U A L X -1 0 7 2-DIN Infotainer X-107...
-
Page 2: Table Of Contents
FRONT PANEL ■ Do not disassemble or alter the unit in any way because this will void your warranty. Do not attempt to repair or to service the unit yourself, but contact an authorized XZENT dealer instead. MAIN MENU ■ Use only original accessories which are designed and manufactured for the unit, otherwise you will risk damage. -
Page 3: Device Support, Software Updates And Maintenance
DEVICE SUPPORT, SOFTWARE UPDATES AND FRONT PANEL MAINTENANCE Software updates and improvements are provided via USB updates which can be downloaded from our website www.xzent.com Also customer care, FAQs and other helpful information can be found there. X-107 Operation buttons: Reset Press to perform a power reset. -
Page 4: Main Menu
Please keep in mind that in certain countries it is not legal to operate a smartphone while driving. XZENT is not liable for any problems or incorrect use of app-based content. Using connected cont- ent should respect your phones data plan to avoid additional costs. -
Page 5: Main System Settings
(MAIN SYSTEM) SETTINGS FM/AM Operation Buttons: Operation Buttons: Home Tap to open Main Menu. Home Tap to open Main Menu. Back Tap to return to previous menu. Seek Down Tap to step frequency down. Language Tap to select a different available language. Tap and hold to seek down. -
Page 6: Dab Tuner
DAB+ TUNER USB MODE AUDIO / VIDEO Operation Buttons: Operation Buttons: Home Home Tap to open Main Menu. Tap to open Main Menu. Preset Page Progress bar Tap to change Preset page (1 to 3). Tap position to jump to. FM Link Status Repeat/Random will show in case of signal quality issues an system performs DAB>FM Tap to toggle Repeat All, Repeat Single, Random Play. -
Page 7: Bluetooth Phone
BLUETOOTH PHONE BLUETOOTH MUSIC STREAMING Operation buttons: Operation buttons: 1. Home Tap to open Main Menu. 1. Home Tap to open Main Menu. 2. Keypad Tap to open keyboard to dial a number. 2. EQ Tap to open EQ menu. 3. -
Page 8: Av-In / Camera
AV-IN / CAMERA Operation buttons: 1. Home Tap to open Main Menu. 2. EQ Tap to open EQ Menu. In AV IN Source you can listen to audio from external AV/IN device. There are no touch control functions for this source. -
Page 9: Terms Of Warranty
Is XZENT liable for other defects or damage? Under this Warranty, XZENT warrants, for a period of 2 years, that the product is free from defects in material XZENT will repair or replace products, only if they are covered by the terms of this Warranty. XZENT is not and/or workmanship at the time of the original purchase. -
Page 10: Additional Information
ADDITIONAL INFORMATION TECNICAL SPECIFICATION VEHICLE COMPATIBILITY Every vehicle with a 2-DIN mounting slot. Adapter cables and installation kit may be required (not included in the scope of delivery). Electrical characteristics Power supply: +12 V DC against vehicle ground External protection against internal short-circuit: 15 A Mini-ANL fuse Operating currents* ACC off idle status: <5.0 mA Audio / video playback (VOL 20): ~ 1.40 A GPS mode with active route guidance (VOL 20): ~ 1.55 A GPS mode with active route guidance (VOL 40): ~ 3.80 A * @ 13.8 V operating voltage with front and rear 4 ohm loudspeaker connected to device Transmitters (max. - Page 11 ADDITIONAL INFORMATIONS Hereby, ACR Brändli + Vögeli AG declares that the type of radio equipment X-107 complies with the EU Legal Representative: 2014/53/EU Directive. The full text of the EU Declaration of Conformity is available at the following ACR S & V GmbH, Industriestrasse 35, D-79787 Lauchringen, Germany Internet address: www.xzent.com (see link „Product Conformity Documents“ in the footer of the page). http://productip.com/?f=1ff903...
