USER'S
MANUAL
- 1 -

FEATURE

- Dual band with maximum speed up to 5G 867Mbps and 2.4G 300Mbps.
- Weatherproof and build in lightning arrested withstand harsh outdoor conditions.
- Four 7dBi omnidirectional antennas eliminate Wi-Fi dead zones.
- High power amplifier for stronger signal transmission.
- Gigabit port provides faster connection.
- Passive PoE support for flexible deployment.
- Support AP/Router/Repeater/EasyMesh agent mode.
- MU-MIMO function lets the router talk to several devices simultaneously over the same
Wi-Fi band.

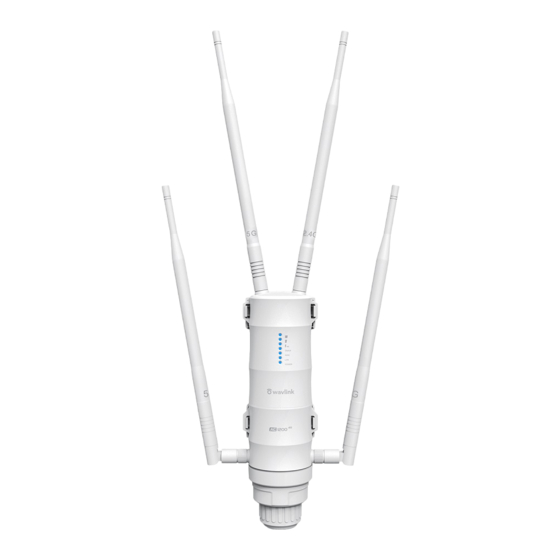

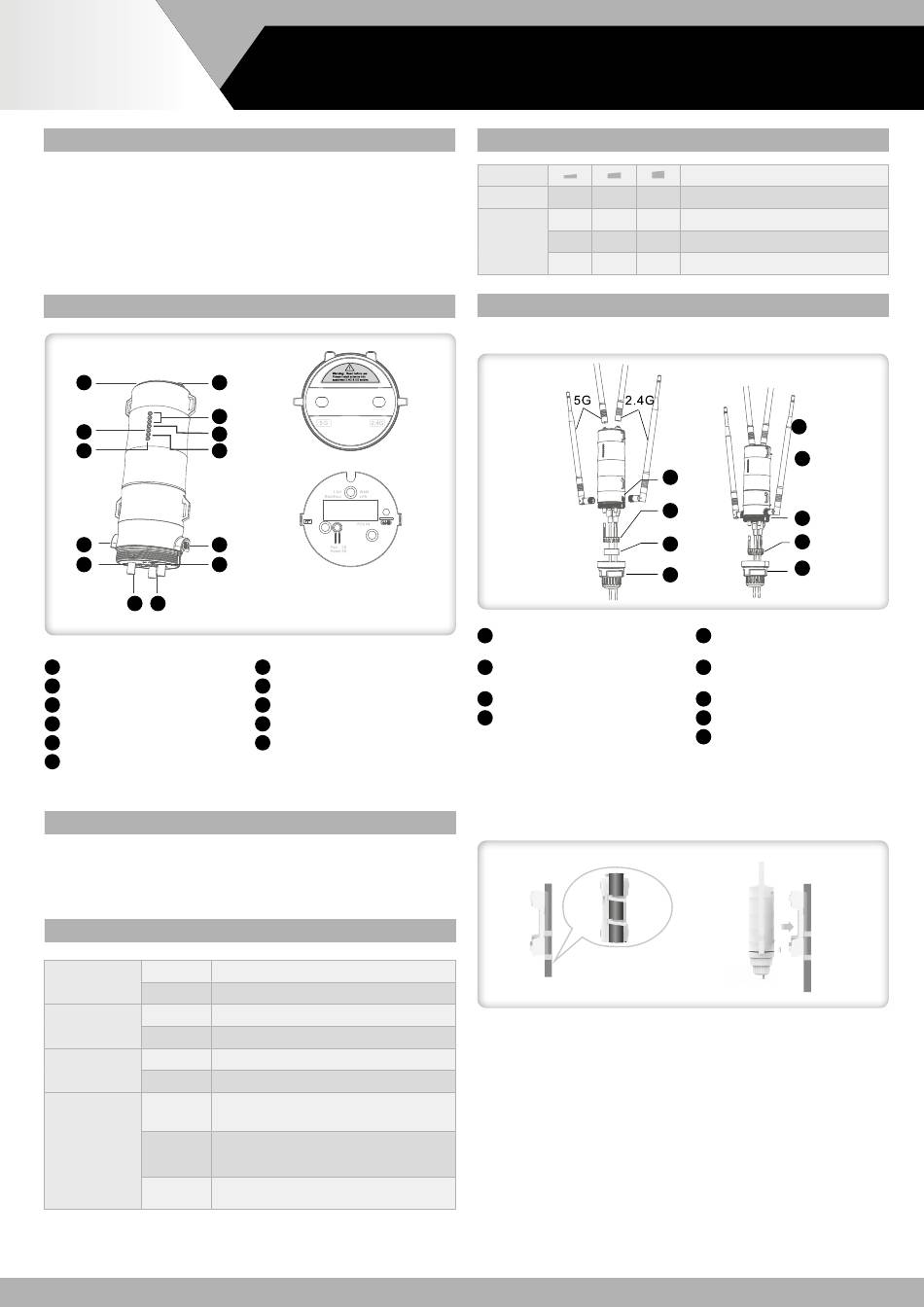

HARDWARE OVERVIEW

2
1
3
5
4
7
6
2
1
11
8
10
9
1
2.4G RP-SMA Antenna Connectors
2
S5G RP-SMA Antenna Connectors
3
3 x Wi-Fi Signal LEDs
4
Status LED
5
WAN/LAN LED
LAN Backhaul LED
6

DEFAULT PARAMETERS

Web:
http://wifi.wavlink.com
Default IP:
192.168.10.1
Login Password:
admin

LED INDICATORS

On
Power
Off
On
LAN/Backhaul
Off
On
WAN/LAN
Off
Fast flash
Status
SHOW flash
On
Top view
Bottom view
7
POWER LED
8
Reset/PAIR Button
9
LAN Backhaul Port
10
WAN (PoE IN)/LAN Port
Grounding Terminal
11
2.4G SSID:
WAVLINK-N XXXX
5G/AC SSID:
WAVLINK-AC XXXX
Wireless Password:
open
The device is powered on.
The device is not receiving electrical power.
The Ethernet port is connected.
The Ethernet port is disconnected.
The Ethernet port is connected.
The Ethernet port is disconnected.
Another router has not been connected when the
device is the repeater mode.
The another router has been connected but
the device has no access to the network in the
repeater mode.
The device keeps on in the AP mode;
The device can access the network normally.
AC1200 DUAL BAND HIGH-POWER
OUTDOOR ROUTER/AP/EXTENDER
WI-FI SIGNAL
Mode
AP
ON
ON
ON
ON
ON
ON
Repeater
ON
ON
OFF
ON
OFF
OFF

INSTALLATION

1. Please follow the installation steps when assembling the device.
Pass RJ45 cable through the spiral
1
cover
Pass RJ45 cable through the rubber
2
seal
Pass RJ45 cable through the holder
3
Connect the RJ45 cable to PoE IN/
4
WAN port
2. Install the device.
2.1 Firstly, fasten the device to somewhere firm, then install the device in the holder.
Remark
If you happen to live in the zone where lightning happens a lot, we suggest that you install
the device through grounding connection in order to strengthen the lightning-resistant
function.
TV LED/LCD
FLOOR STAND
Description
Wi-Fi signal output power 100%.
Better reception: signal 81%-100%.
Good reception: signal 60%-80%.
Weak reception: signal below 0-59%.
6
5
4
3
7
8
2
9
1
Spin 2.4G antenna into the 2.4G
5
external RP-SMA connector
Spin 5G antenna into the 5G external
6
RP-SMA connector
Screw the holder
7
Plug the rubber seal to the holder
8
Screw the spiral cover
9
