CAUTION: DO NOT tighten more than 2 full turns on each side. Over
tensioning the belt can cause unnecessary friction and wear and tear
on the belt, motor and electronics.

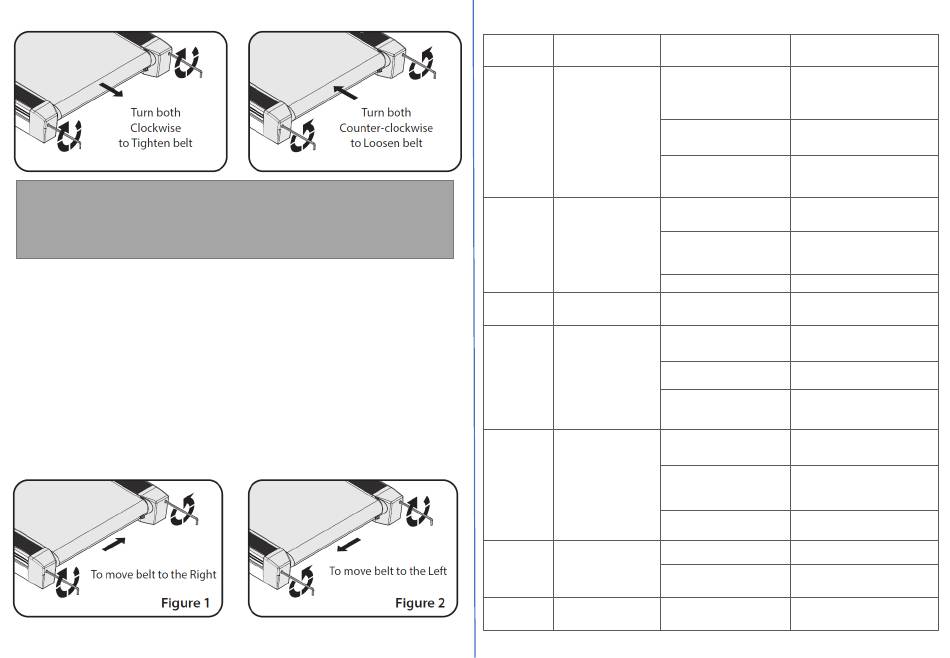

Belt Alignment

A. Press Start, then increase the treadmill speed to 3 mph (5 kph).
B. Stand behind the treadmill to see which way the belt is drifting.
C. If the belt drifts to the left, turn the left adjustment bolt 1/4 turn
clockwise and the right adjustment bolt 1/4 turn counter-clockwise.
(See FIG. 1)
D. If the belt drifts to the right, turn the left adjustment bolt 1/4 turn
counter-clockwise and the right adjustment bolt 1/4 turn clockwise.
(See FIG. 2)
E. Observe the alignment for two minutes. Repeat steps A-D as needed.

Troubleshooting

PROBLEM POSSIBLE CAUSE
Abnormal
communication
between the lower
E01
controller and the
console after powering
on.
Lower controller can't
E02
detect the voltage of
motor.
Lower control can't
E03
detect speed signal.
E04
Overvoltage protection.
E05
Over current protection
Driving power supply
E06
voltage is too low.
Without Safety key
E07
attached or failure
20
19
CHECKING CORRECTION
The console cables are not Connect the console cables
connected well. properly.
No signal output from the
Change the console.
console.
No signal output from the
Change the lower controller.
lower controller.
The motor cables are not Connect the motor cables
connected well. properly.
No voltage output or abnormal
voltage output from the lower Change the lower controller.
control to the motor.
Motor is out of order. Change the motor.
PWM drive circuit failure of
Change the lower controller.
lower control
The load of the treadmill The load on the treadmill must be
exceeds the rated working within the rated operational
voltage of the motor. voltage.
The treadmill motor works
Change the motor.
abnormally.
Detecting failure from the
lower controller to the motor Change the lower controller.
overvoltage.
The load of the treadmill The load on the treadmill must be
exceeds the rated working within the rated operational
current of the motor. current.
Wrong assembly of the motor
Check if the assembly of motor is
causes the resistance or
correct.
blocking of the motor.
Failure of lower control limiting
Change the lower controller.
current system.
Check the power supply line is
Voltage output is too low.
normal.
The lower controller can not
Change the lower controller.
detects the signal of the circuit.
Check safety key attached or
Install the safety key
not
