Summary of Contents for Westermann Sputnik I

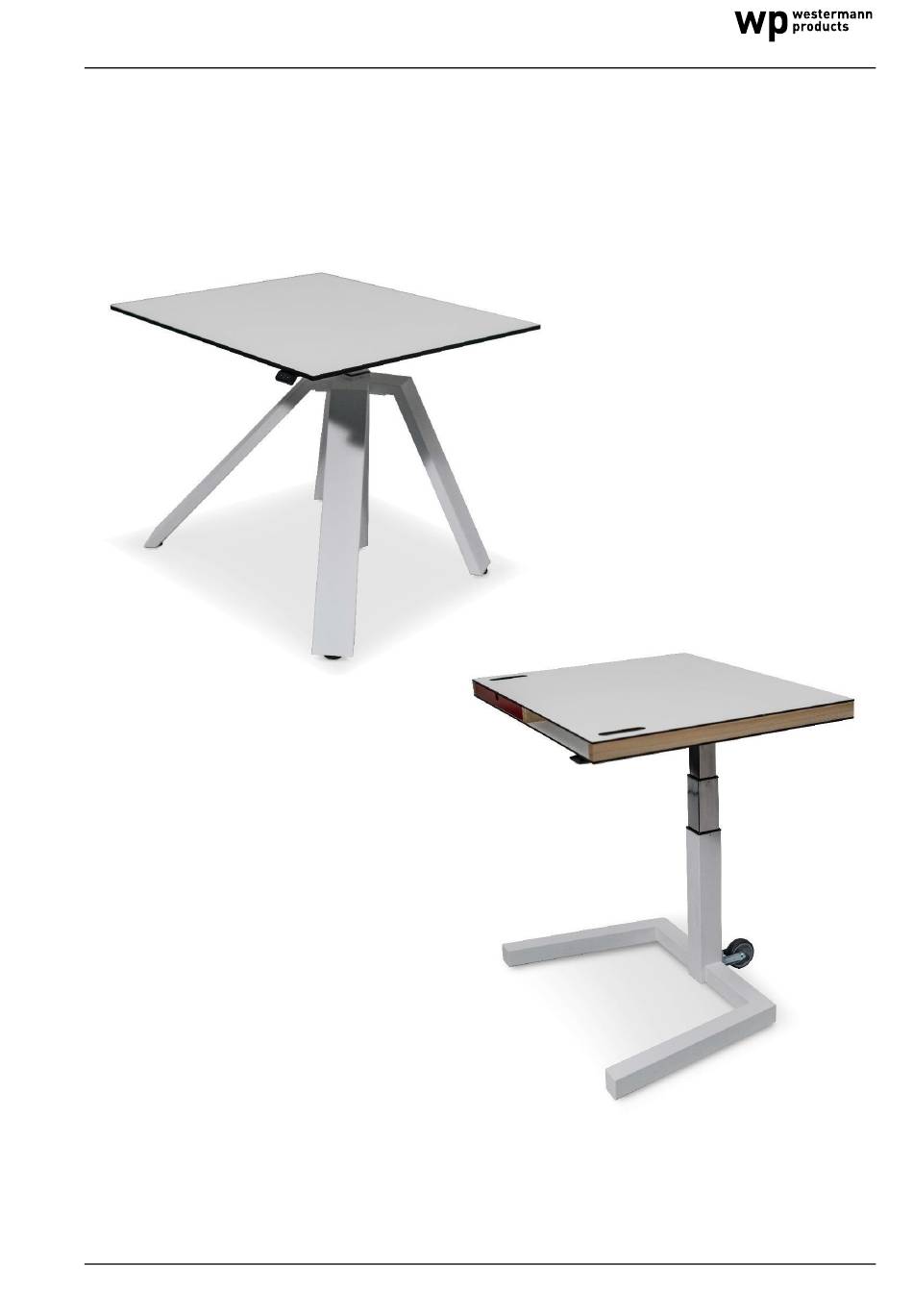

- Page 1 Operation Manual Sputnik I & Sputnik II pneumatically operated Version 02 – 2020.12 1/12...
-
Page 2: Table Of Contents
Changes to the table frame or improper use can affect safety, function and service life! This instruction manual is intended for temporary microworkstations Sputnik I and Sputnik II with gas spring. Due to different designs/types, illustrations may be different. -
Page 3: Intnded Use
The use of this sit-stand table for a purpose other than those mentioned above, e.g. as a lifting platform, seating, etc. is not allowed. The temporary microworkplaces Sputnik I + II are not permanent workplaces but are intended for temporary use of less than 8 hours. -
Page 4: Safety
Danger: Cleaning and user maintenance must not be carried out by children without supervision. Attention: Only use original accessories from Karl Westermann GmbH + Co. KG. The use of parts and components of third parties is prohibited! The use of unsuitable accessories may damage or destroy the table frame. -
Page 5: Setting Up
Attention: Gas springs must not be exposed to high temperatures (above 80°C). SETTING UP The Sputnik I and II tables are delivered fully assembled. Changes may only be made by authorized personnel. For the table to function properly, the installation site must meet the following conditions: •... - Page 6 When setting up, please note: • If the 'Sputnik I with wheels' is not rolled, all 4 rollers must always be locked via the locking lever located on the roller. • Ground unevenness can be compensated for in the Sputnik I without rollers by means of the height adjusters on each foot.
-
Page 7: Important Service Note
• If the 'Sputnik I with rollers' is not rolled, all 4 rollers must always be locked via the locking lever located on the roller IMPORTANT SERVICE NOTE Danger: Use only original accessories! These may only be installed by expert service personnel! Otherwise, you will lose warranty and guarantee claims. -
Page 8: Repairs
REPAIRS In the event of a technical defect in this device, please contact a customer service authorized by Maximum -load: max. 20 kg! Attention: In order to avoid malfunctions, all repairs may only be carried out by authorized service personnel. Attention: If components of this table frame are opened, there is a risk of malfunction. -
Page 9: Warranty
WARRANTY For these sit-stand tables we give a warranty for a period of 24 months. The warranty covers all material and production defects. The warranty is only valid under the condition that the tables have been used properly and professionally within the scope of the parameters described, that maintenance has been carried out correctly and that repairs have only been carried out by authorized service personnel. - Page 10 Lacquered wood surfaces / OSB The varnish protects the wood surface against contamination by a transparent, hard film. The wood surface is thus very well protected against the ingress of impurities. The smooth surface allows easy and easy maintenance. However, liquids should be picked up immediately with a soft cloth and wiped dry.
-
Page 11: Assembly
ASSEMBLY We deliver the Sputnik I and Sputnik II tables only assembled. There is no assembly work to be done. OPERATION Adjust desk height The height adjustment is operated by means of the release lever mounted under the table top. -
Page 12: Troubleshooting
TROUBLESHOOTING In the event of faults or malfunctions, please check whether the Sputnik has been operated in accordance with the operating instructions. Check the following points in particular: • If the maximum permissible load is observed? • Is there a one-sided load on the table top? •...
