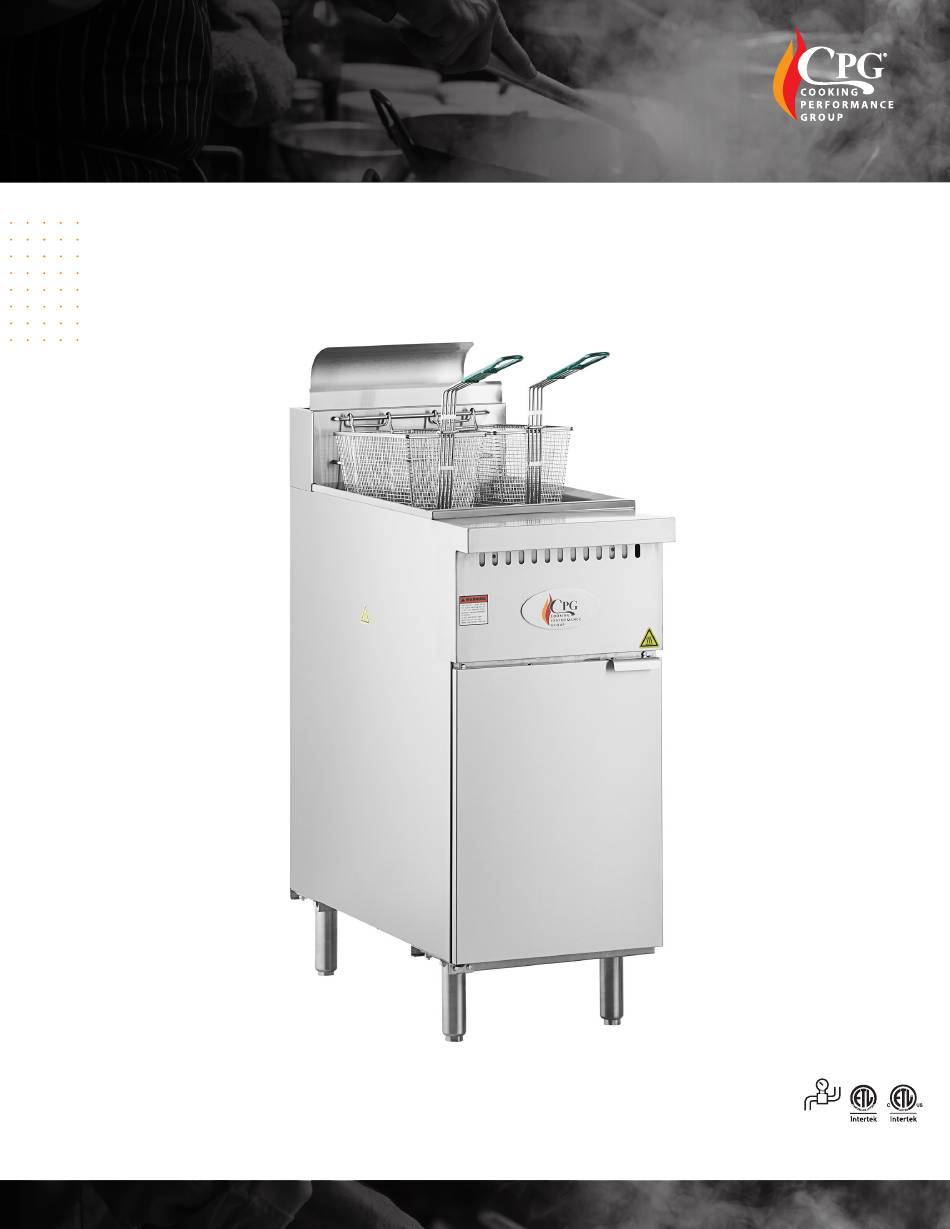

Service Manual
351FFOP40N, 351FFOP50N, 351FFOP40L, 351FFOP50L
Open Pot Fryers
NOTICE
This manual is for a certified service technician and should not be used by those who are not properly trained.
This manual cannot cover all possible conditions that may occur and is not intended to be all encompassing.
You should read this manual in its entirety and the specific repair you wish to do prior to starting the repair.
This will allow you to determine if you have the correct tools, instruments, and skills to perform the procedure.
www.cookingperformancegroup.com
¾"
REVISED 06/2022
1
Advertisement
Table of Contents
Related Manuals for CPG 351FFOP40N
Summary of Contents for CPG 351FFOP40N
- Page 1 Service Manual 351FFOP40N, 351FFOP50N, 351FFOP40L, 351FFOP50L Open Pot Fryers NOTICE This manual is for a certified service technician and should not be used by those who are not properly trained. This manual cannot cover all possible conditions that may occur and is not intended to be all encompassing.
-
Page 2: Table Of Contents
Service Manual 351FFOP40N, 351FFOP50N, 351FFOP40L, 351FFOP50L Contents Troubleshooting ......... .3 Part Testing . -
Page 3: Troubleshooting
User Manual Service Manual 351CLCPG15NL, 351CLCPG24NL, 351CLCPG36NL, 351FFOP40N, 351FFOP50N, 351FFOP40L, 351FFOP50L 351CLCPG48NL, 351CLCPG60NL, 351CLCPG72NL Trouble Shooting PROBLEM POSSIBLE SOLUTION • Ensure gas is the correct type for the unit • Ensure gas supply is turned ‘ON’ • Ensure gas supply is at the correct pressure •... -
Page 4: Part Testing
Service Manual 351FFOP40N, 351FFOP50N, 351FFOP40L, 351FFOP50L Part Testing FIG. 1 FIG. 2 CAUTION: Components Can Be Hot Follow these pre-maintenance steps before servicing your Cooking Performance Group Floor Fryer PRE-MAINTENANCE: Turn thermostat to the “OFF” FIG. 3 FIG. 4 position (Fig. 1) Turn knob, on combination gas valve, to the “OFF”... - Page 5 User Manual Service Manual 351CLCPG15NL, 351CLCPG24NL, 351CLCPG36NL, 351FFOP40N, 351FFOP50N, 351FFOP40L, 351FFOP50L 351CLCPG48NL, 351CLCPG60NL, 351CLCPG72NL Manifold pressure check FIG. 7 FIG. 8 With Thermostat in “OFF” position and gas combination valve in the “OFF” position Remove pressure tap plug from manifold with 7/16”...
-
Page 6: Thermostat (200-400°F)
Service Manual 351FFOP40N, 351FFOP50N, 351FFOP40L, 351FFOP50L THERMOSTAT (200-400°F) FIG. 9 FIG. 10 • Audible click can be heard when turned ‘ON’ / ‘OFF’ • If no click can be heard - Replace Thermostat • Disconnect wires from thermostat, check continuity... -
Page 7: Part Replacement
User Manual Service Manual 351CLCPG15NL, 351CLCPG24NL, 351CLCPG36NL, 351FFOP40N, 351FFOP50N, 351FFOP40L, 351FFOP50L 351CLCPG48NL, 351CLCPG60NL, 351CLCPG72NL GAS COMBINATION VALVE FIG. 11 FIG. 12 Follow pre-maintenance steps on page 4 Remove wiring from combination valve for thermostat and thermopile connections (Fig. 11A) Remove pilot light gas hose connection (Fig. -
Page 8: High Limit Thermostat (450°F)
Service Manual 351FFOP40N, 351FFOP50N, 351FFOP40L, 351FFOP50L HIGH LIMIT THERMOSTAT (450°F) FIG. 17 FIG. 18 Follow pre-maintenance steps on page 4 Remove 2 hex head screws from side of mounting bracket, 8mm socket (Fig. 18) Remove wiring from high limit thermostat, note locations to move to new high limit thermostat (Fig. -
Page 9: Pilot Light
User Manual Service Manual 351CLCPG15NL, 351CLCPG24NL, 351CLCPG36NL, 351FFOP40N, 351FFOP50N, 351FFOP40L, 351FFOP50L 351CLCPG48NL, 351CLCPG60NL, 351CLCPG72NL PILOT LIGHT FIG. 24 FIG. 25 Follow pre-maintenance steps on page 4 Remove two hex head screws that hold the pilot light bracket in place (Fig. 24 ) -
Page 10: 351Ffop40L/N
Service Manual 351FFOF40N, 351FFOP40L, 351FFOP50N, 351FFOP50L Orifice Sizes 351FFOP40L/N LIQUID PROPANE ORIFICE SIZING NATURAL GAS ORIFICE SIZING ORIFICE SIZE ELEVATION (FEET) ORIFICE SIZE ELEVATION (FEET) Sea Level - 2,000 Sea Level - 3,000 2,000 - 4,000 3,000 - 8,000 4,000 - 6,000 8,000 - 10,000 6,000 - 7,000 7,000 - 9,000... -
Page 11: Wiring Diagram
Service Manual 351FFOP40N, 351FFOP40L, 351FFOP50N, 351FFOP50L Wiring Diagram Limit TH/TP T-stat www.cookingperformancegroup.com... -
Page 12: Parts Diagram
Service Manual 351FFOP40N, 351FFOP40L, 351FFOP50N, 351FFOP50L Parts Diagram 351FFOP40L/N ITEM# DESCRIPTION PART# Thermostat (200˚F - 400˚F) 351200728 High Limit Thermostat (450˚F) 351200737 Thermostat Knob 351103628 Pilot Light tubing 351400070 Pilot Light, Propane 351201302019 Pilot Light, Natural 351201302028 Thermopile 351700237 Combination Valve, Propane... -
Page 13: 351Ffop50L/N
Service Manual 351FFOP40N, 351FFOP40L, 351FFOP50N, 351FFOP50L Parts Diagram 351FFOP50L ITEM# DESCRIPTION PART# Thermostat (200˚F - 400˚F) 351200728 High Limit Thermostat (450˚F) 351200737 Thermostat Knob 351103628 Pilot Light Tubing 351400070 Pilot Light, Propane 351201302019 Pilot Light, Natural 351201302028 Thermopile 351700237 Combination Valve, Propane...
