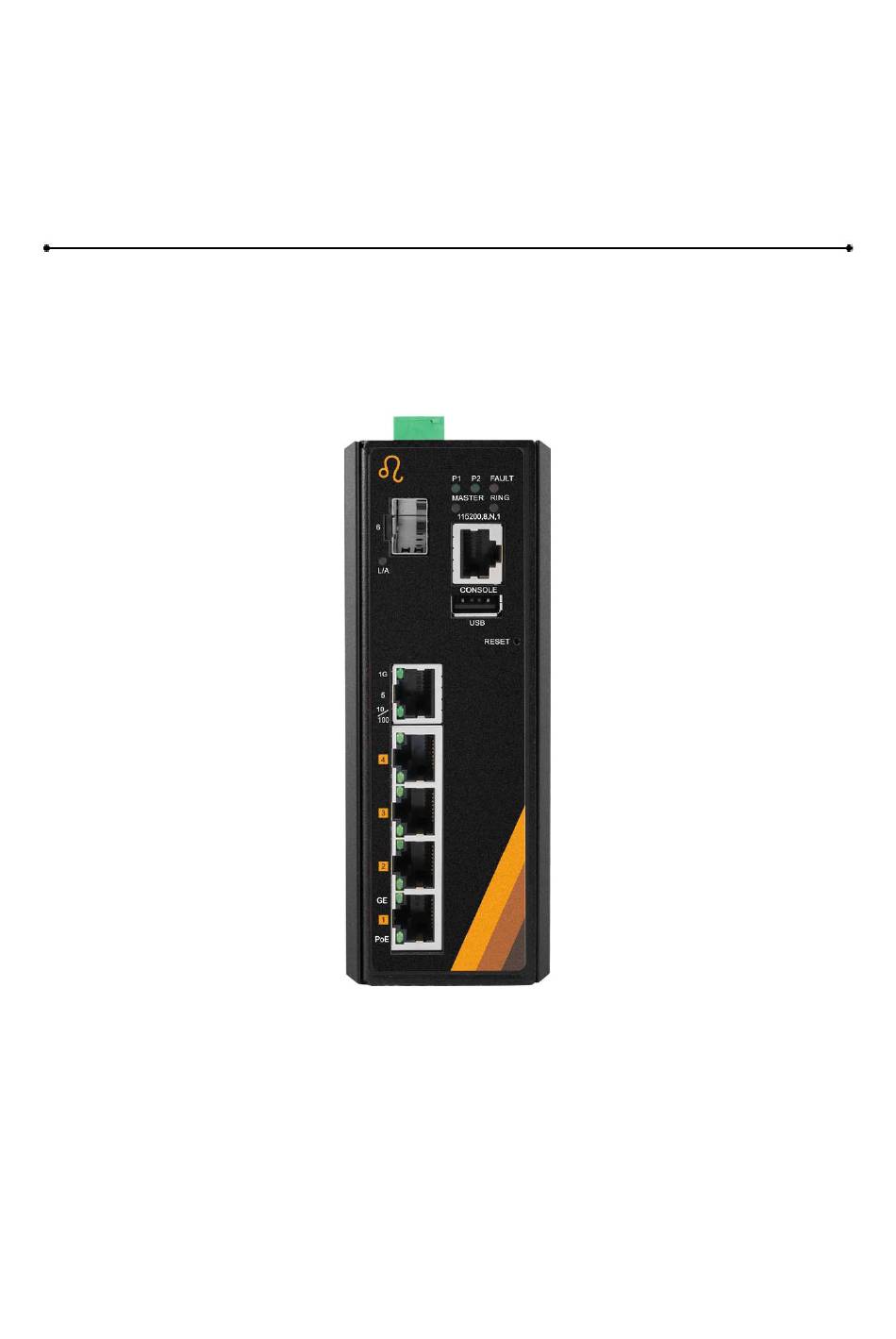

- Page 1 LEONTON PG5-0601-SFP Series (PG5-0601-SFP / PG5-0601-SFP-T) User Manual...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 FCC Notice This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
- Page 4 Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en présence d'interférences radio. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 5: Table Of Contents
Contents Overview ......................................1 Key Features ..................................... 1 Package Contents................................... 2 Safety Precaution ................................... 2 Hardware Description ..................................3 Physical Dimensions................................3 Front Panel ....................................4 Top View..................................... 4 LED Indicators ..................................5 Ethernet Ports ................................ -
Page 6: Overview
Overview This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit managed Ethernet switch series has 5* 10/100/1000TX with 4 IEEE 802.3at compliant ports (30W/port) and 1 dual-rate (100/1000) SFP slots, suitable for applications that require high bandwidth and long distance communication. -
Page 7: Package Contents
Package Contents 1 - PG5-0601-SFP(-T) product • 2 - Wall mounting brackets and screws • 1 - Quick installation guide • 1 - RJ45 to DB9 Serial Console cable • Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 8: Hardware Description
Hardware Description Physical Dimensions Figure 2.1, below, shows the physical dimensions of PG5-0601-SFP series. (W x D x H) is 54mm x 99mm x 142mm Figure 2.1: PG5-0601-SFP series Physical Dimensions... -
Page 9: Front Panel
Figure 2.2: The Front Panel of PG5-0601-SFP series Top View Figure 2.3, below, shows the top panel of the PG5-0601-SFP series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (48~55VDC). Figure 2.3: Top Panel View of PG5-0601-SFP series... -
Page 10: Led Indicators
LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. Color Description Power input 1 is active... -
Page 11: Ethernet Ports
Green Supplying power to the powered-device (LAN Port 1-4) Not connected to a Powered Device Table 2.1: LED Indictors for PG5-0601-SFP series Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. -
Page 12: Cabling
1000BASE-T RJ-45 Pin Assignments (Table 2.3) Crossover Cable Straight Through Cable Pin Number / Signal Pin Number / Signal Pin Number / Signal Pin Number / Signal 1 / TP0+ 3 / TP1+ 1 / TP0+ 1 / TP1+ 2 / TP0- 6 / TP1- 2 / TP0- 2 / TP1-... - Page 13 Figure 2.4: Transceiver to the SFP Module Figure 2.5: Transceiver Inserted Step 2 Insert the fiber cable of the LC connector into the transceiver as shown below in Figure 2.6. Figure 2.6: LC Connector to the Transceiver To remove the LC connector from the transceiver, please follow the steps shown below: Step 1 Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.7 Figure 2.7: Remove LC Connector...
-
Page 14: Wiring The Power Inputs
below in Figure 2.8 Figure 2.8: Pull Out from the SFP Module Wiring the Power Inputs Caution: Please follow the below steps to insert the power wire. Attention: Veuillez suivre les étapes ci-dessous pour insérer le câble d'alimentation. Step 1 Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.9. -
Page 15: Wiring The Fault Alarm Contact
Step 2 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.10. Figure 2.10: Power Terminal Block Caution: Only use copper conductors, 125°C, tighten to 5 in-lbs. The wire gauge for the terminal block should range between 18~20 AWG. Attention: Utilisez uniquement des conducteurs en cuivre, 125°C, serrez à... - Page 16 If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm. Attention: Le calibre des fils du bornier doit être compris entre 12 et 24 AWG. Si vous n'utilisez qu'une seule source d'alimentation, jumelez les broches 1 à 5 et les broches 2 à 6 pour éliminer l'alarme de panne de courant.
-
Page 17: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. Figure 3.1: The Rear Side of the Switch and DIN-Rail Bracket Follow the steps below to learn how to hang the industrial Ethernet switch. - Page 18 Figure 3.2: Insert the Switch on the DIN-Rail Step 4 Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Figure 3.3: Stable the Switch on DIN-Rail Step 5 Check if the bracket is mounted tightly on the rail. Step 6 To remove the industrial Ethernet switch from the rail, do the opposite from the above steps.
-
Page 19: Wall Mounting - In The Industrial Control Panel
Wall Mounting - in the industrial control panel Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Step 1 Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. -
Page 20: Hardware Installation
Hardware Installation Installation Steps This section will explain how to install PG5-0601-SFP series. Installation Steps Step 1. Unpack the industrial Media Converter from the original packing box. Step 2. Check if the DIN-Rail bracket is screwed on the industrial Media Converter. -
Page 21: Maintenance And Service
Maintenance and Service If the device requires servicing of any kind, the user is required to disconnect and remove it • from its mounting. The initial installation should be done in a way that makes this as convenient as possible. Voltage/Power lines should be properly insulated as well as other cables. -
Page 22: Trouble Shooting
● If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be ◆ resolved.
