- Page 1 ⚫ PG5-2012-SFP ⚫ PG5-2012-SFP-T...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en présence d'interférences radio. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
CONTENT OVERVIEW ........................... 1 Key Features ................................. 1 Package Contents ............................... 2 Safety Precaution ................................ 2 HARDWARE DESCRIPTION ...................... 3 Physical Dimensions ..............................3 Front Panel ..................................4 Top View ..................................4 LED Indicators ................................5 Ethernet Ports ................................6 Reset Button ................................. -
Page 5: Overview

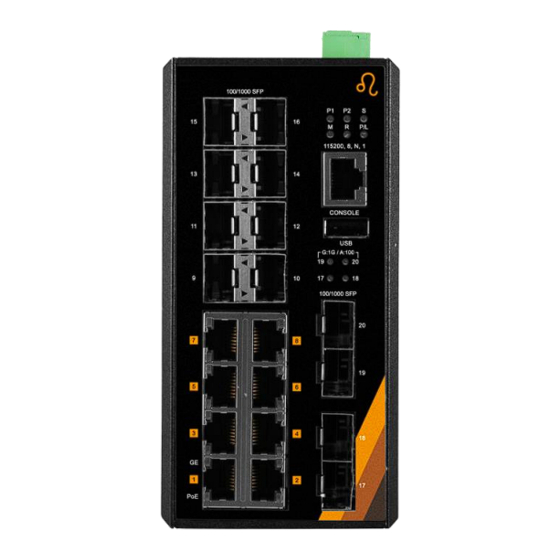

OVERVIEW This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit POE+ managed Ethernet switch series has 8*10/100/1000Tx with 8*IEEE 802.3af/at compliant PoE (30W/port), and 12*100/1000 Base-(F)X SFP Slots, suitable for applications that require high bandwidth and long-distance communication. -
Page 6: Package Contents
Package Contents ⚫ 1 - PG5-2012-SFP(-T) - Unit weight: 1.562 kg (3.44 lbs.), Shipping weight: 1.902 kg (4.19 lbs.) ⚫ 2 - Wall mounting brackets and screws ⚫ 1 - Quick installation guide ⚫ 1 - RJ45 to DB9 Serial Console cable... -
Page 7: Hardware Description
HARDWARE DESCRIPTION Physical Dimensions Figure 2.1, below, shows the physical dimensions of PG5-2012-SFP series. (W x H x D) is 71.5mm x 142mm x 99mm Figure 2.1: Physical Dimensions... -
Page 8: Front Panel
Figure 2.2: The Front Panel Top View Figure 2.3, below, shows the top panel of the PG5-2012-SFP series switch that is equipped with two 4-pin removal terminal block connectors for dual DC power inputs (48-55VDC). Figure 2.3: Top Panel View... -
Page 9: Led Indicators
LED Indicators There are LED light indicators located on the front panel of the industrial switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 10: Ethernet Ports
Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 11: Reset Button
Reset Button There is a “reset” button located on the top panel of the industrial Ethernet switch that helps users to reboot or restore default by pressing the button for different seconds. Please refer to Table 2.4 for the timing and function. -
Page 12: Cabling
Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications. - Page 13 To remove the LC connector from the transceiver, please follow the steps shown below: Step 1 Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.7 Figure 2.7: Remove LC Connector Step 2 Push down the metal clasp and pull the transceiver out by the plastic part as shown below in Figure 2.8...
-
Page 14: Wiring The Power Inputs
Wiring the Power Inputs Caution: Please follow the below steps to insert the power wire. Attention: Veuillez suivre les étapes ci-dessous pour insérer le câble d'alimentation. Step 1 Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.9. -
Page 15: Relay Contact And Digital Input
Relay Contact and Digital Input Relay Contact The relay contact is in one of the terminal block connectors as the picture shows below in Figure 2.11. By inserting the wires, it will detect the fault status including power failure or DI Event, and port link failure (managed industrial switch only) and form a normally open circuit. -
Page 16: Grounding Note
Grounding Note Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown blow in Figure 2.12. Figure 2.12: Grounding screw symbol Caution: Using a shielded cable achieves better electromagnetic compatibility. -
Page 17: Mounting Installation
MOUNTING INSTALLATION DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet Switch from the factory. If the DIN-Rail is not on the industrial Ethernet Switch, please see Figure 3.1 to learn how to install the DIN-Rail on the Switch. Figure 3.1: The Rear Side of the Switch and Wall Mounting Bracket Follow the steps below to learn how to hang the industrial Ethernet switch. - Page 18 Step 4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Figure 3.3: Stable the Switch on DIN-Rail Step 5. Check if the bracket is mounted tightly on the rail. Step 6. To remove the industrial Ethernet switch from the rail, do the opposite from the above steps.
-
Page 19: Wall Mounting
Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Step 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. Step 2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch. -
Page 20: Hardware Installation
HARDWARE INSTALLATION Installation Steps This section will explain how to install PG5-2012-SFP series. Installation Steps Step 1. Unpack the industrial Switch from the original packing box. Step 2. Check if the DIN-Rail bracket is screwed on the industrial Switch. •... - Page 21 Caution: If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Attention: Si l'équipement est utilisé d'une manière non spécifiée par le fabricant, la protection fournie par l'équipement peut être altérée. Caution: The installation that the safety to any system incorporating the equipment is the responsibility of the assembler of the system.
-
Page 22: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be resolved. ◆ ●...
