Hunza CAT/HP Installation Instructions

High Power Catenary Mount
INSTALLATION INSTRUCTIONS
IMPORTANT! TO MEET HUNZA'S BLACK LABEL WARRANTY,* PLEASE READ BEFORE INSTALLING THE FIXTURE.
PLEASE NOTE: THESE INSTRUCTIONS MUST NOT CONTRAVENE YOUR LOCAL ELECTRICAL AUTHORITY REGULATIONS,
WITH WHICH ALL INSTRUCTIONS HEREIN MUST COMPLY. PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING: DO NOT connect the secondary side (output) of a live driver to
the fixture, this will cause a spike in voltage that can damage the LED. When
connecting or disconnecting the fitting always insure the 120/240V power supply
is disconnected.
WARNING: When using a photocell and/or timer we recommend using devices
with relay outputs as opposed to electronic. The high frequency of electronic
devices can lead to failure of the LED driver.
WARNING: If the mounting surface is to be "acid washed" the fixtures must be
removed prior to the process to avoid damage to the fixture and its fittings.

Installation Guide

Step 1: Mount the Luminaire

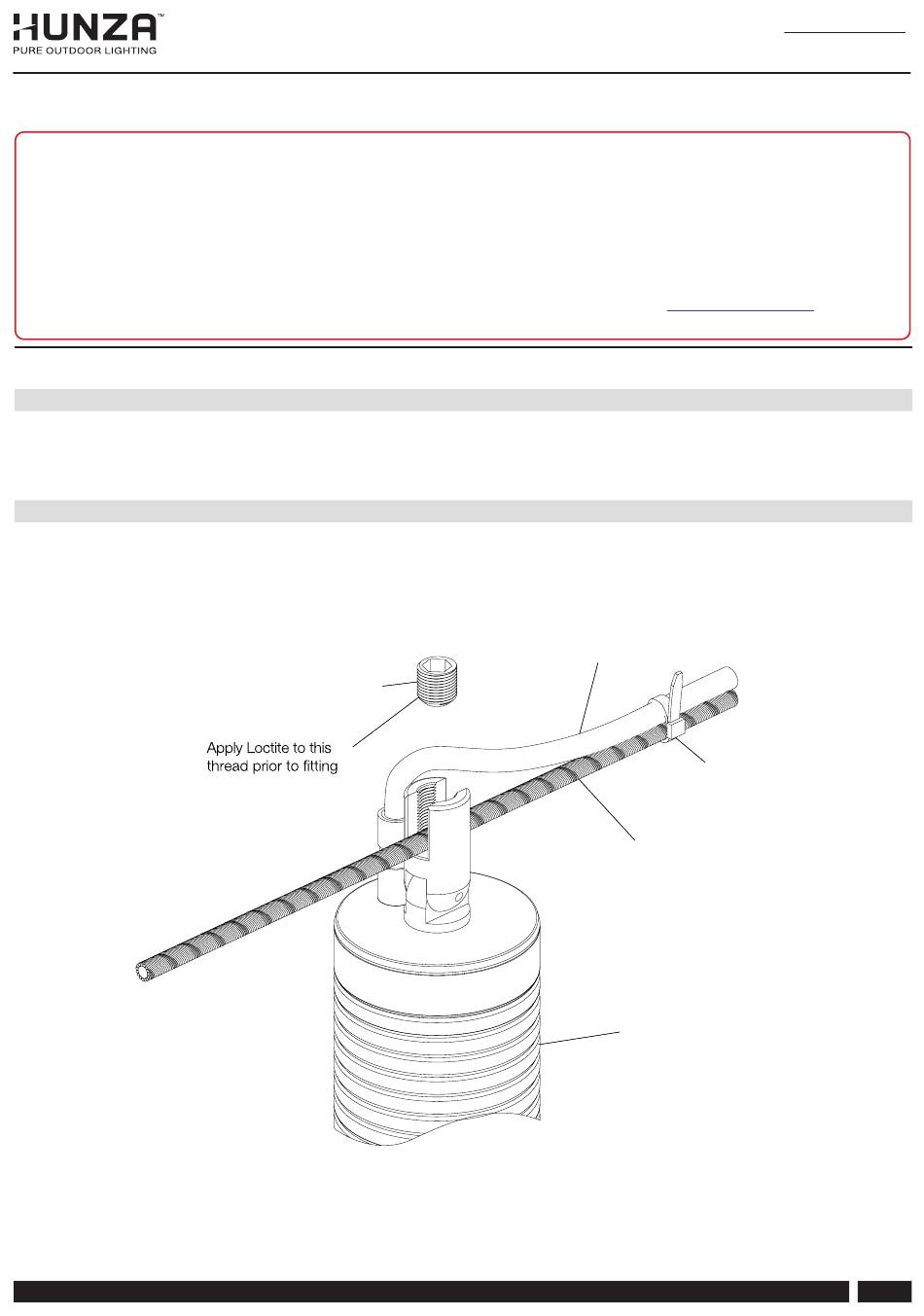

• Attach the luminaire to the wire or steel rod as shown in figure 1.
IMPORTANT: Apply Loctite to the thread on the grub screw in order to ensure that it will remain secure.
• Tighten the grub srew down onto the wire or rod.
• Secure the cable to the wire or rod as shown with cable ties.
Disclaimer: These installation instructions do not cover the engineering recquired for the stainless wire or rod catenary system required to suspend the fixture.

Step 2: Make Wire Connections

• Make waterproof connections, please refer to wiring guide.
Figure 1.
©Copyright 2023. This document contains proprietary information of Hunza™. Its receipt or possession does not convey any rights to reproduce or disclose its content.
CAT/HP Aug 2023 V2
M12 Grub Screw
Hunza-High-Power-Catenary-Mount_CAT-HP_Installation-Instructions-International
WATERPROOFING FIXTURES: Ensure the fixture is fixed in place and ensure a
waterproof seal is made between the fixture and surface. Ensure that installation
on exteriors meets local authority regulations.
WATERPROOFING CONNECTIONS:
luminaire, input cables and/or dimming cable. A non waterproof connection will
allow water to ingress into the power supply and/or fixture head which can lead
to failure.
*T&C's apply. See website for details:
Cable
Luminaire
HUNZA
PURE LED INTERNATIONAL
Make sure to waterproof connections to the
hunzalighting.com/warranty
Cable Ti e
Catenary Wire or
Steel Rod
®
1
