Hunza SAFETOUCH 150 LED Installation Instructions

SAFETOUCH 150 LED
INSTALLATION INSTRUCTIONS
NOTE: THESE INSTRUCTIONS MUST NOT
CONTRAVENE YOUR LOCAL ELECTRICAL AUTHORITY
REGULATIONS, WITH WHICH ALL INSTRUCTIONS
HERE IN MUST COMPLY.
PLEASE KEEP INSTRUCTIONS FOR FUTURE
REFERENCE.

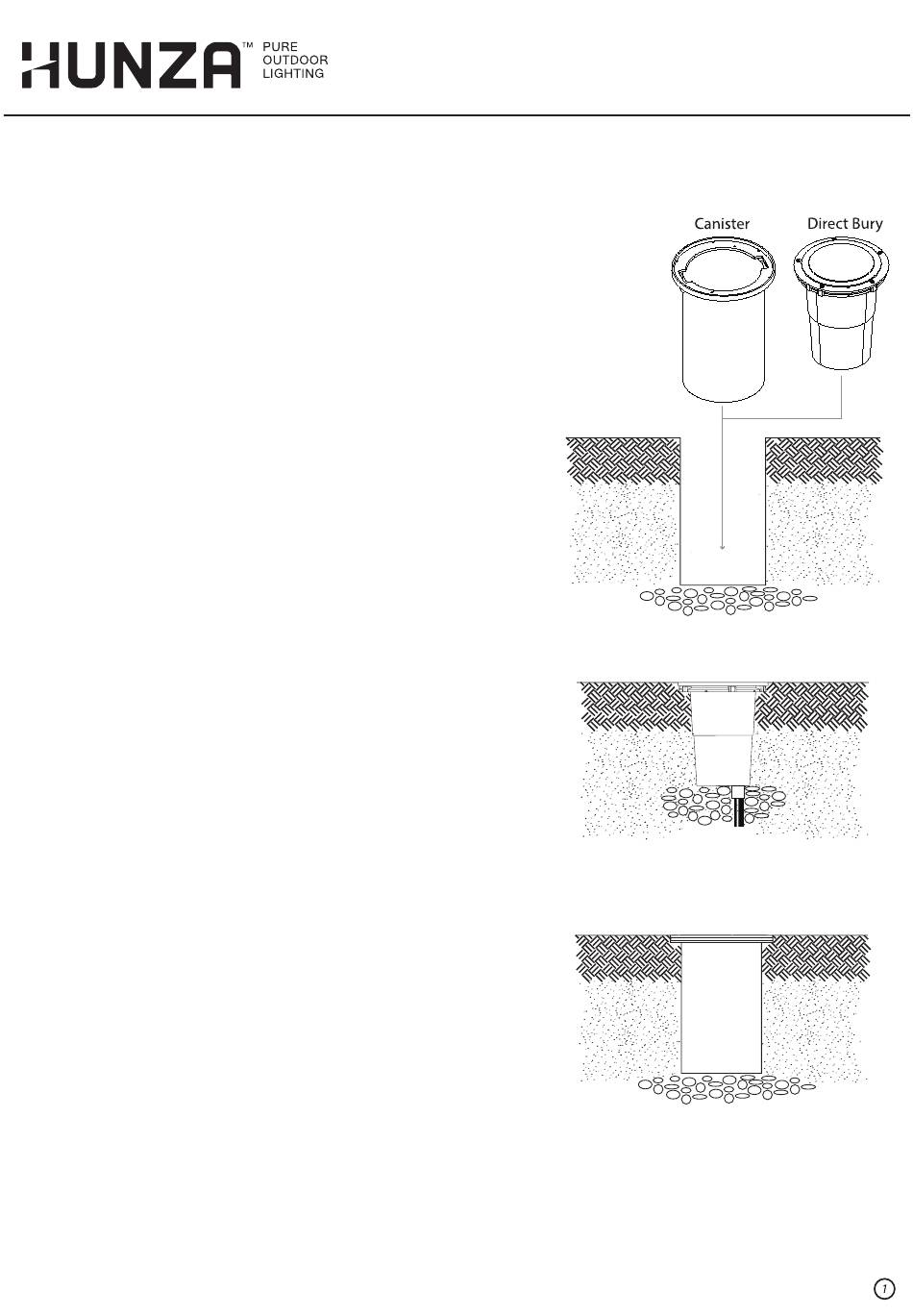

Remove the complete fixture from the packaging. If the canister
and luminaire are to be installed separately detach the luminaire
from the canister and place it back in the packaging and store
securely.
If not discard the packing in an environmentally friendly way.
Dig a hole 30cm (12") diameter and 40cm (16")Deep. Place
drainage material in the bottom of the hole to drain away water and
stop water level build up.

DIRECT BURY OPTION

For Direct bury. Make a waterproof connection with the Input
cables.
Place the luminaire into the hole. Make sure the flange is flush
with the ground level and then back fill around the luminaire.
Compact the surrounding substrate to ensure good heat
conductivity. Place drainage material in the bottom of the hole to
drain away water and stop water level build up.

CANISTER OPTION

Sit mounting canister into the hole. Make sure that the top of the
canister is flush and level with the finished floor or ground level
(see Fig. 2a).
Draw the power supply cable up through the centre of the canister
ready for connection to the luminaire.
Place blue flange protector into the top of the canister and press
firmly into place. This will protect the bronze or stainless steel
flange as well as stopping debris filling the canister. If grout is to be
used with tiles etc. then remove the flange protector before grout-
ing is started.
NOTE: Do not backfill with stones, scoria or any material that
will leave air gaps next to the canister.
Concrete is strongly recommended to backfill the canister
hole. Concrete will conduct away 40% more heat than soil.
(See Fig. 1).
(see Fig. 2).
Fig. 1
Fig. 2
Fig. 2a
