Hunza TM/HP Installation Instructions

High Power Tree Mount
INSTALLATION INSTRUCTIONS
IMPORTANT! TO MEET HUNZA'S BLACK LABEL WARRANTY,* PLEASE READ BEFORE INSTALLING THE FIXTURE.
PLEASE NOTE: THESE INSTRUCTIONS MUST NOT CONTRAVENE YOUR LOCAL ELECTRICAL AUTHORITY REGULATIONS,
WITH WHICH ALL INSTRUCTIONS HEREIN MUST COMPLY. PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING: DO NOT connect the secondary side (output) of a live driver to
the fixture, this will cause a spike in voltage that can damage the LED. When
connecting or disconnecting the fitting always insure the 120/240V power supply
is disconnected.
WARNING: When using a photocell and/or timer we recommend using devices
with relay outputs as opposed to electronic. The high frequency of electronic
devices can lead to failure of the LED driver.
WARNING: If the mounting surface is to be "acid washed" the fixtures must be
removed prior to the process to avoid damage to the fixture and its fittings.

Installation Guide

Step 1: Choose A Suitable Location

• Select an appropriate position and surface to install the luminaire. Consider tree growth and potential obstructions.

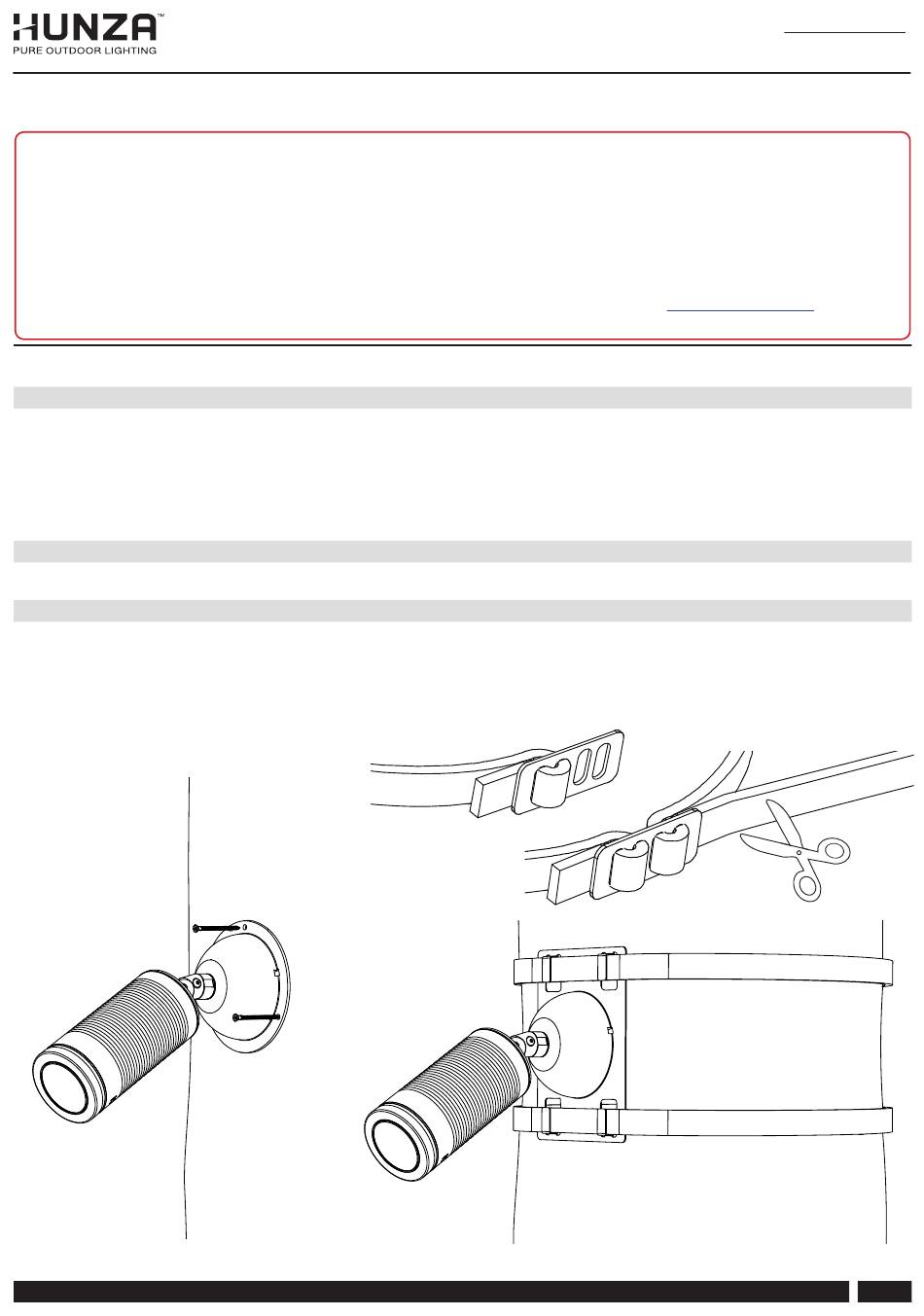

• FOR THE TREE MOUNT LIGHT WITH BOLTS, Run the supply cable up the tree to desired position and fit plastic dome and luminaire to the tree using the three
machine screws provided (fig.1).
• FOR THE DOUBLE STRAP HOOK TREE MOUNT, the maximum circumference of the tree is 800mm. Start by inserting one strap into one side of the buckle (fig. 2). Then
wrap around the tree on a smaller circumference than the final installation point; this allows for tautness. Attatch the other end of the strap into the buckle, move to the
final installation point, pull tightly and then cut the strap to length (fig.3). Repeat with the other strap and buckle. Once both straps are in place, hook the bracket and
light onto the straps (fig.4).

Step 2: Make Wire Connections

• Make waterproof connections, please refer to wiring guide.
IMPORTANT: For 110/240V (Retro) connections the fixture must be grounded.

Step 3: Install Glare Guard/Snoot (Optional)

• Carefully remove lens ring making sure not to drop the glass lens and cause damage to it, keeping gasket in place.
• Hold the body of luminaire tightly and screw Glare Guard/Snoot ring onto luminaire.
• Still holding the body of the luminaire tightly rotate Glare Guard/Snoot to desired position.
Fig 1.
©Copyright 2023. This document contains proprietary information of Hunza™. Its receipt or possession does not convey any rights to reproduce or disclose its content.
TM/HP Aug 2023 V2
Fig 2.
Hunza-High-Power-Tree-Mount_TM-HP_Installation-Instructions-International
WATERPROOFING FIXTURES:
waterproof seal is made between the fixture and surface. Ensure that installation
on exteriors meets local authority regulations.
WATERPROOFING CONNECTIONS:
luminaire, input cables and/or dimming cable. A non waterproof connection will
allow water to ingress into the power supply and/or fixture head which can lead
to failure.
*T&C's apply. See website for details:
