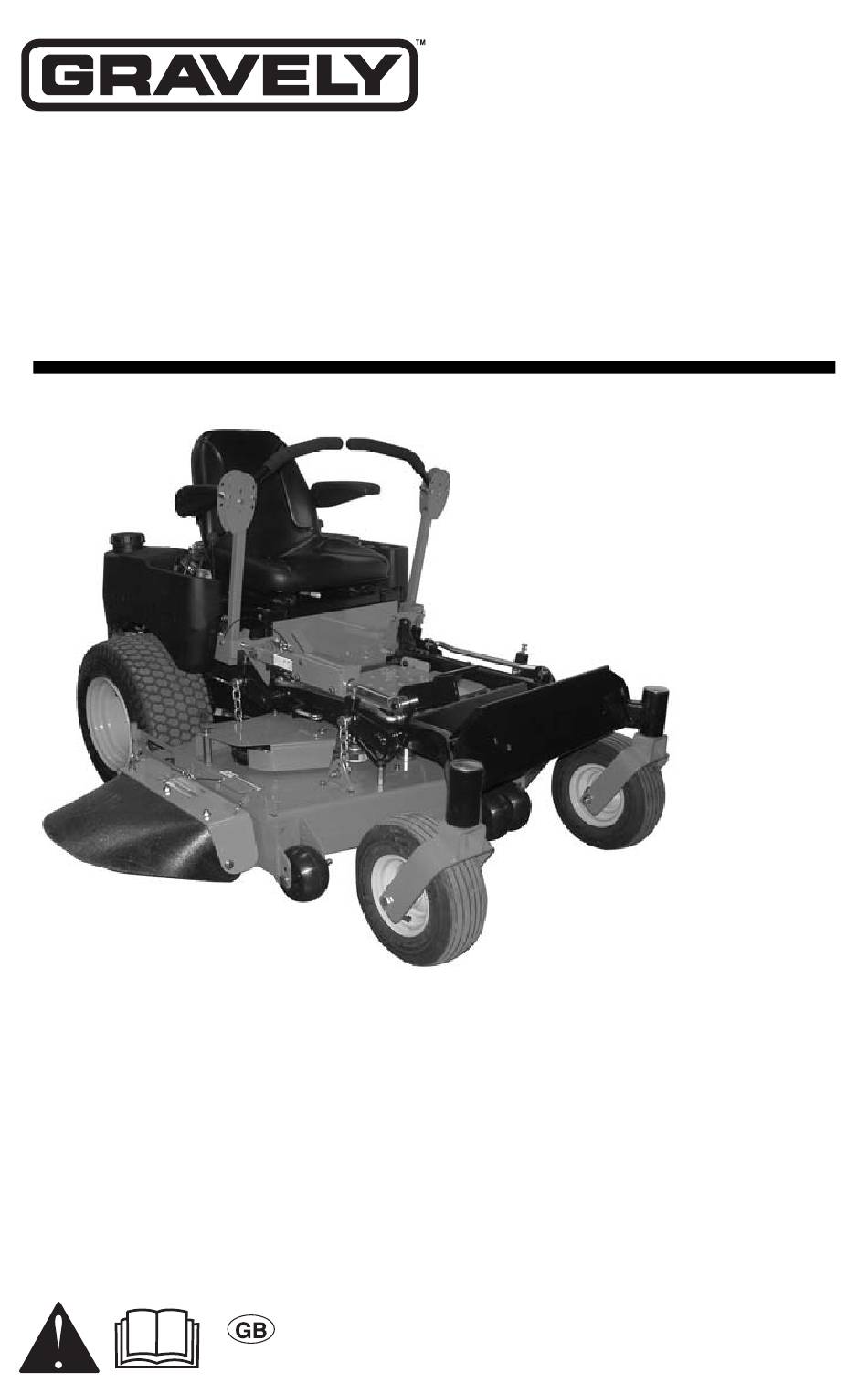

- Page 1 ® Promaster 44Z & 48Z Owner/Operator Manual Models 991035 – PM44Z 991036 – PM48Z 03253100 11/07 ENGLISH Printed in USA...
-
Page 2: Table Of Contents
English are also available as a position and facing the direction of forward free download on our website: travel. http://www.gravely.com SERVICE AND REPLACEMENT PARTS MANUALES EN IDIOMAS When ordering publications, replacement DIFERENTES DEL INGLES... - Page 3 (Off). Engine must stop if operator PRODUCT REGISTRATION leaves seat when steering levers are in any drive position or PTO is engaged The Gravely dealer must register the product (On). See Safety Interlock System on at the time of purchase. Registering the page 12.
-
Page 4: Safety
SAFETY WARNING: This cutting machine WARNING: POTENTIALLY is capable of amputating hands HAZARDOUS SITUATION! If not and feet and throwing objects. avoided, COULD RESULT in Failure to observe the safety death or serious injury. instructions in the manuals and on decals could result in serious injury or death. - Page 5 OF1625 Figure 2 1. DANGER! TO AVOID SERIOUS Go up and down slopes, not across. INJURY OR DEATH DO NOT operate on slopes Read Owner/Operator Manual. over 17°. OL4450 • If machine stops going uphill, stop blade and back down slowly. OL1801 •...
- Page 6 Shut off engine, remove key, Complete a walk around inspection of unit read manual before you adjust and work area to understand: or repair unit. • Work area • Your unit • All safety decals Determine which attachments are needed and can be used safely.
- Page 7 NEVER wear open sandals or canvas shoes Dust, smoke, fog, etc. can reduce vision and during operation. Wear adequate safety gear, cause an accident. Mow only in daylight or protective gloves and footwear. good artificial light. Wear proper footwear to improve footing on Avoid slippery surfaces.
- Page 8 NO smoking, NO sparks, NO flames. DO NOT operate on slopes of more than 17 ALWAYS allow engine to cool before degrees. servicing. Use of a Rollover Protection System (ROPS) NEVER fill fuel tank when engine is running is recommended for slope operation. See or hot from operation.
-
Page 9: Assembly
ALWAYS block wheels and know all jack Shut off fuel and allow engine to cool stands are strong and secure and will hold completely before storing in closed area or weight of unit during maintenance. covering unit. Release pressure slowly from components Clean grass and debris from unit, especially with stored energy. - Page 10 7. Check Engine Crankcase - Check and add oil if needed. See Engine Manual for specifications. 8. Fill Engine Fuel Tank - Add clean fuel to the fuel tank. IMPORTANT: Refer to Engine Manual for fuel type. 9. Hardware - Check for loose hardware. 10.
-
Page 11: Controls And Features
CONTROLS AND FEATURES OF4035 OF4095 OM4090 OM4085 Figure 4 1. Fuel Tanks and Caps 9. Battery 2. Steering Levers 10. Fuel Shut Off Valve 3. Hydraulic Oil Reservoir 11. Mower Lift Pedal 4. Ignition Switch 12. Mower Deck 5. Hour Meter 13. -
Page 12: Operation
D. To turn right, pull the right back or your Gravely dealer for repairs. push the left steering control lever NOTE: When the parking brake is engaged, forward or a combination of both. - Page 13 Choke Control Mower Lift Pedal Push the choke lever forward to start a cold engine. Pull the choke OF1700 lever to the rear when the engine gets warm. OF1680 Mower lift pedal raises and lowers mower deck for mowing or transport. Transport: Throttle Lever Push mower lift pedal all the way forward until...
- Page 14 Hour Meter 4. Check Tire Pressure Records total number of 5. Check Hydraulic Fluid Level hours the engine has 6. Adjust Seat been run. Be sure all controls can be reached safely IMPORTANT: Keep a from operator’s position. record of Hour Meter readings for 7.
- Page 15 WARNING: Move the steering control levers slowly and keep the throttle control lever at slow speed until you learn how to operate the unit. 3. Bring the steering levers to neutral. 4. Slow the engine down to about 3/4 speed. 5.
-
Page 16: Maintenance Schedule
FOR BEST PERFORMANCE Mow with the engine set at full throttle. When mulching, only remove 1/3 of grass Cut grass when it is dry. length per cutting. Do not cut more than 1 Keep mower blades sharp. inch (2.54 cm) at any one time. Keep mower deck properly levelled. -
Page 17: Service And Adjustments
1. Place unit on a flat level surface. peak efficiency. Should engine service be ALWAYS stop engine. Ensure unit is required, it can be obtained from a Gravely secure and will not tip over. Strap and Dealer or the engine manufacturer’s clamp onto lift if used. - Page 18 1. Remove the cap from the expansion tank. 2. Fill the expansion tank with Mobil 1 Extended Performance 15W50 or equivalent (Gravely p/n 00057100) until oil level reaches the cold fill line on the tank. 3. Install the expansion tank cap and then purge the system.
- Page 19 5. Spin new oil filter onto filter housing until 4. Stop the engine and put the transaxle it makes contact. Tighten oil filter bypass levers in the drive position. See another 3/4 turn. Moving the Unit with the Engine Off on page 15.
- Page 20 Slide mower blade on an unthreaded bolt. A balanced blade should remain in a horizontal position. If either end of mower blade moves downward, sharpen the heavy end until blade is balanced. 4. Install mower blade(s) on unit. 5. Tighten the bolts to a torque of 115-125 lbf-ft (156-169.5 N•m).
- Page 21 BATTERY WARNING: AVOID INJURY. Read and understand entire Safety section before proceeding. WARNING: Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling. OF1671 Unit comes equipped with a maintenance- free battery that requires no regular...
- Page 22 Then return steering levers to neutral position. Jump-Starting 6. Check wheel(s) for movement. Gravely does not recommend jump-starting NOTE: The right and left hydraulic pumps are your unit. Jump-starting can damage engine adjusted the same way. and electrical system components. See your 7.
- Page 23 Aligning the Steering Levers ADJUSTING THE UNIT TO TRACK (Figure 14) STRAIGHT 1. Shut OFF engine. Engage parking brake. Remove the ignition key. WARNING: Prior to adjusting the 2. Place seat in the service position (See tracking of the unit, shut OFF Service Position on page 17).
- Page 24 ADJUSTING THE HEIGHT OF THE 1. Engage parking brake and set both transmission bypass valves to the STEERING LEVER HANDLES neutral position. See Moving the Unit The handles have three height positions with the Engine Off on page 15. (Figure 16). 2.
- Page 25 PTO Belt Access 4. Remove short mower belt from right blade spindle and from deck. Idler pivot 1. Properly stop and park unit (See bolt must be loosened slightly to gain Operation on page 12). clearance to remove belt from under 2.
- Page 26 5. Install new hydro pump belt by NOTE: There are four anti-scalp rollers on positioning belt on sheaves. Put belt the outside of the mower deck and four anti- onto right hand hydrostat sheave last. scalp rollers on the inside of the mower deck. Make sure all anti-scalp rollers are set at the 6.
- Page 27 4. Remove the mower mounting pins Leveling the Mower Deck connecting the mower mounting arms to These adjustments should be made on a the deck. level surface with the tires inflated to the 5. Slide mower deck out from under unit. correct air pressure.
-
Page 28: Storage
Adjust Blade Height Blade Side-to-Side Level Level and pitch the mower with the height adjusters on each deck lift bracket (Figure 24). Loosen the jam nut on the deck lift bracket bolt about 1/4 turn to reduce clamp load on the height adjusters. Loosen the jam nut on the deck adjuster bolt and then turn the bolt clockwise to Left... -
Page 29: Accessories
When storing unit for extended periods of ACCESSORIES time, remove all fuel from tank and carburetor (run dry). Refer to Engine Manual. Part No. Description Clean and charge the battery. Charge battery 79100300 Mulching Kit (991035) every three to four weeks when storing unit. 79100400 Mulching Kit (991036) Fuel System... -
Page 30: Specifications
SPECIFICATIONS Model Number 991035 991036 Model PM44 PM48 Engine Engine Kawasaki Engine Model Number FH580V FH580V Engine Power – hp (kW) at Maximum 19 (14.2) 19 (14.2) Governed RPM (May be different from 3600 +/- 100 maximum RPM) Liquid or Air Cooled Cooling System Capacity Speed Forward Maximum –... - Page 31 The Ariens Company (Ariens) warrants to the for the life of the Sno-Thro, except as noted original purchaser that all Gravely Pro and below. ProMaster products manufactured by Ariens will Ariens Company will provide for the...
-
Page 32: Warranty
• To find an Ariens or Gravely authorized oil, oil filters, air filters, mufflers, belts, tires, service representative, contact Ariens at: shoes, runners, scraper blades, shear 655 W. Ryan St, P.O. Box 157... - Page 33 GRAVELY 655 West Ryan Street Brillion, WI 54110-1072 920-756-2141 Fax 920-756-2407 www.gravely.com WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
