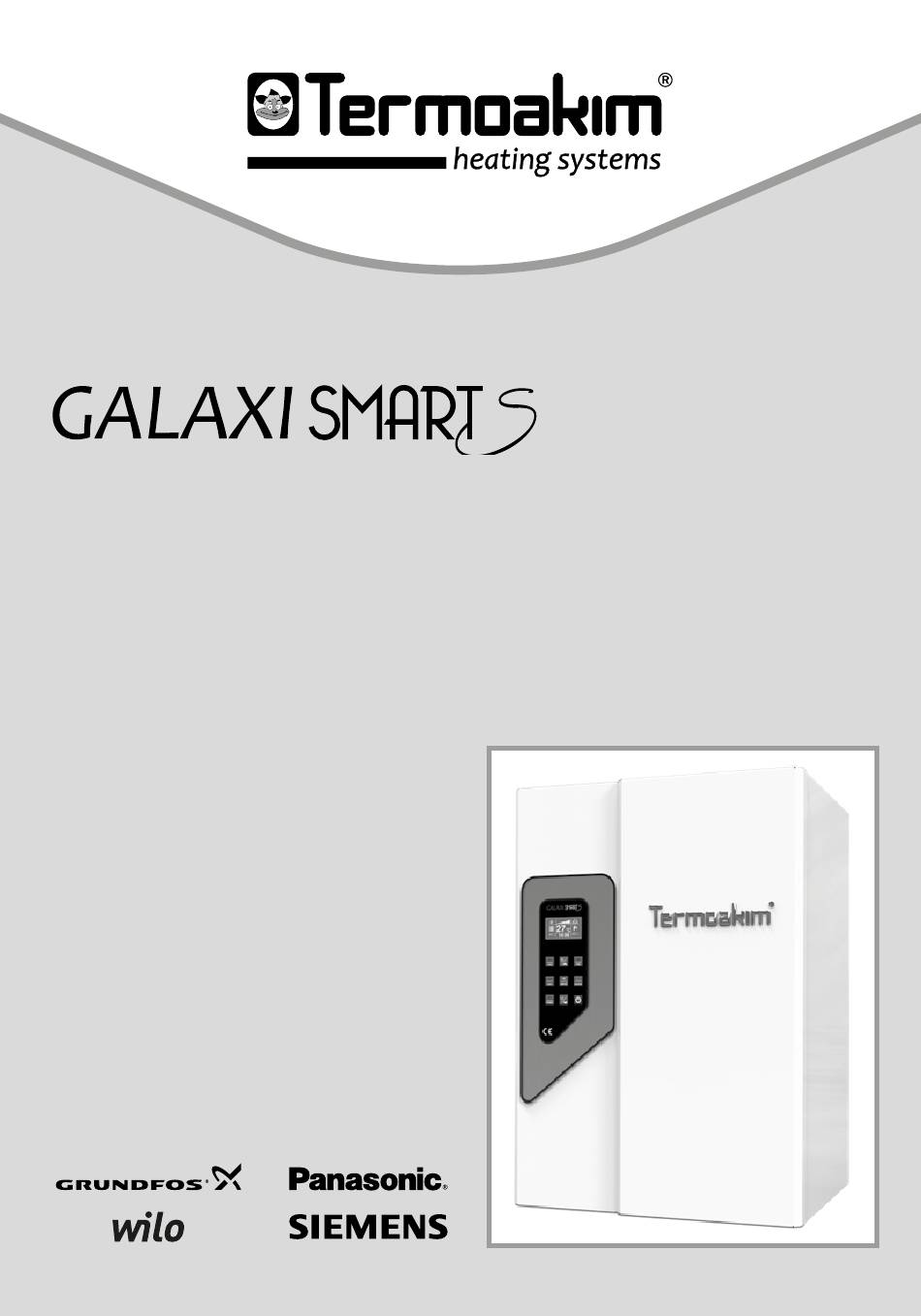

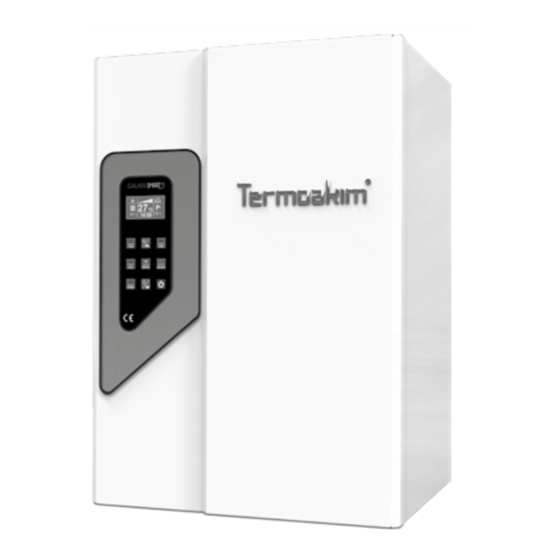

- Page 1 10 - 12 - 18 - 24 - 30 - 36 - 40 kW INSTALLATION, USER MANUAL WARRANTY CERTIFICATE...
- Page 2 Keep this booklet as long as you use the product, even after installation. We wish you to use it in happy days. Regards. TERMOAKIM HEATING SYSTEMS * Please read the user manual before using the product. Termoakım Galaxi Smart S User Manual...
-
Page 3: Table Of Contents
▸ 19.5. High Temperature Error: ..................................................37 ▸ 19.6. C. ERR (Circulation Error): .................................................38 Periodic Maintenance of the Device ....................................39 Meanings of Screenshots ........................................40 Faults and Solutions ..........................................41 Rules to be Followed ..........................................42 WARRANTY CERTIFICATE ...........................................45 Termoakım Galaxi Smart S User Manual... -
Page 4: Safety And Warnings
Abrasive applications and the use of chemicals should be avoided. ▸ Before using hot water, the temperature of the water should be strictly controlled against the risk of scalding. ▸ The device should not be used by children or unaccompanied disabled persons. Termoakım Galaxi Smart S User Manual... -
Page 5: Useful Information About The Device
▸ Using the device at minimum temperature will save energy. The higher the temperature, the higher the consumption. ▸ If you use the device with a room thermostat, you will save money as it will regulate its operation according to the room temperature. Termoakım Galaxi Smart S User Manual... -
Page 6: Cleaning And Maintenance Of The Device
However, if there is an incomplete process regarding the assembly of the device, our authorized service will not be able to perform the first start-up process and will demand a service fee from the consumer. Termoakım Galaxi Smart S User Manual... -
Page 7: Paid Transactions During The Warranty Period
▸ All malfunctions that are outside the warranty coverage specified in the device's warranty document. ▸ Malfunctions caused by water pressure in the mains. ▸ Malfunctions caused by customer misuse. ▸ Plumbing-related malfunctions. Termoakım Galaxi Smart S User Manual... -
Page 8: Free Transactions During The Warranty Period
6. Three-way valve motor 18. Pump automatic air vent valve Expansion tank 19. Circulation pump 8. Room thermostat connection 20. 3 bar safety valve 9. SMPS transformer 21. Filling valve 10. Main relay PCB 11. Input terminal Termoakım Galaxi Smart S User Manual... -
Page 9: Opening The Device Cover
5. Opening the Device Cover Termoakım Galaxi Smart S User Manual... -
Page 10: Device Setup
▸ To allow authorized service technicians to access the device for technical issues or maintenance, empty spaces must be left with the minimum di- mensions specified in the drawing. Termoakım Galaxi Smart S User Manual... - Page 11 If the device is not installed in accordance with the standards specified in the user manual, and if the appro- priate gaps are not left around the device, the authorized service charges a fee regardless of the warranty status of the device. Termoakım Galaxi Smart S User Manual...
-
Page 12: Device Function Elements
8. 3 Way Valve 9. Plate Heat Exchanger 10. Air Release Valve WARNING: CUSTOMER RESPONSIBILITY It is the customer's responsibility to complete the installa- tion of the device as specified in the user manual. Termoakım Galaxi Smart S User Manual... -
Page 13: Plumbing Connection
1. Flow 3/4 6. Filling Valve Pipe Coupling 2. DHW Outlet 1/2 7. Manometer Valve 3. Cold Water Inlet 1/2 8. Air Release Valve Strainer 4. Return 3/4 5. 3 Bar Safety Valve Outlet Termoakım Galaxi Smart S User Manual... - Page 14 9. Montaj Şemaları 9.1. Radyatör, Yerden Isıtma, Sıcak su Montaj Şeması 9.2. Radyatör, Sıcak Su Montaj Şeması Termoakım Galaxi Smart S User Manual...
-
Page 15: Water Supplying To The Device
The filling valve of the device should be closed when the water supplying process is finished. If the valve is left open, the water pressure rises above 3 bar, the device evacuates the excess water. Termoakım Galaxi Smart S User Manual... -
Page 16: Electrical Connection Of The Device
11. Electrical Connection of the Device ▸ The Galaxi Smart S 10-12 kW model devices is designed to work both in single-phase and three-phase mode. ▸ The operating voltage of the device should be 230 V AC 50 Hz for sin- gle-phase devices and 400 V AC 50 Hz voltage for three-phase devices. - Page 17 WARNING: IMPORTANT ▸ In the supply line to which the device will be connected, there must be a 30ma residual current relay suitable for the operating conditions. Termoakım Galaxi Smart S User Manual...
-
Page 18: Single Phase Connection
T (phase 3) S (phase 2) R (phase 1) Make input to the R, S, T phases on the input terminal. Make the neutral and ground line are connection. It is shown in the figure. Termoakım Galaxi Smart S User Manual... -
Page 19: Electrical Wiring Diagram And Panel Output Information
12. Electrical Wiring Diagram and Panel Output Informa- tion 11.1. Control Panel 1. Room Thermostat 2. Pressure Sensor (Water kit) 3. Flow Sensor 4. DHW NTC (10k) 5. Heating NTC (100k) 6. Data Input 7. Battery Termoakım Galaxi Smart S User Manual... -
Page 20: Relay Pcb
L (DHW) L (CH) Data cable Safety thermostat SMPS 12V SMPS 220V 3-way valve motor 3-way valve motor fuse Circulation Pump Circulation Pump fuse External 220V input 10. Internal 220V Neutral 11. Internal 220V Phase Termoakım Galaxi Smart S User Manual... - Page 21 11.3. 9 Relay PCB Data cable Internal 220V Neutral Internal 220V Phase External 220V input 3-way valve motor fuse Circulation Pump fuse 3-way valve motor Circulation Pump SMPS 220V 10. Safety thermostat 11. SMPS 12V Termoakım Galaxi Smart S User Manual...
-
Page 22: Electrical Diagram (Pcb With 6 Relays)
11.4. Electrical Diagram (PCB with 6 Relays) Null Pressure Room Probe Sensor Thermostat (100k) (10k) 220 V Transformer External 12 V Transformer Diverter Circulation 220V Valve Pump Input Limit Thermostat INPUT TERMINAL Termoakım Galaxi Smart S User Manual... -
Page 23: Electrical Diagram (Pcb With 9 Relays)
11.5. Electrical Diagram (PCB with 9 Relays) Null Pressure Room Probe Sensor Thermostat (100k) (10k) Diverter Circulation Valve Pump Limit Thermostat Internal 220V INPUT TERMINAL Termoakım Galaxi Smart S User Manual... -
Page 24: External 220V Supply (Regulator Input)
It damages the device. External 220V External 220V Insert supply Insert supply input terminal. input terminal. from regulator. from regulator. Picture 1 Picture 2 Factory Outlet CORRECT CONNECTION Termoakım Galaxi Smart S User Manual... -
Page 25: Initial Start-Up Of The Device
For devices in this situa- tion, it is essential to contact an authorized service before starting up the device. This procedure is subject to a fee, regardless of the device's warranty status. Termoakım Galaxi Smart S User Manual... -
Page 26: Operating Modes Of The Device
Eco Mode: When the device is set to Summer Mode, it does not pre-heat the water. Instead, it starts producing hot water when the consumer requests it. Termoakım Galaxi Smart S User Manual... -
Page 27: Control Panel
HEATING SET TEMPERATURE TEMPERATURE ACTUAL TEMPERATURE UP & INCREASE CLOCK BUTTON SUMMER MODE WINTER MODE BUTTON BUTTON KIŞ MENU BUTTON ENTER ESC BUTTON BUTTON MENÜ ENTER DOWN & DECREASE BUTTON ON/OFF TIMER BUTTON BUTTON TIMER Termoakım Galaxi Smart S User Manual... -
Page 28: Settings And Menu Content
▸ Your settings saved. You can turn the previous page with button. ▸ You can see the temperature which you set under the radiator icon on the screen. RADIATOR TEMPERATURE ↑ 40 °C ↓ Termoakım Galaxi Smart S User Manual... -
Page 29: Summer Mode Selection
▸ Your settings saved. You can turn the previous page with button. ▸ You can see the temperature which you set under the faucet icon on the screen. DHW TEMPERATURE ↑ 40 °C ↓ Termoakım Galaxi Smart S User Manual... -
Page 30: Eco Mode Selection
DHW TEMPERATURE ECO MODE TIMER LANGUAGE ↓ ▸ You can select the mode which you want wiht buttons. ▸ After your selection press button for confirm your selection. ENTER ECO MODE ↑ COMFORT ↓ Termoakım Galaxi Smart S User Manual... -
Page 31: Timer Settings
* When you enter the program, you will see a line below the time value in the ON section. This line indicates that the active area is selected for setting. We will move this line with buttons and make our settings. Termoakım Galaxi Smart S User Manual... - Page 32 Temperature Setting: ▸ Pass temperature value part with and press ENTER ▸ Set the temperature for the program with buttons and press ENTER PROGRAM 1 50 °C ↑ 08 : 25 12 : 30 ↓ Termoakım Galaxi Smart S User Manual...
-
Page 33: Language Selection
15.7. Language Selection: ▸ Press MENÜ ▸ Pass the LANGUAGE section with ▸ Select the language which you want with and then press ENTER LANGUAGE TURKISH ↑ ENGLISH ↓ Termoakım Galaxi Smart S User Manual... -
Page 34: Device Info
: Indicates the amount of time circulation pump use ▸ P. CUT : Indicates the number of times power failure occurred. ▸ CIRC. FAULT : Indicates the number of times that the circu- lation failed Termoakım Galaxi Smart S User Manual... -
Page 35: Date And Time Setting
▸ In this section, you can see the Termoakım factory technical support phone and, if it has been entered by the authorized service, the authorized service phone in your region. SERVICE TERMOAKIM ↑ 000 000 00 00 AUTHORIZED SERVICE 000 000 00 00 ↓ Termoakım Galaxi Smart S User Manual... -
Page 36: Safety Measures
If you are not going to use the device for a long time, turn off the fuse of your device after turning the device OFF (standby mode). In this position, the frost protection measure will not work. The plumbing connections of the device should be disassembled and the water should be drained. Termoakım Galaxi Smart S User Manual... -
Page 37: Device Error Information
* If this error is not cleared or the device gives the same error frequent- ly, contact the authorized service. Termoakım Galaxi Smart S User Manual... -
Page 38: Tank Sensor Error (100K)
19.5. High Temperature Error: ▸ Error: If the temperature of the device is 85°C and above, it gives this error. ▸ Error Screen: ▸ Solution: Contact the service. Termoakım Galaxi Smart S User Manual... -
Page 39: Err (Circulation Error)
▸ Check whether the valves in the flow and return lines of the device and the radiator valves on the installation are open. ▸ If the problem persists after performing these steps, contact the author- ized service. Termoakım Galaxi Smart S User Manual... -
Page 40: Periodic Maintenance Of The Device
▸ The heat probes of the device are checked. ▸ The pressure gauge of the device is checked, and if there is any blockage, it is cleaned. ▸ The general condition and operation of the device are checked. Termoakım Galaxi Smart S User Manual... -
Page 41: Meanings Of Screenshots
The TIMER mode is ac- TIMER mode is active device is controlled by tive on the device and in the device and it is the room thermostat. the time period set for working in PROGRAM operation is awaited. Termoakım Galaxi Smart S User Manual... -
Page 42: Faults And Solutions
The boiler does not stop at ▸ Relay sticking fault. ▸ Contact the authorized the level I set, it continues service. to heat. Termoakım Galaxi Smart S User Manual... -
Page 43: Rules To Be Followed
The repair of the defect can be performed at the location where the product is located or at the authorized service workshops. ▸ Keep the service form you received from the authorized service provider. Termoakım Galaxi Smart S User Manual...
