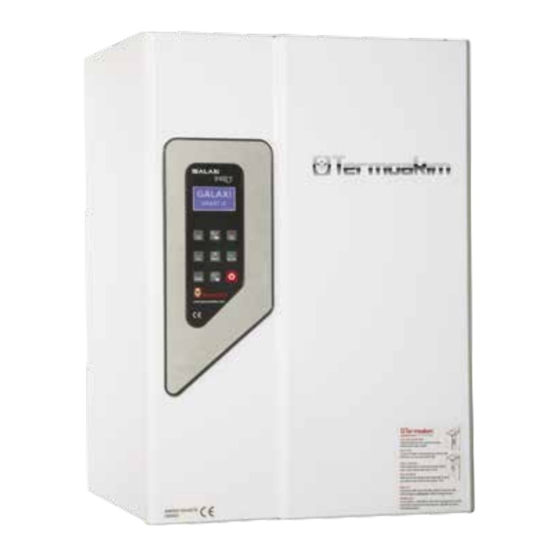

- Page 1 GALAXI SMART S SERIES ELECTRIC COMBI BOILER User Manual and Warranty Certificate TS EN ISO 9001:2000 Certificate No: AQ/TR/2165...
- Page 2 Dear customer, Our company, which operates in the heating sector, continues its Research & Develop- ment activities by following the developing technology in addition to the production of electric combi boiler and floor heating very closely. We aim to make our customers benefit from the latest technology by applying technologi- cal developments to our products.
-
Page 3: Table Of Contents
CONTENTS Parts Of Electric Boiler Device Installation Opening The Device Cover Installation connection of the device Electrical Connection Of The Device Flooding The Device Initial Operation Of The Device Using The Control Panel Of The Device Device Error Information Electrical connection diagram and Panel Output information Safety Precautions Of The Device Periodic Maintenance Of The Device... -
Page 4: Parts Of Electric Boiler
13. Flow Sensor 5. Domestic Water Heat Sensor (NTC) 14. Automatic Air Evacuation 6. Three-Way Valve Engine 15. Circulation Pump 16. 3 Bar Safety Valve 7. Expansion Tank 8. Reset Safety Thermostat 17. Filling Valve 9. Power Distribution Board www.termoakim.com... -
Page 5: Device Installation
Authorized Service will charge a fee regardless of war- ranty status. Warning It is the customer’s responsibility to install the device ac- cording to the standards specified in the user guide. Minimum space values to be left around the device www.termoakim.com... -
Page 6: Opening The Device Cover
• To open the cover, the bottom right and top screws are re- moved, as shown in the picture below, and the cover opens to the left side. Easy-to-open cover opening shape and direction www.termoakim.com... -
Page 7: Installation Connection Of The Device
Air Intake Manometer Valve Water Pressure Valve 3 Bar Safety Valve Outlet R: Record Heating Cold P: Dirt Holders Heating Water V: Valve Going Water Return Outlet Inlet Fig. 1 Fig. 2 www.termoakim.com... -
Page 8: Electrical Connection Of The Device
Cable Cross Current Relay Cross Device (kw) Voltage (V) Section (mm Section (mm 2x50 3x10 2x63 4x25 4x32 4x40 4x10 4x50 4x10 4x63 WARNING: The values given were calculated for a maximum length of 20 m cable to be pulled. www.termoakim.com... - Page 9 3 phases are bridged together. Neutral and ground line are connec- ted. Is shown in the figure. 12-18-24-30-36 kw Triphase Connection Input to R S T phase ends at the input terminal. Neutral and ground line are connected. Is shown in the figure. www.termoakim.com...
-
Page 10: Flooding The Device
1,5 bar. If this situa- tion is constantly happening, there is a possibility of leakage in the installation. This may also damage the device. Contact Authorized Service. Air Intake Manometer Valve Water Pressure Valve 3 Bar Safety Valve Outlet www.termoakim.com... -
Page 11: Initial Operation Of The Device
The circulation pump can be locked due to calcareous water and corrosion in devices that have not been run for 3 months or more after water pressing. The pump should be given way. For the devices in this case, contact the Authorized Service must be made before starting. www.termoakim.com... -
Page 12: Using The Control Panel Of The Device
TIME CLOCK ACTIVATION KEY TIMER w w w w w w . . t t e e r r m m o o a a k k i i m m . . c c o o m m www.termoakim.com... - Page 13 You’ll see a line under the first numbers. This line will show you whe- re you are on the menu. Press enter at the setting place where the line 00-00 is located, the position will be activated. Set the time with www.termoakim.com...
- Page 14 Language Selection Of The Device Press menu, scroll to language selection with the arrow key, press enter, select the desired language, and press enter. It is taken into the memory. Exit with the Esc key. • English• Turkish • Greek www.termoakim.com...
- Page 15 Press menu, press ok to service position, press enter, the Thermoakım® factory technical support phone is displayed. The service number of the zone is displayed in the Authorized Service Area. You can see this number if entered by the service. www.termoakim.com...
-
Page 16: Device Error Information
It is the fault of the probe that measures the output temperature of the device. The cable may have come off or the terminal may have made oxide. Check the input by looking at the control panel outputs. If the error still persists, contact the service. www.termoakim.com... -
Page 17: Electrical Connection Diagram And Panel Output Information
5 Three-Way Engine Socket (T1) 6 Circulation Pump Socket(T2) 7 Control Panel 8 Room Thermostat Socket(T3) 9 Pressure Switch (Water Kit) (T4) 10 Flow Sensor Socket(T5) 11 Ntc Heat Sensor(T6) 12 Boiler Probe 12 Data Cable 13 Ground Line Connection www.termoakim.com... -
Page 18: Safety Precautions Of The Device
* The voltages coming to the device are controlled. • * The device’s heat probes are controlled. • * The manometer of the device is checked. If there is any congestion, it is cleared. • * The general condition and operation of the device are checked. www.termoakim.com...
