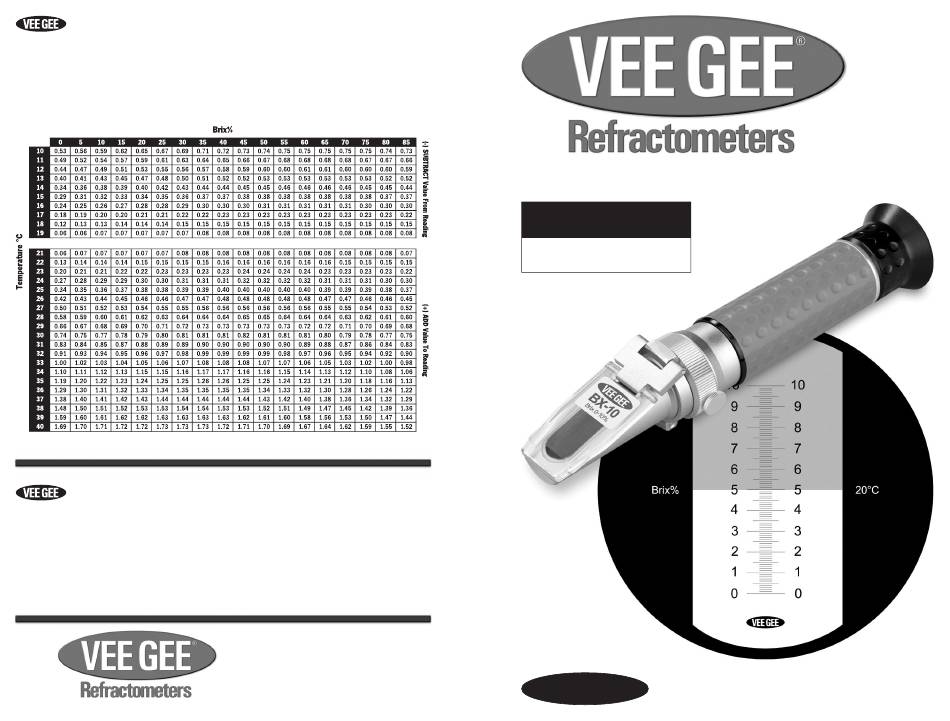

Temperature Correction Table
For Refractometers Calibrated At 20°C
(l
As an alternative to recalibration of the refractometer due to ambient temperature changes, the following temperature
correction table can be used. Ensuring that both the distilled water and the ambient temperature are both at exactly 20°C,
follow steps 2-7 under the CALIBRATION section on the preceding page. Once this is accomplished, if ambient temperature
changes, simply apply the temperature correction values listed below. For example, a reading of Brix 40.0% at 25°C is
corrected to Brix 40.4%; a reading of Brix 65.0% at 10°C is corrected to Brix 64.25%.
Specifications
Range:
Brix 0.0-10.0%
Resolution:
0.1%
Accuracy:
±0.1%
Dimensions:
40 x 40 x 185mm (1.6 x 1.6 x 7.3")
Weight:
285g (10.0 oz.)
Supplied With:
Vinyl Carrying Case (1), Plastic Transfer Pipet (1)
Printed in China
=
589nm)
Source: ICUMSA, 1974
Warranty information and
registration form can be found at:
www.veegee.com/service_support
VGMNL010320-43009
Operation Manual

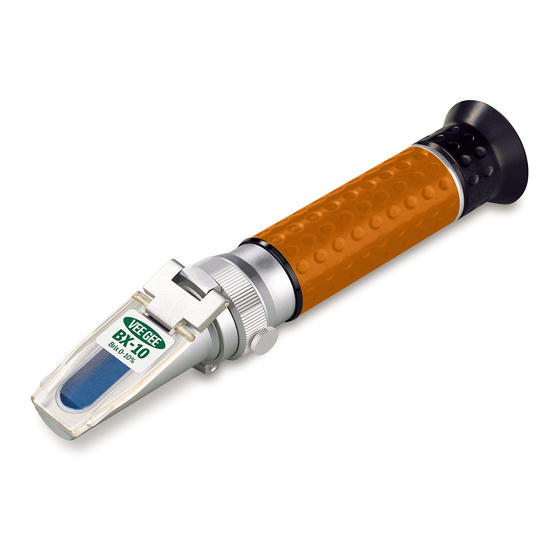

Model BX-10
Brix 0-10%
Cat. No. 43009
