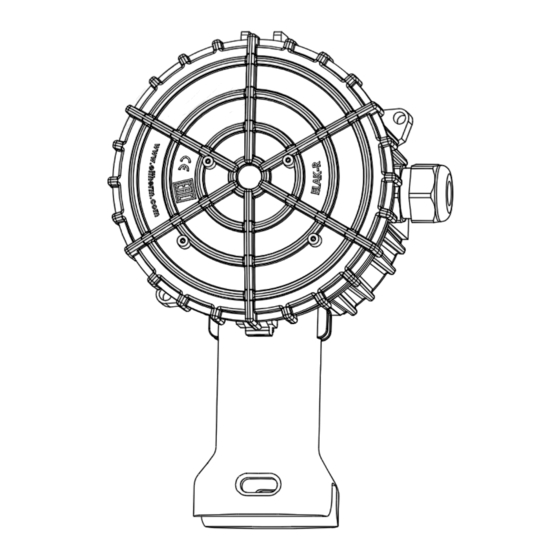

- Page 1 OPERATION MANUAL ELAK-RS Installation and Operation QAA-113 eltherm GmbH P.: +49 2736 4413-0 Revision 1 Ernst-Heinkel-Strasse 6 -10 F.: +49 2736 4413-50 57299 Burbach, Germany info@eltherm.com www.eltherm.com...
-
Page 2: Table Of Contents
SCOPE OF DELIVERY & CONNECTION PLAN ELAK-RS (0920050) ELAK-RS-T (0920059) INSTALLATION SAFETY INSTRUCTIONS ASSEMBLY INSTRUCTIONS RECOMMENDED TOOLS PLACEMENT OF ELAK-RS OPEN THE JUNCTION BOX FASTEN THE JUNCTION BOX CONNECT HEATING CABLE & PT100 STRAIN RELIEF SENSOR CABLE CLOSE THE JUNCTION BOX CHECK AFTER INSTALLATION OPERATION &... -
Page 3: Receipt Of Goods
Operation Manual Junction boxes ELAK-RS & ELAK-RS-T Revision 1 For proper and safe use of the ELAK-RS junction boxes, please follow these instructions. Please keep these instructions for future reference (e.g. in the system documentation). Display conventions Particularly important points in these instructions are indicated by the following symbols:... -
Page 4: Technical Data
TECHNICAL DATA TECHNICAL DATA Junction box ELAK-RS (0920050) ELAK-RS-T (0920059) Nominal voltage (max.) 800 V AC 800 V AC Nominal current max 32 A per terminal 6 mm² max 32 A per terminal 6 mm² Ambient temperature - 45 °C to +50 °C - 45 °C to +50 °C... - Page 5 QAA-113 Operation Manual Junction boxes ELAK-RS & ELAK-RS-T Revision 1 SCOPE OF DELIVERY & CONNECTION PLAN ELAK-RS ELAK-RS-T Terminal for earthing or electrical protection Terminal for earthing or electrical protection Type Qty. Clamp range Type Qty. Clamp range Blind plug M20x1,5...
-
Page 6: Installation
• The persons entrusted with the planning, installation and maintenance bear a special responsibility and must therefore be thoroughly familiar with the applicable re- PLACEMENT OF ELAK-RS gulations. Do not fasten heating • These instructions are intended for this group of people... - Page 7 QAA-113 Operation Manual Junction boxes ELAK-RS & ELAK-RS-T Revision 1 Remove the adhesive tape and strong wire from the sensor line. Fasten the mounting stand onto the pipe with a strap. Do not feed tightening strap above heating cable or sensor cable!
-
Page 8: Open The Junction Box
FASTEN THE JUNCTION BOX OPEN THE JUNCTION BOX Fasten the mounting post [ELAK-RS] to the pipe with a tension Tighten the head- strap / turnbuckle. less screw with an Allen wrench (size 2) until the locking arm is flush with Assembly accessories for pipe mounting Mat. -
Page 9: Strain Relief Sensor Cable
QAA-113 Operation Manual Junction boxes ELAK-RS & ELAK-RS-T Revision 1 STRAIN RELIEF FOR SENSOR CABLE Sensor cable Headless screw M4x16; DIN913 Fastening clamp Sensor cable Contact us: +49 2736 4413-0 • info@eltherm.com www.eltherm.com... -
Page 10: Close The Junction Box
CLOSE THE JUNCTION BOX CHECK AFTER INSTALLATION Visual inspection of housing and cover to ensure they are ATTENTION not damaged. Cover can only be inserted in one position (lok- After completing the installation, the following steps must king arms / twist protection recesses have different width). Move the cover to the appropriate position. -
Page 11: Marking
NOTE Customer-side labeling with an identification plate is pos- sible. 70 mm (2,2 x Ø 6mm) DOWNLOADS You can also find this document on the eltherm website. Please visit our download area. Contact us: +49 2736 4413-0 • info@eltherm.com www.eltherm.com... -
Page 12: Ernst-Heinkel-Str
GmbH Headquarters Ernst-Heinkel-Straße 6 -10 57299 Burbach. Germany T.: +49 2736 4413-0 F.: +49 2736 4413-50 info@eltherm.com Contact us: +49 2736 4413-0 • info@eltherm.com www.eltherm.com...
