Smarter Control Solutions.
Programming Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTE-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Habitat HTE-01

Summary of Contents for Habitat HTE-01

  • Page 1 Smarter Control Solutions. Programming Guide...
  • Page 2 About This Manual This manual uses special attention icons to alert the reader of important safety concerns, information important to reliable operation of the controls or helpful installation/setup information. Safety: Indicates a condition which may cause severe personal injury, death or major property damage. Important Information: Indicates information which requires special attention for correct operation of the control.

  • Page 3: Table Of Contents

    Web Site: www.habitattechnologies.com customerservice@habitat.support Manual Table of Contents About This Manual HTE-01 Thermostat - Home Screen Display HTE-01 Thermostat - Controls HTM-01 Base Module - LED Status Indication HTE-01 Thermostat - Parameter Setup - Identify HTM-01 Base Module(s) - Pairing Additional HTM-01 Base Module(s) 9-10 - Daylight Savings Time, Date &...
  • Page 4 Home Screen Display...
  • Page 5 Celsius or Fahrenheit units Mode status Emergency heat indication Additional system type text Fan speed indication 1 - Schedule must be activated for the time & schedule status to be displayed. See the Habitat programming guide for information on setting up a schedule.

  • Page 6: Hte-01 Thermostat Controls

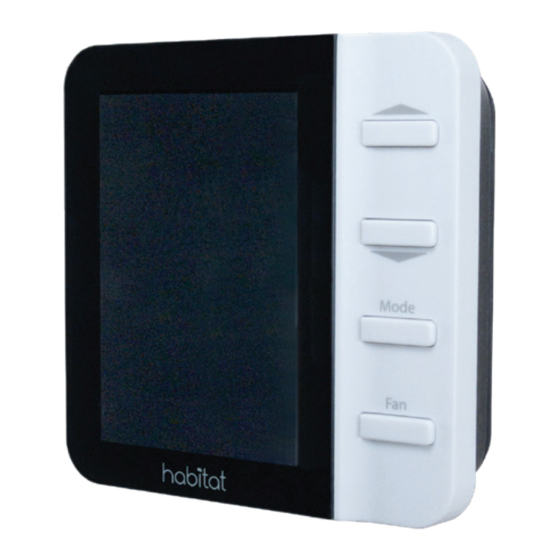

    HTE-01 Thermostat Controls Front View Bottom Side View...
  • Page 7 LCD Display – See preceding pages for detailed descriptions of the display icons. – Increase or Decrease the target temperature set point. Changing the target set point: • Press the button while in Auto, Heat or Cool Modes. • If a schedule is programmed, “Override” is displayed below the time indicating that the current target setpoint will be maintained until the: - Next schedule period...

  • Page 8: Htm-01 Base Module Led Status Indication

    HTM-01 Base Module LED Status Indication The following table shows the base module state corresponding to the LED Status Indication. LED Status Indication State Description Flashing Base module is seeking to pair with Pairing Green the thermostat. Green Base module is paired with the thermostat. Paired Base module is not paired with a thermostat.

  • Page 9: Hte-01 Thermostat - Parameter Setup

    Parameter Setup To access Parameters, press & hold “Mode” & “Fan” until a sound is played (3 seconds), then release. Use the “Fan” button to scroll forward and the “Mode” button to scroll backward through the available parameters. Parameter Description Action Identify existing base module(s) Identify or Pair...

  • Page 10: Identify Htm-01 Base Module(S)

    Identify HTM-01 Base Module(s): Access parameters Press If any module has using the procedure identify base mod- been paired but has described earlier. ules. “All” flashes lost its link to the indicating all mod- Thermostat, the pair- ules. Press ing status indicator to scroll through the will blink along with list of connected...
  • Page 11 The LED on the module corresponding to the ID selected will begin flash- Press “FAN” to The module ID ing red for 10 minutes. select the module stops flashing, and If “All” is selected, the desired. 10-minute count- LEDs on all connected down timer begins.

  • Page 12: Pairing Additional Htm-01 Base Module(S)

    Pairing Additional HTM-01 Base Module(s): Press & hold “Mode” The display shows Use the & “Fan” until a sound the number of base button to begin a is played (3 seconds), modules currently 10-minute count- then release. paired. down to pair addi- tional base modules.
  • Page 13 The pairing sequence will time out after 10 minutes. To exit the parameters menu, press & hold “Mode” and “Fan” until a sound is emitted. The Habitat HTE-01 Thermostat will support a maximum of eight HTM-01 Base Modules...

  • Page 14: Daylight Savings Time, Date & Time Settings

    Daylight Savings Time, Date & Time Settings: Daylight Savings Time: Use : Use : Use button to toggle buttons to set buttons to set DST Mode . Press the month. Press “Fan” the date. Press “Fan” “Fan” to continue. to continue. to continue.

  • Page 15: Emergency Heat Setting

    Emergency Heat Setting: buttons to enable (y) or disable (n) Emergency Heat. If the room temperature falls below the Frost Protect Setpoint (Administrative Parameter), emergency back-up heat will be activated. Schedule Setup: Press & hold “Mode” The display shows Press “Mode” to When prompted &...
  • Page 16 • Choose Schedule Type Display Description Action when “Fan” pressed MF – Set periods* Weekday (MF) or Weekend (SS) SS – Set periods* Same schedule Set periods* throughout the week Different schedule MO, TU, WE, TH, FR, SA, SU each day –...
  • Page 17 To disable a period, press After the 6th period is Once all periods and day button until programmed, the HTE-01 groups have been pro- is displayed. Thermostat will move to grammed, a prompt to Up to 6 periods per day the next day or group, Update will be displayed.

  • Page 18: Hte-01 Thermostat Administrative Parameters

    HTE-01 Thermostat Administrative Parameters To access Administrative Parameters, press & hold “Mode” & “Fan” until the second beep is played (10 seconds) and is displayed. Use the buttons to change . Use the “Fan” button to scroll forward and the “Mode” button to scroll.

  • Page 19: Enable Auto Changeover, Button Press Sound, Enable Compressor

    Parameter Display Description Use the buttons to toggle between “n” (default) and “y”, then press “Fan” to select. Selecting “y” enables the AUTO mode Enable Auto selection using the “Mode” button. Changeover Note: Disabling Auto Changeover by pressing “n” will change schedule mode to the current HEAT or COOL mode.
  • Page 20 Parameter Display Description Use the buttons to set Compressor Off Delay Time. Range 3 to 5 minutes Compressor Off Delay Time Default 5 minutes Increment 1 minute Use the buttons to change the minimum differential between the heat and cool setpoints. Press “Fan” to accept. If this value is changed, the current set point, schedule set point, min/max setpoint or freeze Heat/Cool...

  • Page 21: Temperature Offset, Freeze Protection

    Parameter Display Description Use the buttons to set the temperature offset between the room sensor reading and display/set point temperature. This is to eliminate a discrepancy between the sensor reading Temperature and actual temperature if it exists. Press Offset “Fan” to accept and go to the next parameter.

  • Page 22: Maximum/Minimum Set Point, Lock Set Point

    Parameter Display Description Use the buttons to set the maximum temperature set point for heating. Press “Fan” to accept and go to the next parameter. Maximum The minimum heating set point is fixed at Set Point - 41°F (5°C). Heating Range 45°F to 89°F (7°C to 31.5°C) Increment...

  • Page 23: Base Module Alarm Check Period, Factory Reset

    1 to 5 minutes Period Default 1 minute Increment 1 minute Use the buttons to toggle between “n” to “y”, then press “Fan”. Factory Reset “3” will be displayed briefly before the HTE-01 begins the re-boot process, starting with displaying all segments.

  • Page 24: Designed And Engineered In New York

    Smarter Control Solutions. Designed and Engineered in New York. U.S. Registered Trademark. Patents pending www.habitattechnologies.com Internal use HC-PG-HTE-01-HTM-01-2020.06 v1...
