  • Page 1 Smarter Control Solutions. Operation Manual...
  • Page 2 About This Manual This manual uses special attention icons to alert the reader of important safety concerns, information important to reliable operation of the controls or helpful installation/setup information. Safety: Indicates a condition which may cause severe personal injury, death, or major property damage. Important Information: Indicates information which requires special attention for correct operation of the control.
  • Page 3 Manual Table of Contents About This Manual i - ii System Overview Home Screen Display & Controls HTE-01 Thermostat Operation 8-14 - Changing Operating Mode - Changing Fan Speed - Alarm Operation - Compressor Short Cycle Protection; Cooling Fan Delay - Frost Mode;...
  • Page 4 Installation & Pairing Manual for the correct procedure. A single Model HTE-01 thermostat can control up to eight air conditioning units equipped with Model HTM-01 base modules. The range between the thermostat and the base modules can be...
  • Page 5 System Overview - Dip Switch Configurations PTAC (Packaged Terminal Unit) 1 – Factory Default 2 – (Fan Coil Unit / Mini-Split) WSHP 3 – (Water-Source Heat Pump) HWSHP 4 – (Hybrid Water Source Heat Pump) UNTY 5 – (Unitary AC/Furnace) O/B Terminal Selection 6 –...
  • Page 6 Home Screen...
  • Page 7 Celsius or Fahrenheit units Mode status Emergency heat indication Additional system type text Fan speed indication 1 - Schedule must be activated for the time & schedule status to be displayed. See the Habitat programming guide for information on setting up a schedule.

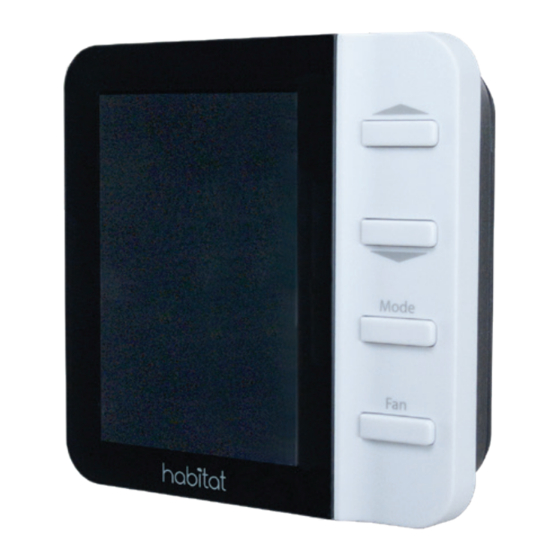

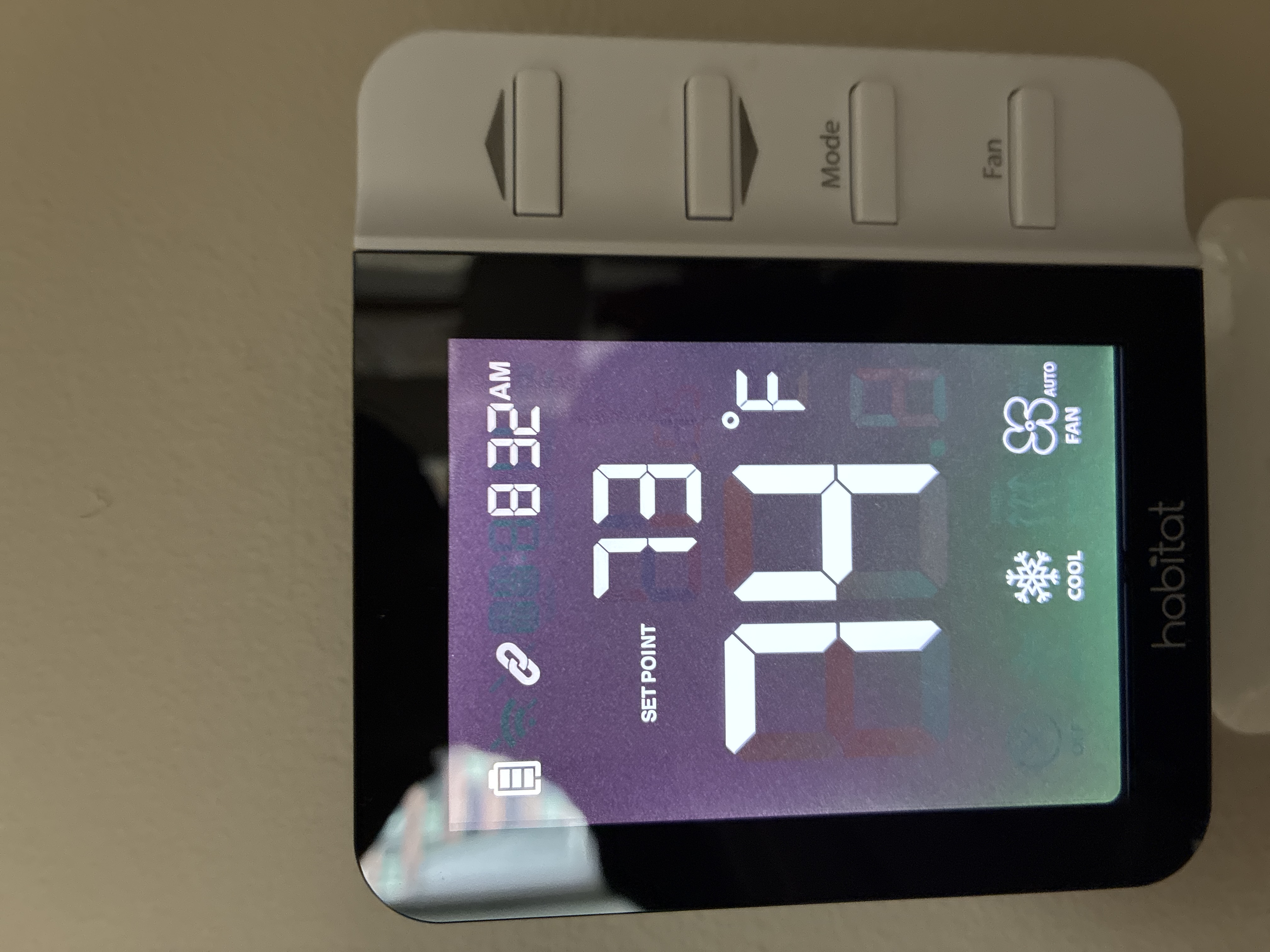

  • Page 8 Model HTE-01 Thermostat Front View Bottom View...
  • Page 9 LCD Display – See preceding pages for detailed descriptions of the display icons. – Increase or Decrease the target temperature set point. Changing the target set point: • Press the button while in Auto, Heat or Cool Modes. • If a schedule is programmed, “Override” is displayed below the time indicating that the current target setpoint will be maintained until the: - Next schedule period...
  • Page 10 Model HTM-01 Base Module Appliance Harness Connector Water Leak Sensor Connector Pairing Button Module Status LED Module Wi-Fi Connector (remove protective label)
  • Page 11 HTE-01 Thermostat Operation To save energy, the display will turn off after a period of inactivity. Before making changes, press any button to activate the display, illuminating the screen. Changing Operating Mode: • Press the Mode button to change between: Thermostat will not generate heating or cooling demands.
  • Page 12 Changing Fan Speed: • Press the Fan button to scroll through fan speed options as shown in the following chart. System Type Mode Fan Sequence Cool PTAC (Packaged Terminal AC) Heat WSHP (Water-Source Heat Pump) Auto HWSHP (Hybrid Water-Source Heat Pump) Only Cool Heat...
  • Page 13 Alarm Operation: • When any base module detects water leakage, it will be reported to the thermostat which will display the following message: • Note: The number shown after indicates the base module which has detected a water leak from the Water Leak Sensor Cable.
  • Page 14 Compressor Short Cycle Delay Protection: The HTE-01 Thermostat has a built in short cycle delay to protect the compressor. The Programming Guide describes how to change this delay from its default value of 5 minutes to as low as 1 minute.
  • Page 15 Schedule Setup: Press & hold “Mode” & “Fan” The display shows the number until a sound is played (3 seconds), of base modules currently paired. then release. Press “Mode” to scroll back to the When prompted to Schedule Parameter and use the Use the buttons button to toggle schedule...
  • Page 16 • Choose Schedule Type Display Description Action when “Fan” pressed MF – Set periods* Weekday (MF) or Weekend (SS) SS – Set periods* Same schedule Set periods* throughout the week Different schedule MO, TU, WE, TH, FR, SA, SU each day –...
  • Page 17 To disable a period, press After the 6th period is Once all periods and day button until programmed, the HTE-01 groups have been pro- is displayed. Thermostat will move to grammed, a prompt to the next day or group, Update will be displayed.
  • Page 18 Power Operation Battery Installation Please insert 2 AA Alkaline batteries (included.) High performance lithium batteries may be used and are recommended on commercial applications. When the battery icon starts flashing and it shows the or Replace icons, the batteries should be replaced immediately to prevent system shutdown.
  • Page 19 Model Specifications Model HTE-01 Thermostat Temperature Units °C or °F Operating Temperature 32°F - 99°F / 0°C - 40°C Indoor Temperature 32°F - 113°F / 0°C - 45°C Measurement Range Hardwired: 18 to 30 VAC, NEC Class II, Power Source 50/60 Hz, 65 mA @ 24 VAC Battery: 3.0 VDC, (2) AA batteries...
  • Page 20 Smarter Control Solutions. Designed and Engineered in New York. U.S. Registered Trademark. Patents pending www.habitattechnologies.com HC-UM-HTE-01-HTM-01-2020.05 v2...
