  • Page 1 Smarter Control Solutions. Operation Manual...
  • Page 2 About This Manual This manual uses special attention icons to alert the user of (1) Important safety concerns, (2) Instructions on proper operation of control functions and (3) Installation/set up information. Safety: Indicates a condition which may cause severe personal injury, death, or major property damage.

  • Page 3: Table Of Contents

    Habitat Technologies Thermostat Model: HTE-01 330 East 38th Street, Suite 530 Base Module Model: HTM-01 New York, NY 10016-0444 Customer Service Toll Free: 1-800-717-1682 Web Site: www.habitattechnologies.com customerservice@habitat.support Manual Table of Contents About This Manual System Overview Home Screen Display & Controls...

  • Page 4: System Overview

    Installation & Pairing Manual for the correct procedure. A single Model HTE-01 thermostat can control up to eight air conditioning units equipped with Model HTM-01 base modules. The range between the thermostat and the base modules can be...
  • Page 5 System Overview - Dip Switch Configurations PTAC (Packaged Terminal Unit) 1 – Factory Default 2 – (Fan Coil Unit / Mini-Split) 3 – (Heat Pump) 4 – (Hybrid Heat Pump) UNTY 5 – (Unitary AC/Furnace) O/B Terminal Selection 6 – (Heat Pump Only) For heat pump installations, dip switch #6 must be set to match the appliance changeover valve.

  • Page 6: Home Screen Display & Controls

    Home Screen...
  • Page 7 Celsius or Fahrenheit units Mode status Emergency heat indication Additional system type text Fan speed indication 1 - Schedule must be activated for schedule status to be displayed. See the Habitat programming guide for information on setting up a schedule.

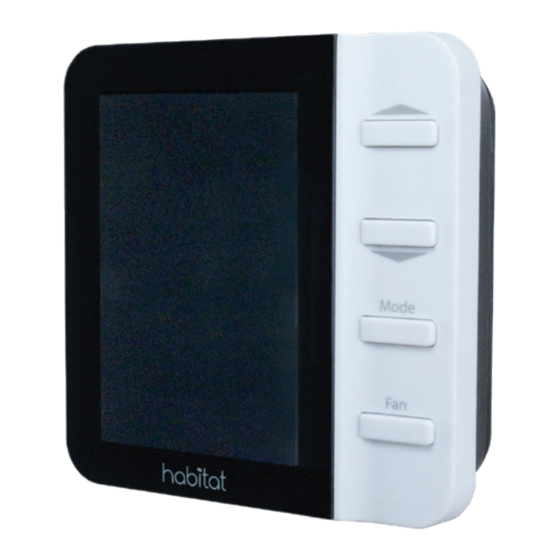

  • Page 8 HTE-01 Thermostat Controls Front View Bottom View...
  • Page 9 LCD Display – See preceding pages for detailed descriptions of the display icons. – Increase or Decrease the target temperature set point. Changing the target set point: • Press the button while in Auto, Heat or Cool Modes. • If a schedule is programmed, “Override” is displayed below the time indicating that the current target setpoint will be maintained until the: - Next schedule period...
  • Page 10 HTM-01 Base Module Connections and Controls Appliance Harness Connector Water Leak Sensor Connector Pairing Button Module Status LED Module Wi-Fi Connector (remove protective label)
  • Page 11 This page intentionally left blank.

  • Page 12: Hte-01 Thermostat Operation

    HTE-01 Thermostat Operation To save energy, the display will turn off after a period of inactivity. Before making changes, press any button to activate the display, illuminating the screen. Changing Operating Mode: • Press the Mode button to change between: Thermostat will not generate heating or cooling demands.

  • Page 13: Changing Fan Speed

    Changing Fan Speed: • Press the Fan button to scroll through fan speed options as shown in the following chart. System Type Mode Fan Sequence Cool Heat PTAC (Packaged Terminal AC) Auto HP (Heat Pump) HHP (Hybrid Heat Pump) Only Cool Heat Auto...

  • Page 14: Alarm Operation

    Alarm Operation: • When When any base module detects water leakage, it will be reported to the thermostat which will display the message shown. Note: The number shown after indicates the base module which has detected a water leak from the Water Leak Sensor Cable.

  • Page 15: Compressor Short Cycle Protection; Cooling Fan Delay

    Compressor Short Cycle Delay Protection: The HTE-01 Thermostat has a built in short cycle delay to protect the compressor. The Programming Guide describes how to change this delay from its default value of 5 minutes to as low as 1 minute.

  • Page 16: Keypad Lock

    This function locks the keypad to prevent users from changing the set point temperature, operating mode, or fan speed. Enable or disable the Keypad Lock function in the Administrative Parameters menu. (See the latest version of the Habitat Programming Guide: HC-PG-HTE-01-HTM-01). To lock the keypad:...

  • Page 17: Setback/Eco Mode

    Setback/eco mode: This function saves energy and money by changing the heating and/or cooling set points to an economical preset temperature when the space is unoccupied. The eco mode may be turned on or off manually with the keypad using the parameter settings, through the mobile application, or with an occupancy sensor.

  • Page 18: Setback Temperatures

    Setback Temperatures: Use the Use the buttons to buttons to set set the HEAT Set the COOL Set Point. Point. Press Fan to Press Fan to select. select. To exit the Parameters Setup, hold down the Mode and Fan buttons until a beep sounds (3 seconds).

  • Page 19: Schedule Setup

    Schedule Setup: Press & hold Mode & Fan The display will show the number until a sound is played (3 seconds), of base modules currently paired. then release. Press Mode to scroll back to the When prompted to Schedule Parameter and use the Use the buttons button to toggle schedule...
  • Page 20 • Choose Schedule Type Display Description Action when “Fan” pressed MF – Set periods* Weekday (MF) or Weekend (SS) SS – Set periods* Same schedule Set periods* throughout the week Different schedule MO, TU, WE, TH, FR, SA, SU each day –...
  • Page 21 To disable a period, press After the 6th period is Once all periods and day button until programmed, the HTE-01 groups have been is displayed. Thermostat will move to programmed, a prompt to the next day or group, Update will be displayed.

  • Page 22: Power Operation

    Power Operation Battery Installation Please insert 2 AA Alkaline batteries (included.) High performance lithium batteries may be used and are recommended on commercial applications. When the battery icon starts flashing and it shows the or Replace icons, the batteries should be replaced immediately to prevent system shutdown.

  • Page 23: Model Specifications

    Model Specifications Model HTE-01 Thermostat Temperature Units °C or °F Display Temperature Range 32°F - 99°F / 0°C - 40°C Hardwired: 18 to 30 VAC, NEC Class II, Power Source 50/60 Hz, 65 mA @ 24 VAC Battery: 3.0 VDC, (2) AA batteries 32°F –...

  • Page 24: Designed And Engineered In New York

    Smarter Control Solutions. Designed and Engineered in New York. U.S. Registered Trademark. Patents pending www.habitattechnologies.com Internal use HC-UM-HTE-01-HTM-01-2020.11 v1...
