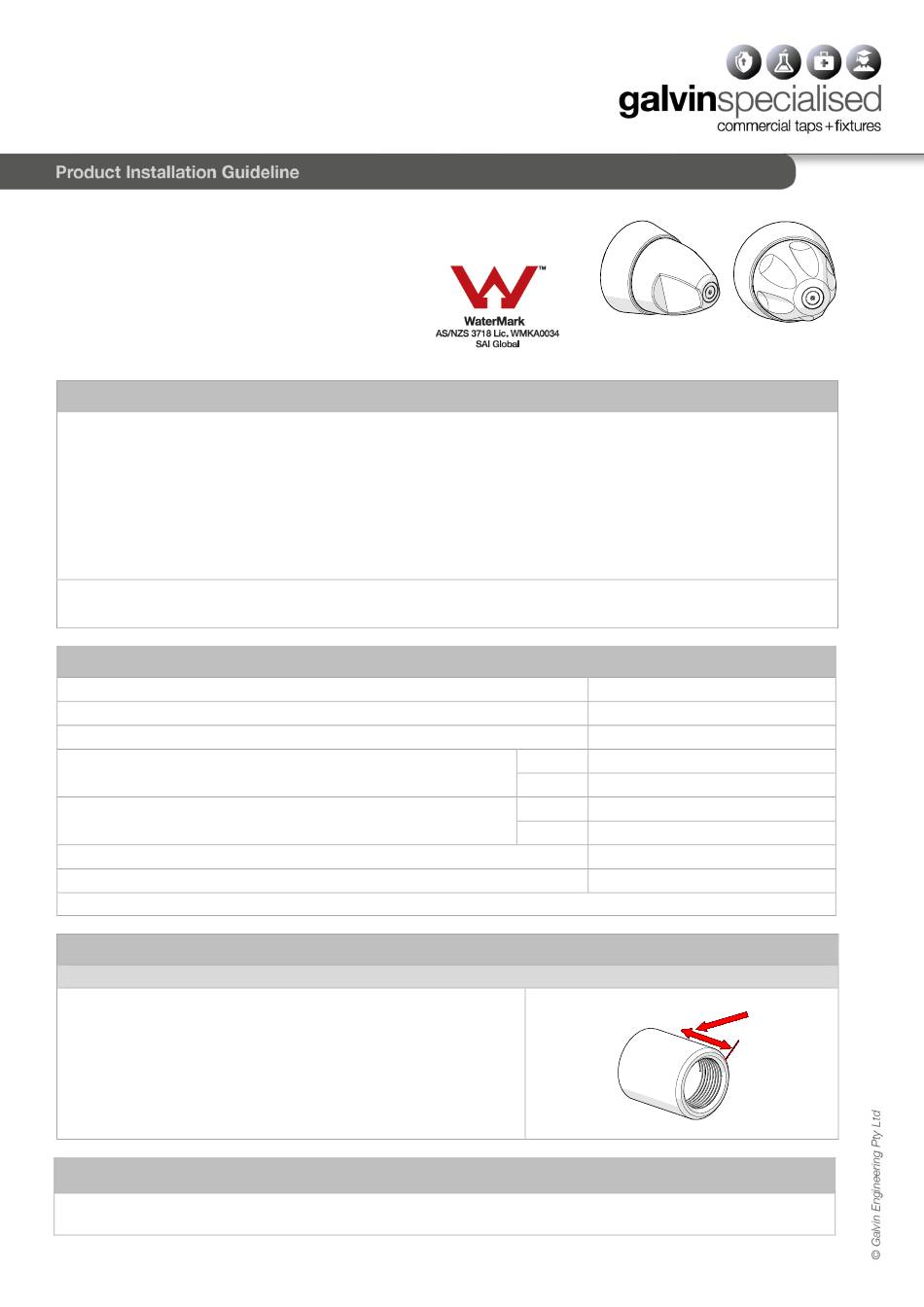

Safe-Cell
Manual Prison Tapware
PRODUCT CODES:
- 50117C
- 50133C
- 50120C
- 50138C
SPECIFICATIONS
−
Designed for maximum protection against vandalism, Safe-Cell
heavy duty components and feature rear installation. They are also designed to be ligature resistant for
added safety.
−
The wall top assemblies are made of chrome plated brass.
−
Quarter turn ceramic disc.
−
Machined cold or hot identification button.
−
Anti-ligature design.
−
Available with either Ezy-Grip or Multi-Grip handle (as shown above).
IMPORTANT: All Safe-Cell
premises in good working order.
TECHNICAL DATA
Inlet
Outlet
Headwork
Working Pressure Range (kPa)
Working Temperature (°C)
Nominal Flow Rate (LPM)
Finish
NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without notice.
PRE-INSTALLATION
MOUNTING DETAILS
Wall body
−
Measure the depth that the body is recessed into the wall,
−
Wall body must be G5/8". If the depth is greater than 10mm
−
then contact Galvin Specialised on 1300 514 074 for 20mm
spindle extension (Item# 50190)
TOOLS REQUIRED
−
Spanner and hex key
−
Thread tape
®
Wall Top assemblies are tested in accordance with AS/NZS 3718 and leave our
Version 1, 10 November 2016, Page 1 of 4
Ezy-Grip
Handle
®
Wall Top Assemblies are made from
G5/8" BSP - Male
N/A
Ceramic
Min
50
Max
500
Min
5
Max
85
N/A
Chrome
Multi-Grip
Handle
