GalvinAssist
PRODUCT CODE:
−
105.70.09.01
SPECIFICATIONS
−
®
The GalvinAssist
Folding Shower Seat complies with minimum design, strength and dimension
requirements of AS 1428.1-2009.
TECHNICAL DATA
Features:
Fixings:
Finish:
NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without
notice.
DIMENSIONS
®

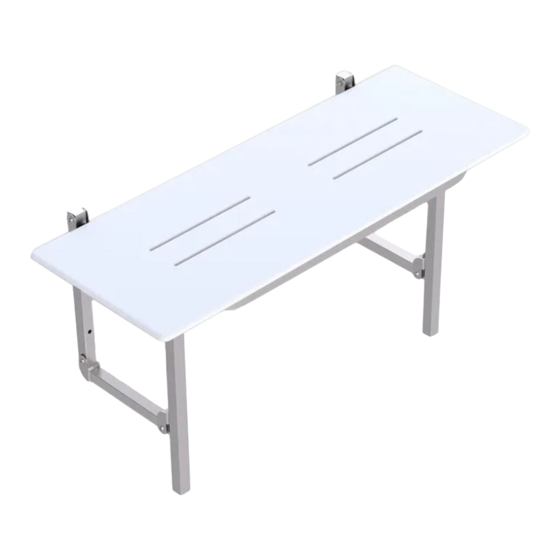

960 x 400 x 480 Folding Shower Seat
960 mm x 400 mm x 480 mm folding shower seat
Maximum load 160 kg
Slip resistant rounded edged seat deck with self-draining channels
Rails are supplied with stainless steel fixing screws
Satin Stainless Steel
Polar White UV stabilised HDPE rounded edge seat deck
Version 1, 23 June 2020, Page 1 of 3
Advertisement
Table of Contents
Related Manuals for Galvin Specialised GalvinAssist 105.70.09.01
Summary of Contents for Galvin Specialised GalvinAssist 105.70.09.01
- Page 1 Slip resistant rounded edged seat deck with self-draining channels Fixings: Rails are supplied with stainless steel fixing screws Satin Stainless Steel Finish: Polar White UV stabilised HDPE rounded edge seat deck NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without notice. DIMENSIONS...
- Page 2 Version 1, 23 June 2020, Page 2 of 3 MOUNTING IMPORTANT: MUST BE FITTED TO A SOLID WALL OR OTHER FIRM SURFACE. For fixing to timber, use only hexagon coach screws. For fixing to brickwork, block work or cncrete, use the hexagon screws with 10mm wall plugs or equivalent.
- Page 3 Version 1, 23 June 2020, Page 3 of 3 WARRANTY The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied. Galvin Engineering Pty.
