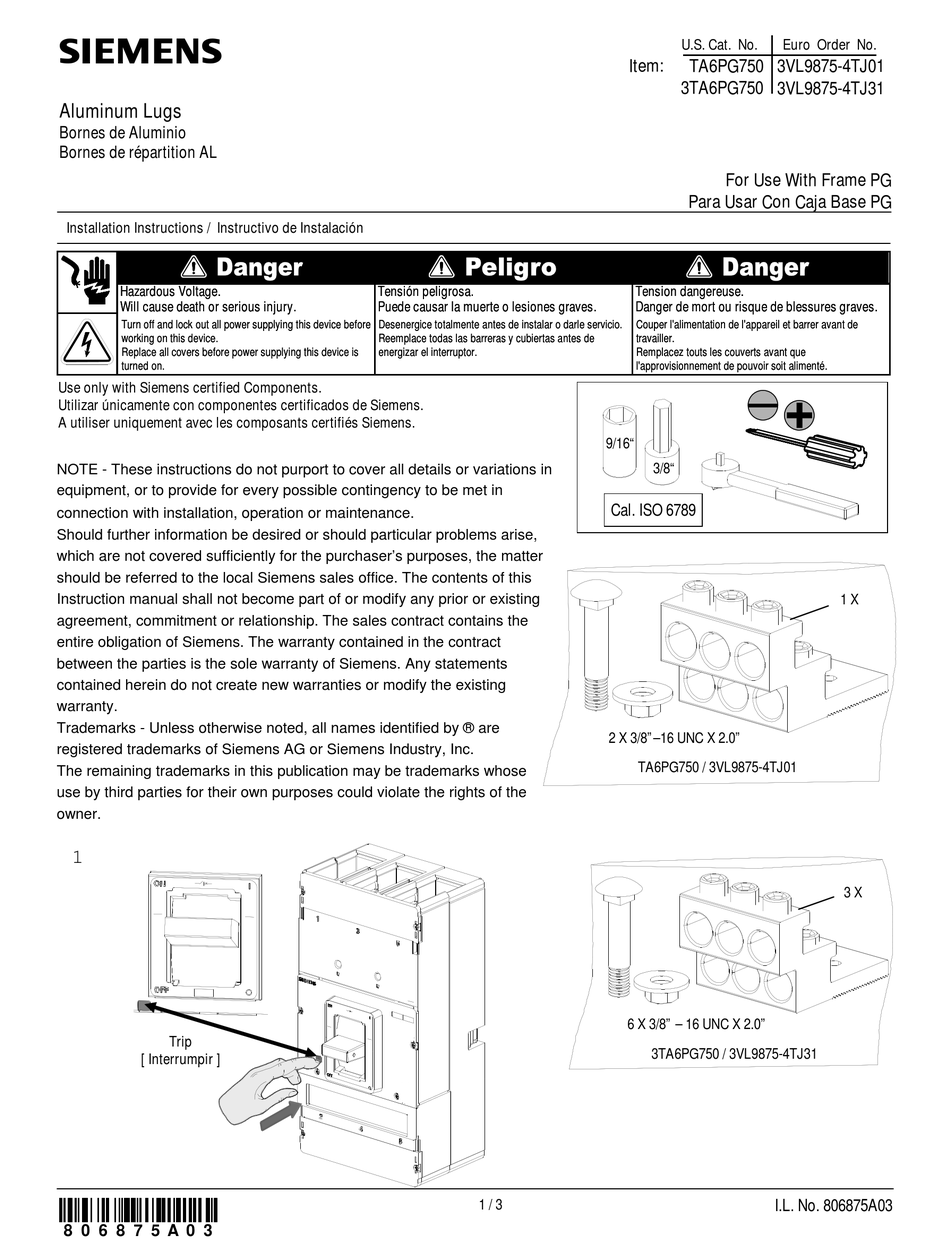

Siemens TA6PG750 Installation Instructions

s
Aluminum Lugs
Bornes de Aluminio
Bornes de répartition AL
Installation Instructions / Instructivo de Instalación
Hazardous Voltage. Hazardous Voltage.
Will cause death or serious injury. Will cause death or serious injury.
Turn off and lock out all power supplying this device before Turn off and lock out all power supplying this device before
working on this device. working on this device.
Replace all covers before power supplying this device is Replace all covers before power supplying this device is
turned on. turned on.
Use only with Siemens certified Components.
Utilizar únicamente con componentes certificados de Siemens.
A utiliser uniquement avec les composants certifiés Siemens.
NOTE - These instructions do not purport to cover all details or variations in
equipment, or to provide for every possible contingency to be met in
connection with installation, operation or maintenance.
Should further information be desired or should particular problems arise,
which are not covered sufficiently for the purchaser's purposes, the matter
should be referred to the local Siemens sales office. The contents of this
Instruction manual shall not become part of or modify any prior or existing
agreement, commitment or relationship. The sales contract contains the
entire obligation of Siemens. The warranty contained in the contract
between the parties is the sole warranty of Siemens. Any statements
contained herein do not create new warranties or modify the existing
warranty.
Trademarks - Unless otherwise noted, all names identified by ® are
registered trademarks of Siemens AG or Siemens Industry, Inc.
The remaining trademarks in this publication may be trademarks whose
use by third parties for their own purposes could violate the rights of the
owner.
1
Trip
[ Interrumpir ]
8 0 6 8 7 5 A 0 3
Tensión peligrosa. Tensión peligrosa.
Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves.
Desenergice totalmente antes de instalar o darle servicio. Desenergice totalmente antes de instalar o darle servicio.
Reemplace todas las barreras y cubiertas antes de Reemplace todas las barreras y cubiertas antes de
energizar el interruptor. energizar el interruptor.
1 / 3
U.S. Cat. No. Euro Order No.
Item: TA6PG750 3VL9875-4TJ01
3TA6PG750 3VL9875-4TJ31
For Use With Frame PG
Para Usar Con Caja Base PG
Tension dangereuse. Tension dangereuse.
Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
Couper l'alimentation de l'appareil et barrer avant de Couper l'alimentation de l'appareil et barrer avant de
travailler. travailler.
Remplacez touts les couverts avant que Remplacez touts les couverts avant que
l'approvisionnement de pouvoir soit alimenté. l'approvisionnement de pouvoir soit alimenté.
9/16"
3/8"
Cal. ISO 6789
2 X 3/8"–16 UNC X 2.0"
TA6PG750 / 3VL9875-4TJ01
6 X 3/8" – 16 UNC X 2.0"
3TA6PG750 / 3VL9875-4TJ31
I.L. No. 806875A03
1 X
3 X
