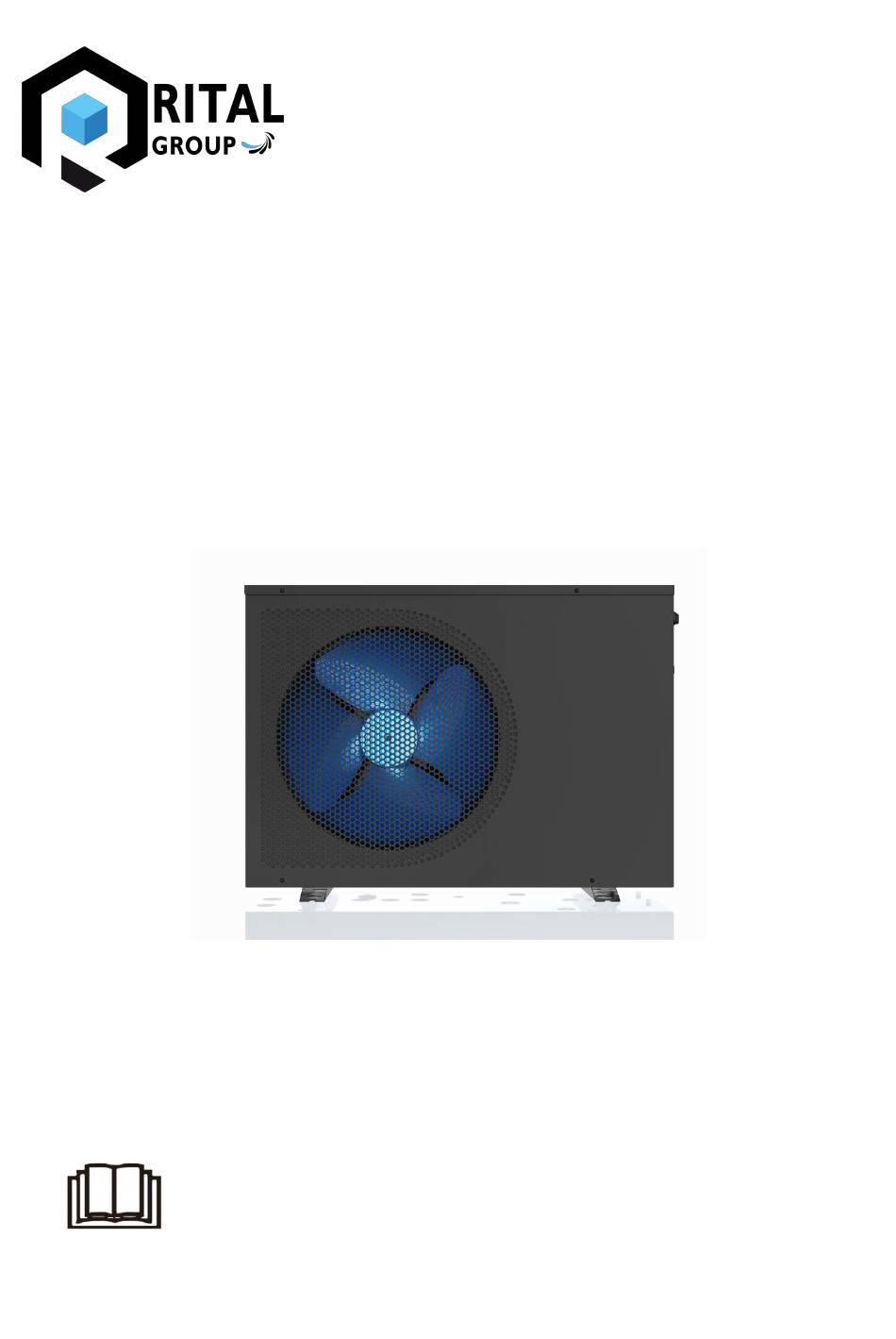

- Page 1 SWIMMING POOL HEAT PUMP Installation & Instruction Manual IMPORTANT NOTE: Thank you very much for purchasing our product. Before using your unit, please read this manual carefully and keep it for future reference.
-
Page 3: Table Of Contents
CONTENT 1. FOREWORD ..............................1 1.1. Statement .............................. 1 1.2. Safety Factors ............................1 2. OVER VIEW OF THE UNIT ..........................2 2.1. Accessories Supplied With the Unit ......................2 2.2. Dimensions of the Unit ......................... 3 2.3. Main Parts of the Unit ...........................4 2.4. -
Page 4: Foreword
1. FOREWORD 1.1. Statement To keep users under safe working condition and property safety, please follow the instructions below： Wrong operation may result in injury or damage; Please install the unit in compliance with local laws, regulations and standards; Confirm power voltage and frequency; The unit is only used with grounding sockets;... -
Page 5: Over View Of The Unit
electric shock. The water must not be poured directly from the unit. Do not let water to permeate into the electrical components. Warning Do not install the unit in a location where there may be flammable gas. If there is flammable gas around the unit, it will cause explosion. According to the instruction to carry out drainage system and pipeline work. -
Page 6: Dimensions Of The Unit
Rubber Blanket Water Pipe Joint ② ⑤ Drain Connector ③ 2.2. Dimensions of the Unit Dimension Unit：(mm) Model RI-F50SPR3INVM-TR RI-F70SPR3INVM-TR RI-F90SPR3INVM-TR RI-F110SPR3INVM-TR RI-F150SPR3INVM-TR 1000 RI-F180SPR3INVM-TR RI-F210SPR3TINVM-TR RI-F250SPR3TINVM-TR 1130 RI-F250SPR3TINVM-TR... -
Page 7: Main Parts Of The Unit
2.3. Main Parts of the Unit Front plate Right plate Top cover Handle Electrical box cover Motor controller / display Electrical box Motor support EEV component Left plate Middle plate Right plate Compressor Evaporator Four way valve Back plate Titanium heat exchanger Pillar Electrical Box Cover Main Board... -
Page 8: Parameter Of The Unit
2.4. Parameter of the Unit Table-1 Model：RI 50SPR3INVM-TR 70SPR3INVM-TR 90SPR3INVM-TR Ambient Temp.: (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temp.: 26°C/28°C. Heating Capacity (kW) 1.51~5.52 1.5~7.21 1.8~9.48 Power Input (kW) 0.09~0.82 0.09~1.09 0.11~1.44 16.6~6.7 16~6.6 16.4~6.6 Heating Capacity (kW) 5.52 7.21 9.48 Boost Mode Heating Capacity (kW) Smart Mode 8.91... - Page 9 Table-2 Model:RI 110SPR3INVM-TR 150SPR3INVM-TR 180SPR3INVM-TR Ambient Temp.: (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temp.: 26°C/28°C. Heating Capacity (kW) 2.8~11.51 3.48~15.3 4.34~18.1 Power Input (kW) 0.17~1.74 0.22~2.35 0.27~2.81 16.5~6.6 15.9~6.5 16.1~6.4 Heating Capacity (kW) 11.51 15.3 18.1 Boost Mode Heating Capacity (kW) 11.55 14.01 Smart Mode...
- Page 10 Table-3 Model:RI 210SPR3TINVM-TR 250SPR3TINVM-TR 280SPR3TINVM-TR Ambient Temp.: (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temp.: 26°C/28°C. Heating Capacity (kW) 4.72~21.21 5.05~25.28 5.4~28.06 Power Input (kW) 0.29~3.26 0.31~3.89 0.33~4.32 16.2~6.5 16.2~6.5 16.3~6.51 Heating Capacity (kW) 21.21 25.28 28.06 Boost Mode 6.51 Heating Capacity (kW) 20.4 22.61 Smart Mode...
-
Page 11: Installation And Connection
3. INSTALLATION AND CONNECTION WARNING: The heat pump must be installed by a professional team. The users are not qualified to install by themselves, otherwise the heat pump might be damaged and risky for users’ safety. This section is provided for information purposes only and must be checked and adapted if necessary according to the actual installation conditions. -
Page 12: Installation Instruction
2.In order to guarantee the heating efficiency, the water pipe length should be ≤10m between the pool and the heat pump. 3.3. Installation Instruction 3.3.1 Pre-requirements Equipment necessary for the installation of your heat pump: Power supply cable suitable for the unit’s power requirements. A By-Pass kit and an assembly of PVC tubing suitable for your installation as well as stripper, PVC adhesive and sandpaper. -
Page 13: Location And Space
3.3.3 Location and Space Please comply with the following rules concerning the choice of heat pump location. The unit’s future location must be easily accessible for convenient operation and maintenance. It must be installed on the ground, fixed ideally on a level concrete floor. Ensure that the floor is sufficiently stable and can support the weight of the unit. -
Page 14: Electrical Installation
In places open to the public, it is mandatory to install an emergency stop button close to the heat pump. Power Supply Wires Model Electricity Supply Cable Diameter Specification RI-F50SPR3INVM-TR 3G 1.5mm² AWG 16 RI-F70SPR3INVM-TR 3G 1.5mm² AWG 16 RI-F90SPR3INVM-TR 3G 2.5mm²... -
Page 15: Electrical Connection
Step 1: Detach electrical side panel by a screwdriver to access electrical terminal block. Step 2: Insert cable into heat pump unit port. Step 3: Connect power supply cable to terminal block according to the diagram below. RI-F50SPR3INVM-TR, RI-F70SPR3INVM-TR, RI-F90SPR3INVM-TR, RI-F110SPR3INVM-TR, RI-F150SPR3INVM-TR, RI-F180SPR3INVM-TR RI-F210SPR3INVM-TR, RT-F250SPR3INVM-TR, RT-F280SPR3INVM-TR... -
Page 16: Trial After Installation
3.4. Trial After Installation WARNING:Please check all the wiring carefully before turning on the heat pump. 3.4.1 Inspection Before Trial Running Before running test, confirm below items and write √ in block; Correct unit installation Power supply voltage is the same as unit rated voltage ... -
Page 17: Remote Controller Operation Guidance
4. REMOTE CONTROLLER OPERATION GUIDANCE 4.1. Control Panel Diagram Basic Icons Symbol Name Symbol Name Symbol Name On-off Heating Mode or Defrosting Silent Mode Cooling Mode Smart Mode Key lock Powerful Mode Down Fault Mode Wi-Fi... -
Page 18: Key Operating Instruction
4.2. Key Operating Instruction Item Operation Way Press the " " and " " keys for 3 seconds in the main interface to unlock Unlock /lock the screen. On-off In the main interface, press and hold the " " key for 3 seconds to turn on / off. In the main interface, press and hold the "... - Page 19 Item Operation Way Press " " for 3 seconds to enter the timing setting: Enter timing selection,the hour of "Timing On 1" will flash ,collect " " and " "can set hour; Click " " again to switch to the minute of "Timing On 1"...
-
Page 20: System Status Parameter Query
Item Operation Way Long press " "and" " for 5s to enter password interface, it shows 0000 in the time area; Press " " and " " to enter password, press “ ” to switch and confirm. Password 9615: After the input is complete, enter the state of manual frequency setting. -
Page 21: Trouble Shooting
4.4. Trouble Shooting Fault code and solution In the running process of unit, the unit may be faulted if the following code is displayed, please turn off power switch of the unit and turn on power switch of unit again after 30 seconds. The code is no longer displayed, that means the unit could be used again. - Page 22 Code Description Reservations Water inlet Er 15 Check the connection, change the sensor if necessary. temperature fault External coil Er 16 Check the connection, change the sensor if necessary. temperature fault Exhaust temperature Er 18 Check the connection, change the sensor if necessary. fault 1.Check DC fan motor.
- Page 23 Code Parameters Meaning Fault Solution 1. The compressor is temporarily overloaded (for example, liquid compression) 2. The program does not match the compressor Compressor Over-current 3. The U, V, and W lines of the compressor are inversely connected, and the compressor reverses 4.
- Page 24 Code Parameters Meaning Fault Solution 1. The compressor is temporarily overloaded (for example, liquid compression) 2. The program does not match the compressor Compressor current 3. The U, V, and W lines of the compressor are inversely connected, protection and the compressor reverses 4.
-
Page 25: Wi-Fi Settings
4.5. Wi-Fi Settings 4.6.1 Software Installation Method 1: Search ”Smart life” in your APP store ,install “ ”.Click “GET” to install. Method 2: Scan the QR code below. -
Page 26: Software Startup
4.6.2 Software Startup After installation,click “ ” on your desktop to start up Smart Life. 4.6.3 Software Registration and Configuration 1. Registration Users don’t have account can click “Register” to create an account: Register Enter your phone number Get Verification Code Enter Verification Code Set Code;... - Page 27 2. Account ID+ Password Login Existing accounts can be logged in directly, in the following order.
- Page 28 If you forget your password you can choose to login with your verification code and select "Forget Password": Enter your phone number Get verification code . After creating a home or logged in,enter the main interface of APP.
- Page 29 Note: Click the device to check the status, and you can set the operating mode, ON/OFF, timer. Click “＋” to add devices. 3. Wi-Fi Module configuration steps: Method 1 Step 1: EZ Mode: When power is on, press and hold the " "...
- Page 30 Step 4: After selecting "Smart Heat Pump", enter the interface of "Add Equipment", and confirm that the wire controller has selected the EZ mode. Enter the Wi-Fi connection interface, enter the Wi-Fi password of the mobile phone (it must be the same as the Wi-Fi of the mobile phone), click "Next", and then directly enter the connected status of the device.
- Page 31 Step 5: When “Scan devices”, “Register on Cloud”, “Initialize the device” are all completed, connect succeeds.
- Page 32 Method 2 Step 1 AP Mode: Press and hold the " " and " " keys at the same time for 3 seconds to enter the distribution network. The " " icon will flash slowly.. Step 2&3 Same with EZ Mode above. Step 4 After entering the add device interface, click "EZ Mode"...
- Page 33 Enter the mobile phone Wi-Fi connection interface, find the “SmartLife_XXXX” connection, and the APP will automatically enter the device connection status.
-
Page 34: Software Function Operation
Step 5 : Same as EZ mode above. Note: If the connection is failed, please enter the AP mode manually and reconnect according to the above steps. 4.6.4 Software Function Operation After the device is bound successfully, enter the operation interface of “Smart heat pump” (Device name, modifiable) ... - Page 35 Device sharing To share a bound device, the user should do so in the following order. After successful sharing, the list will be added to show the person shared If you want to delete the account you shared to, cross the selected account to the left,and delete it.
- Page 36 Enter the account of the shared, click "Done", and the share success list shows the newly added account of the Shared. The interface of the person to be shared is as follows. The received shared device is displayed.
- Page 37 Click it to operate and control the device. Mode settings Click “ ” on the main interface to switch modes,select what you need.
-
Page 38: Timer Setting
Timer setting 1.Click “ ” on the main interface to enter timer setting interface, as shown below, click to add timer. 2.After entering timer setting, swipe up/down to set timer,set up repeat weeks and on/off,then click “save” to save your settings as follows. -
Page 39: Device Removal
Hours Minutes Set the repetition Set power ON/OFF Save your modification 4.6.5 Device Removal Click “ ” on the top right corner of the main interface to enter the device details interface, and click “device removal” to enter EZ mode. Indicator light under“ ”... -
Page 40: Maintenance And Winterzing
5. MAINTENANCE AND WINTERZING 5.1. Maintenance WARNING:Before undertaking maintenance work on the unit, ensure that you have disconnected the electrical power supply. Cleaning a. The heat pump’s casing must be cleaned with a damp cloth. The use of detergents or other household products could damage the surface of the casing and affect its properties. - Page 44 Website: www.rital.com.tr Whatsapp: +90 530 936 74 97 Address: Baglarcesme mah. dogan araslı Bulv no:165 demirpark avm kat:2 ofis:35 Esenyurt İstanbul...
