Trolley jack 2tonne short chassis

Advertisement

Your new Trolley Jack is produced and manufactured to a high standard of dependability, and if correctly cared for, will give you years of trouble
free performance.
ImpORTANT: ReAD These INsTRucTIONs cARefully. NOTe The sAfe OPeRATIONAl ReQuIReMeNTs, WARNINGs AND cAuTIONs.
use ThIs JAck cORRecTly AND WITh cARe fOR The PuRPOse fOR WhIch IT Is INTeNDeD. fAIluRe TO DO sO MAy cAuse DAMAGe
AND/OR PeRsONAl INJuRy AND WIll INvAlIDATe The WARRANTy. ReTAIN These INsTRucTIONs fOR fuTuRe use.

1. sAfeTy PRecAuTIONs

 Ensure that the jack is in sound condition and good working order. Take action for immediate repair or replacement of damaged parts.
Use recommended parts only. Unapproved parts may be dangerous and will invalidate the warranty.
 Locate the jack in an adequate, well lit work area.
 Keep work area clean and tidy and free from unrelated materials.
 Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
 Place wedges under the wheels of the vehicle but ensure that the wheels of the jack can move freely.
 Ensure that the vehicle handbrake is engaged and switch off the engine.
 Ensure a minimum distance of 0.5m between vehicle tilt and static objects such as doors, walls, etc.
 Ensure all non-essential persons keep a safe distance whilst the jack is in use.
 Ensure that there are no passengers in the vehicle to be jacked up.
 Place jack under vehicle manufacturer's recommended lifting points (see vehicle handbook).
 Check that the lifting point is stable and centred on the jack saddle.
 Ensure that the jack wheels are free to move and that there are no obstructions.
 IMPORTANT! During the jacking operation ensure that you can always see the vehicle-to-jack saddle contact point.
 DANGER! Use the Jack for lifting only, NOT for supporting the lifted load.
 Use correctly rated axle stands under the vehicle before proceeding with any task.
 Ensure that there are no persons or obstructions beneath the vehicle before lowering.
 Use a qualified person to lubricate and maintain the jack.
 Confirm that the recommended hydraulic jack oil is used during maintenance.
 DO NOT operate the jack if it is damaged.
 DO NOT allow untrained persons to operate the jack.
 DO NOT exceed the rated capacity of the jack.
 DO NOT allow the vehicle to move during lifting and/or lowering.
 DO NOT use the jack to move vehicle.
 DO NOT jack vehicle if it may result in spillage of fuel, battery acid, or other dangerous substance.
 DO NOT work under the vehicle until axle stands have been correctly positioned.
 DO NOT use the jack for purposes other than which it is intended.
 DO NOT top up system with brake fluid. Use hydraulic jack oil only.
 DO NOT adjust the safety overload valve.
 When not in use store jack in a safe, dry, child proof area in the 'down' position.
2. INTRODucTION & sPecIfIcATION

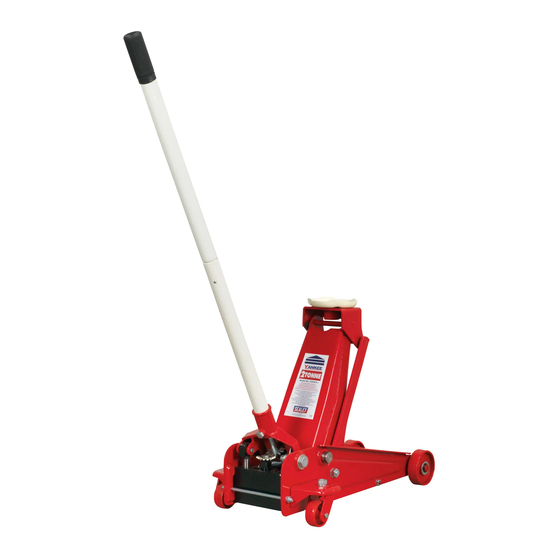

Professional and fully portable 2tonne trolley jack. Features American cog-type integral handle release.
Model No: ................................. 1250CX.V2
Capacity:................................... 2tonne
Minimum Saddle Height: .......... 150mm
Maximum Saddle Height: ......... 495mm
Maximum Chassis Height: ........ 165mm
Length:...................................... 580mm
Weight: ..................................... 28kg
3.

AsseMBly

3.1.
Assembly
3.1.1. Line up the holes in the two-piece handle and fasten with the assembly screw.
3.1.2. Loosen location bolt at the side of the handle base. Insert jack handle and tighten the bolt.

4. OPeRATING INsTRucTIONs

4.1.
Before first use
Before using the jack, purge the hydraulic circuit, in order to eliminate any air in the system,
by turning the handle anti-clockwise to open, and pumping 8 or 9 times (fig.1).
4.2.
Jacking
 WARNING! Before lifting ensure that Section 1 safety instructions are strictly followed.
4.2.1. Prepare the vehicle as described in the safety instructions, ensuring that the ground on which
the jack is to stand is level and solid (not tarmacadam).
4.2.2. Position the jack saddle under the vehicle manufacturer's recommended lifting point.
© Jack Sealey Ltd
INSTRUCTIONS FOR:
TROlley JAck 2TONNe shORT chAssIs
MODEL No: 1250cX.v2
Original Language Version
fig.1
1250CX.V2
Issue: 1 - 31/10/13
