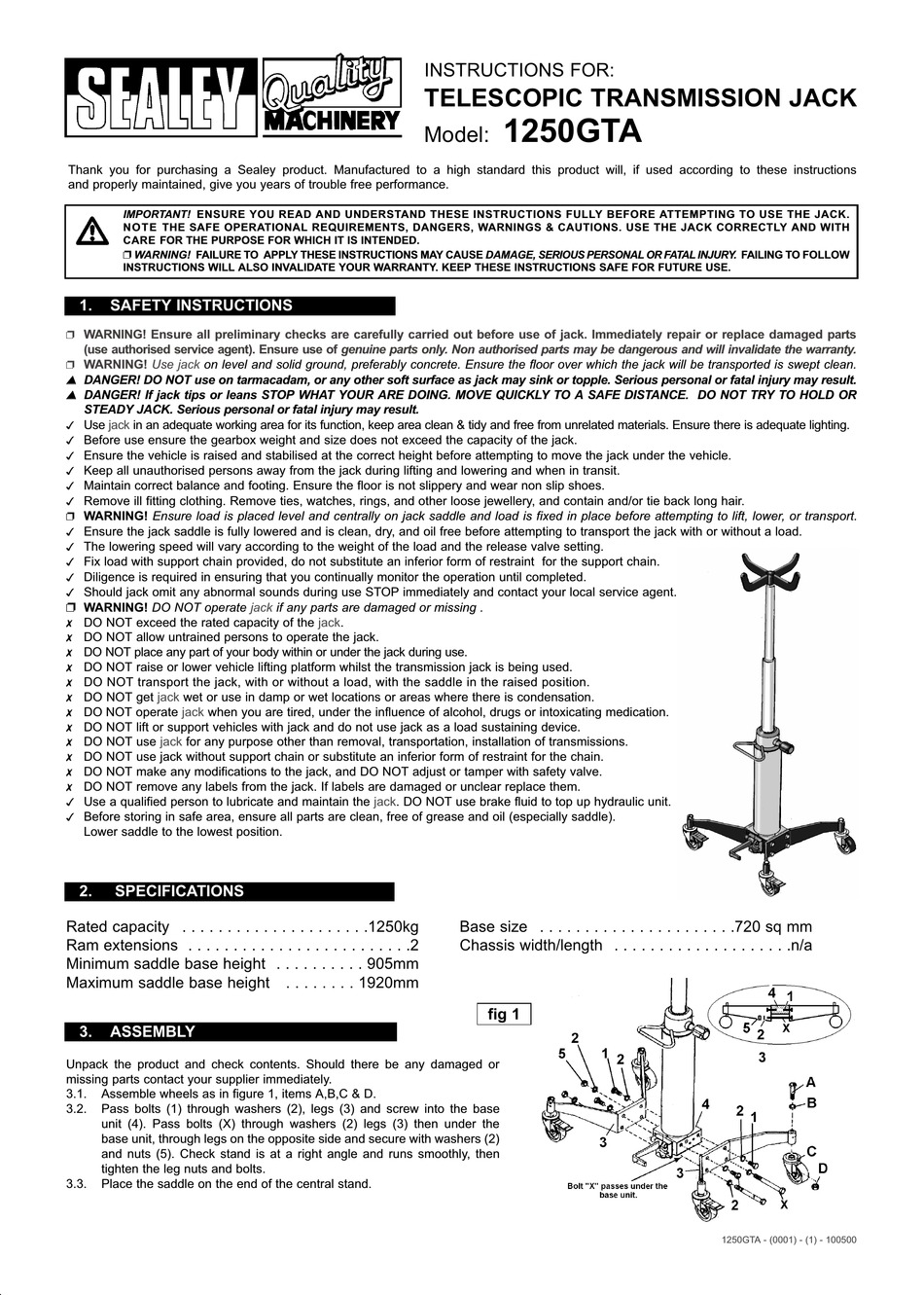

Sealey 1250GTA Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT! ENSURE YOU READ AND UNDERSTAND THESE INSTRUCTIONS FULLY BEFORE ATTEMPTING TO USE THE JACK.
NOTE THE SAFE OPERATIONAL REQUIREMENTS, DANGERS, WARNINGS & CAUTIONS. USE THE JACK CORRECTLY AND WITH
CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED.
F WARNING! FAILURE TO APPLY THESE INSTRUCTIONS MAY CAUSE DAMAGE, SERIOUS PERSONAL OR FATAL INJURY. FAILING TO FOLLOW
INSTRUCTIONS WILL ALSO INVALIDATE YOUR WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
WARNING! Ensure all preliminary checks are carefully carried out before use of jack. Immediately repair or replace damaged parts
F
(use authorised service agent). Ensure use of genuine parts only. Non authorised parts may be dangerous and will invalidate the warranty.
WARNING! Use
F
DANGER! DO NOT use on tarmacadam, or any other soft surface as jack may sink or topple. Serious personal or fatal injury may result.
I
s
DANGER! If jack tips or leans STOP WHAT YOUR ARE DOING. MOVE QUICKLY TO A SAFE DISTANCE. DO NOT TRY TO HOLD OR
I
s
STEADY JACK. Serious personal or fatal injury may result.
Use jack in an adequate working area for its function, keep area clean & tidy and free from unrelated materials. Ensure there is adequate lighting.
!
Before use ensure the gearbox weight and size does not exceed the capacity of the jack.
!
Ensure the vehicle is raised and stabilised at the correct height before attempting to move the jack under the vehicle.
!
Keep all unauthorised persons away from the jack during lifting and lowering and when in transit.
!
Maintain correct balance and footing. Ensure the floor is not slippery and wear non slip shoes.
!
Remove ill fitting clothing. Remove ties, watches, rings, and other loose jewellery, and contain and/or tie back long hair.
!
WARNING! Ensure load is placed level and centrally on jack saddle and load is fixed in place before attempting to lift, lower, or transport.
F
Ensure the jack saddle is fully lowered and is clean, dry, and oil free before attempting to transport the jack with or without a load.
!
The lowering speed will vary according to the weight of the load and the release valve setting.
!
Fix load with support chain provided, do not substitute an inferior form of restraint for the support chain.
!
Diligence is required in ensuring that you continually monitor the operation until completed.
!
Should jack omit any abnormal sounds during use STOP immediately and contact your local service agent.
!
F WARNING! DO NOT operate
DO NOT exceed the rated capacity of the jack.
%
DO NOT allow untrained persons to operate the jack.
%
DO NOT place any part of your body within or under the jack during use.
%
DO NOT raise or lower vehicle lifting platform whilst the transmission jack is being used.
%
DO NOT transport the jack, with or without a load, with the saddle in the raised position.
%
DO NOT get jack
%
DO NOT operate
%
DO NOT lift or support vehicles with jack and do not use jack as a load sustaining device.
%
DO NOT use jack
%
DO NOT use jack without support chain or substitute an inferior form of restraint for the chain.
%
DO NOT make any modifications to the jack, and DO NOT adjust or tamper with safety valve.
%
DO NOT remove any labels from the jack. If labels are damaged or unclear replace them.
%
Use a qualified person to lubricate and maintain the jack. DO NOT use brake fluid to top up hydraulic unit.
!
Before storing in safe area, ensure all parts are clean, free of grease and oil (especially saddle).
!
Lower saddle to the lowest position.
2. SPECIFICATIONS
Rated capacity . . . . . . . . . . . . . . . . . . . . .1250kg
Ram extensions . . . . . . . . . . . . . . . . . . . . . . . . .2
Minimum saddle base height . . . . . . . . . . 905mm
Maximum saddle base height . . . . . . . . 1920mm
3. ASSEMBLY
Unpack the product and check contents. Should there be any damaged or
missing parts contact your supplier immediately.
3.1. Assemble wheels as in figure 1, items A,B,C & D.
3.2. Pass bolts (1) through washers (2), legs (3) and screw into the base
unit (4). Pass bolts (X) through washers (2) legs (3) then under the
base unit, through legs on the opposite side and secure with washers (2)
and nuts (5). Check stand is at a right angle and runs smoothly, then
tighten the leg nuts and bolts.
3.3. Place the saddle on the end of the central stand.
s s
jack on level and solid ground, preferably concrete. Ensure the floor over which the jack will be transported is swept clean.
jack if any parts are damaged or missing .
wet or use in damp or wet locations or areas where there is condensation.
jack when you are tired, under the influence of alcohol, drugs or intoxicating medication.
for any purpose other than removal, transportation, installation of transmissions.
INSTRUCTIONS FOR:
TELESCOPIC TRANSMISSION JACK
1250GTA
Model:
Base size . . . . . . . . . . . . . . . . . . . . . .720 sq mm
Chassis width/length . . . . . . . . . . . . . . . . . . . .n/a
fig 1
1250GTA - (0001) - (1) - 100500
