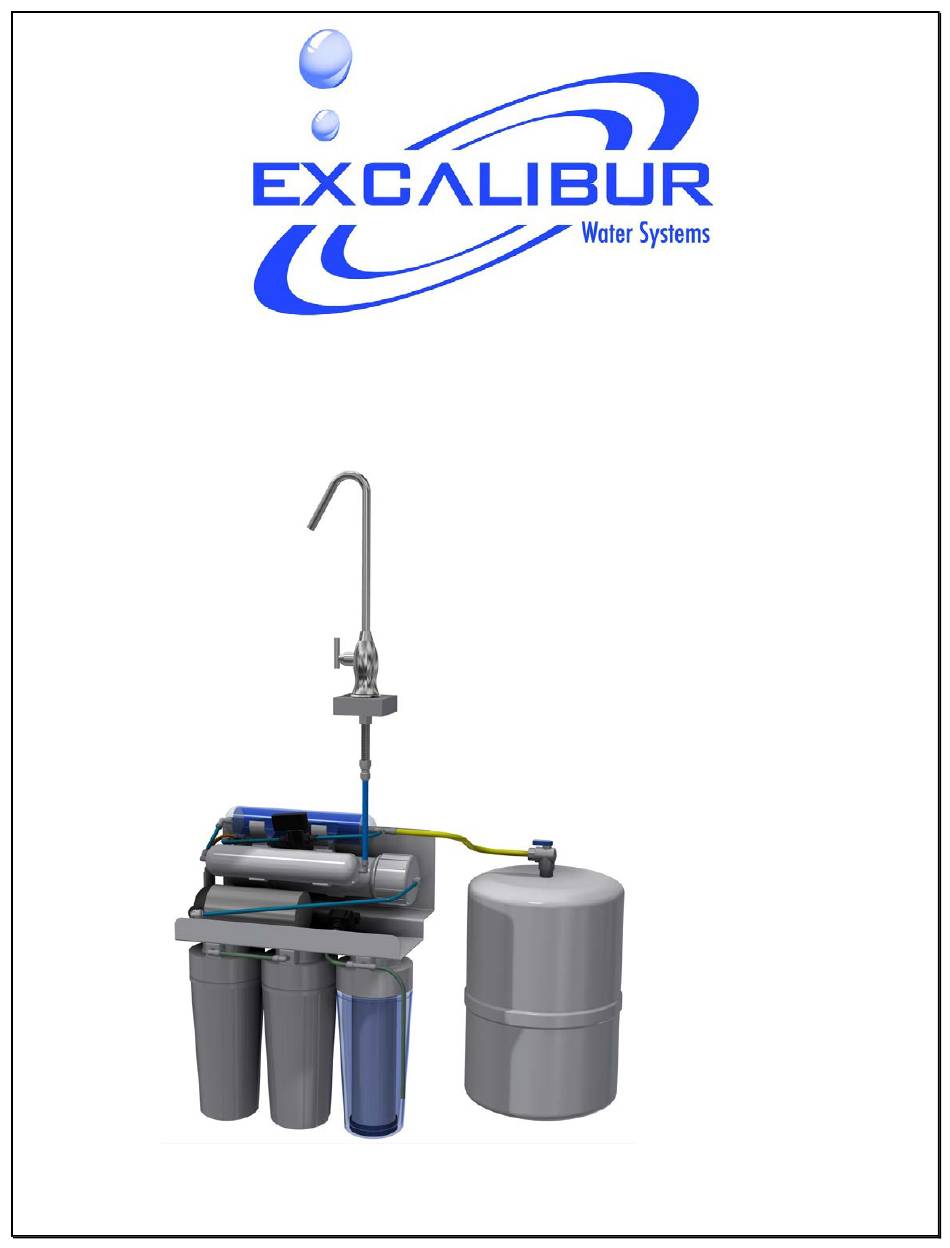

- Page 1 REVERSE OSMOSIS SYSTEMS WITH BOOSTER PUMPS INSTALLATION AND USER GUIDE MODELS: - EWR 5100C EWR 5100E EWR 7100P BARRIE ● ONTARIO ● CANADA 705.733.8900 WWW.EXCALIBURWATER.COM...
-
Page 2: Table Of Contents
REVERSE OSMOSIS INSTALLATION AND USER GUIDE TABLE OF CONTENTS Introduction ............................2 Filtration Stages ............................ 2 Mechanical Filtration ........................2 Carbon Block ..........................2 Ceramic Filter ..........................2 Reverse Osmosis Membrane ......................2 Enalka Filter (Premium Model Only) ..................... 2 In-Line Activated Carbon-Coconut Shell Post Filter .............. -
Page 3: Introduction
REVERSE OSMOSIS INSTALLATION AND USER GUIDE INTRODUCTION Your new Reverse Osmosis Drinking Water System uses a combination of filtration technologies to reduce unwanted contaminants in your water supply. Your Reverse Osmosis System uses the 5 filtration stages which combines to give you the best in clear sparkling Reverse Osmosis water. FILTRATION STAGES Mechanical Filtration The Reverse Osmosis Turbidity Pre-filter will remove suspended matter that are larger than 5-micron as... -
Page 4: Reverse Osmosis Components
REVERSE OSMOSIS INSTALLATION AND USER GUIDE REVERSE OSMOSIS COMPONENTS Automatic Reverse Osmosis Shut Off The Reverse Osmosis pressure switch senses when the product water tank is full and closes the feed water supply to prevent excess Reverse Osmosis reject water going to drain when the Reverse Osmosis System is not producing water. -
Page 5: Chemistry Requirements
REVERSE OSMOSIS INSTALLATION AND USER GUIDE Chemistry Requirements Hardness (CaCo < 170 mg/L (<10 gpg) Iron (Fe) < 0.1 mg/L Manganese (Mn) < 0.05 mg/L Hydrogen Sulfide (H 0.00 mg/L INSTALLATION Tools Required Tape Measure 10. Safety Glasses Phillips and Flat Head screwdrivers 11. - Page 6 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Under Sink Installation BARRIE ● ONTARIO ● CANADA 705.733.8900 WWW.EXCALIBURWATER.COM...
- Page 7 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Remote Installation (Basement) BARRIE ● ONTARIO ● CANADA 705.733.8900 WWW.EXCALIBURWATER.COM...
-
Page 8: Installation Instructions
REVERSE OSMOSIS INSTALLATION AND USER GUIDE Drinking Faucet Reverse Osmosis faucet should be placed near the sink where drinking water is normally obtained. Convenience of use (filling of water pitchers and glasses), and an open area beneath the Reverse Osmosis faucet under the sink for attaching product and Reverse Osmosis drain tubing are considerations. - Page 9 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Faucet Installation Installation on Stainless steel sink Center punch the hole to provide a starting point for the drill. • • Start with a smaller drill as a pilot and then drill a 1/2” diameter hole to accept the faucet to go through the countertop.
- Page 10 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Feed Water Installation Self-Piercing feed water saddle valve Decide on location. Do NOT connect Reverse Osmosis to a hot water feed line. Water over 100 F may cause permanent damage to the Reverse Osmosis Membrane. Shut the water supply off and drain the line by opening the faucet installed downstream of this •...
- Page 11 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Figure: - Angle Valve Adapter Holding Tank • Check the Reverse Osmosis tank air pre-charge pressure. Make sure it is between 5 to 7 psig. • Pull the cap/plug off the top of the Reverse Osmosis tank where the Reverse Osmosis Tank Shut-Off should go.
- Page 12 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Drain Clamp Assembly Choose the Reverse Osmosis drain outlet location. The following are instructions for discharging in the sink drain pipe. • Position the Drain Clamp on the sink drain pipe above the drain trap. Allow room for drilling. Tighten securely.
-
Page 13: Piping And Instrumentation Drawing
REVERSE OSMOSIS INSTALLATION AND USER GUIDE PIPING AND INSTRUMENTATION DRAWING BARRIE ● ONTARIO ● CANADA 705.733.8900 WWW.EXCALIBURWATER.COM... -
Page 14: Reverse Osmosis Stages
REVERSE OSMOSIS INSTALLATION AND USER GUIDE REVERSE OSMOSIS STAGES Model Number: - EWR 5100C Stage# Description Sediment Filter 5-Micron Carbon Block 10-Micron Carbon Block 5-Micron Booster Pump RO Membrane 100GPD Coconut Shell Carbon Polisher Model Number: - EWR 5100E Stage#... -
Page 15: Operation And Maintenance
REVERSE OSMOSIS INSTALLATION AND USER GUIDE CAUTION: The Reverse Osmosis Membrane is shipped with a preservative in it (0.5% sodium metabisulfite). This will be rinsed out with the first water produced. Allow the Holding Tank to fill (overnight) and discard the first two full tanks of production. When the Faucet is first opened, expect air and carbon fines (very fine black powder) from the In-Line Activated Carbon Post Filter to be rinsed out. - Page 16 REVERSE OSMOSIS INSTALLATION AND USER GUIDE • Close the Reverse Osmosis Feed Water Ball Valve by turning fully clockwise and open the Reverse Osmosis Dispensing Faucet by lifting the handle. Allow the Reverse Osmosis Holding Tank to empty. Loosen and remove the Reverse Osmosis Sediment Pre-filter and the Activated Carbon Pre-filter •...
-
Page 17: Changing In-Line Activated Carbon Post Filter
REVERSE OSMOSIS INSTALLATION AND USER GUIDE Changing In-Line Activated Carbon Post Filter • Close the Reverse Osmosis Feed Water Ball Saddle by turning fully clockwise. Close the Reverse Osmosis Holding Tank Valve and then open the Reverse Osmosis Dispensing • Faucet to release the pressure. -
Page 18: Sanitizing The Reverse Osmosis System
REVERSE OSMOSIS INSTALLATION AND USER GUIDE Sanitizing the Reverse Osmosis System NOTE: The Reverse Osmosis system should be sanitized BEFORE installing the Reverse Osmosis Activated Carbon Pre-filter and the Reverse Osmosis Membrane. Use a drip pan to aid clean-up. Use a good quality unscented liquid chlorine household bleach. Fully close the feed water valve. -
Page 19: Rinsing The Reverse Osmosis System
REVERSE OSMOSIS INSTALLATION AND USER GUIDE Rinsing the Reverse Osmosis System • Slowly open the Reverse Osmosis Feed Water Saddle Valve fully counter clockwise. The Reverse Osmosis Holding Tank Valve should be open. The Reverse Osmosis System is now • making water. -
Page 20: Troubleshooting Guide
REVERSE OSMOSIS INSTALLATION AND USER GUIDE TROUBLESHOOTING GUIDE Troubleshooting Procedures Problem Possible Cause Solution a) Reverse Osmosis Feed Water Ball a) Open Valve or unclog Valve is plugged or closed b) Clogged Sediment Pre-filter or b) Replace Reverse Osmosis filters Activated carbon Pre-filter c) Low water pressure c) Reverse Osmosis feed water pressure must be... - Page 21 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Problem Possible Cause Solution a) Drain tubing is clogged a) Clear drain tubing 4) Drain water overflows at b) Drain clamp hole is misaligned b) Align with hole in the drain pipe the air gap faucet c) Excessive drain flow rate c) Replace Reverse osmosis drain restrictor a) Clogged sediment Pre-filter or...
-
Page 22: Replacement Part Numbers
REVERSE OSMOSIS INSTALLATION AND USER GUIDE Replacement Part numbers EWR 5100C (6 Stage 100GPD With Booster Pump) Changing Item # Part Number Description Frequency SMF PP1005 Polypropylene 5-Micron Sediment Filter 6 Months 6 Months SMF CBC1010 Carbon Block 10in 10-Micron... - Page 23 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Model # : - EWR 5100C BARRIE ● ONTARIO ● CANADA 705.733.8900 WWW.EXCALIBURWATER.COM...
- Page 24 REVERSE OSMOSIS INSTALLATION AND USER GUIDE EWR 5100E (6 Stage 100GPD with Pump and Enalka) Changing Item # Part Number Description Frequency SMF PP1005 Polypropylene 5-Micron Sediment Filter 6 Months 6 Months SMF CBC1010 Carbon Block 10in 10-Micron 6 Months SMF CBC1005 Carbon Block 10in 5-Micron 6 Months...
- Page 25 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Model # : - EWR 5100E BARRIE ● ONTARIO ● CANADA 705.733.8900 WWW.EXCALIBURWATER.COM...
- Page 26 REVERSE OSMOSIS INSTALLATION AND USER GUIDE EWR 7100P (7 Stage 100GPD With Booster Pump) Changing Item # Part Number Description Frequency SMF PP1005 Polypropylene 5-Micron Sediment Filter 6 Months SMF CBC1005 Carbon Block 10in 5-Micron 6 Months CRF W9220402 Ceramic 0.9-Micron Cartridge 6 Months SMF AICRO Coconut Shell Carbon 2"x10"...
- Page 27 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Model # : - EWR 7100P BARRIE ● ONTARIO ● CANADA 705.733.8900 WWW.EXCALIBURWATER.COM...
