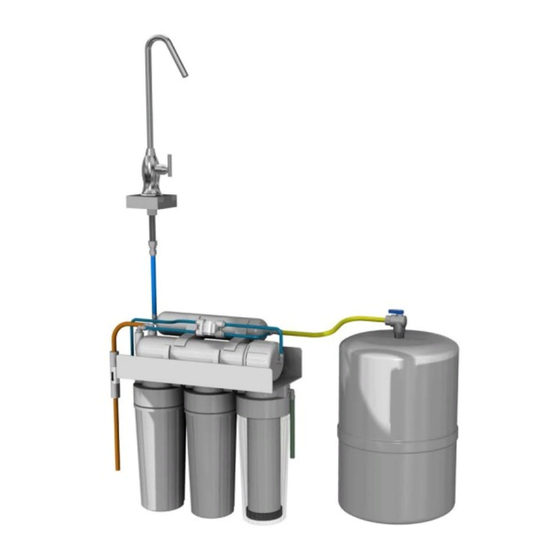

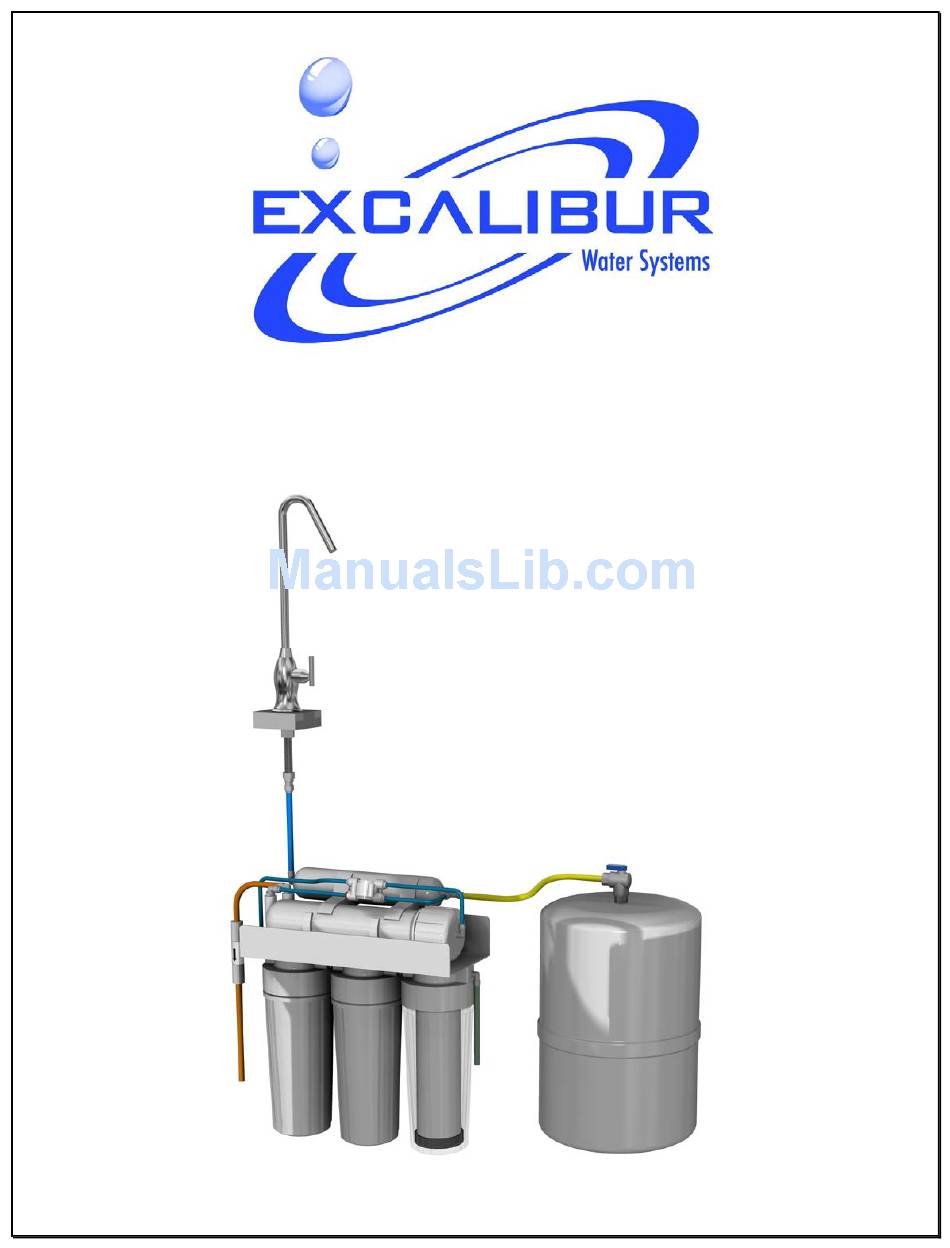

- Page 1 REVERSE OSMOSIS SYSTEM EWR 5075C & EWR 5075E BARRIE ● ONTARIO ● CANADA 705.733.8900 WWW.EXCALIBURWATER.COM...
-
Page 2: Table Of Contents
REVERSE OSMOSIS INSTALLATION AND USER GUIDE TABLE OF CONTENTS Introduction ............................2 Filtration Stages ............................ 2 Mechanical Filtration ........................2 Carbon Blocks ..........................2 Reverse Osmosis Membrane ......................2 Enalka Filter (Premium Model Only) ..................... 2 In-Line Activated Carbon-Coconut Shell Post Filter ..............2 5 Stage Reverse Osmosis Components .................... -
Page 3: Introduction
REVERSE OSMOSIS INSTALLATION AND USER GUIDE INTRODUCTION Your new Reverse Osmosis Drinking Water System uses a combination of filtration technologies to reduce unwanted contaminants in your water supply. Your Reverse Osmosis System uses the 5 filtration stages which combines to give you the best in clear sparkling Reverse Osmosis water. FILTRATION STAGES Mechanical Filtration The Reverse Osmosis Turbidity Pre-filter will remove suspended matter that are larger than 5-micron as... -
Page 4: Faucet
REVERSE OSMOSIS INSTALLATION AND USER GUIDE Faucet The reverse osmosis faucet is a designer brushed nickel high flow 3/8” design goose neck with ceramic disc valve. Holding Tank The reverse osmosis holding tank is 3.2-gallons plastic designed for the storage and repressurization of reverse osmosis pure drinking water with valve. - Page 5 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Under Sink Installation BARRIE ● ONTARIO ● CANADA 705.733.8900 WWW.EXCALIBURWATER.COM...
- Page 6 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Remote Installation (Basement) BARRIE ● ONTARIO ● CANADA 705.733.8900 WWW.EXCALIBURWATER.COM...
-
Page 7: Installation Instructions
REVERSE OSMOSIS INSTALLATION AND USER GUIDE Drinking Faucet Reverse Osmosis faucet should be placed near the sink where drinking water is normally obtained. Convenience of use (filling of water pitchers and glasses), and an open area beneath the Reverse Osmosis faucet under the sink for attaching product and Reverse Osmosis drain tubing are considerations. - Page 8 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Faucet Installation Installation on Stainless steel sink Center punch the hole to provide a starting point for the drill. • • Start with a smaller drill as a pilot and then drill a 1/2” diameter hole to accept the faucet to go through the countertop.
- Page 9 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Feed Water Installation Self-Piercing feed water saddle valve Decide on location. Do NOT connect Reverse Osmosis to a hot water feed line. Water over 100 F may cause permanent damage to the Reverse Osmosis Membrane. Shut the water supply off and drain the line by opening the faucet installed downstream of this •...
- Page 10 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Figure: - Angle Valve Adapter Holding Tank • Check the Reverse Osmosis tank pre-charge pressure. Make sure it is between 5 to 7 psig. Pull the cap/plug off the top of the Reverse Osmosis •...
- Page 11 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Drain Clamp Assembly Choose the Reverse Osmosis drain outlet location. The following are instructions for discharging in the sink drain pipe. • Position the Drain Clamp on the sink drain pipe above the drain trap. Allow room for drilling. Tighten securely.
-
Page 12: Piping And Instrumentation Drawing
REVERSE OSMOSIS INSTALLATION AND USER GUIDE PIPING AND INSTRUMENTATION DRAWING REVERSE OSMOSIS STAGES EWR 5075C Stage# Description Sediment Filter 5-Micron Carbon Block 10-Micron Carbon Block 5-Micron RO Membrane 75GPD Coconut Shell Carbon Polisher EWR 5075E Stage# Description Sediment Filter 5-Micron... -
Page 13: Start Up Instructions
REVERSE OSMOSIS INSTALLATION AND USER GUIDE START UP INSTRUCTIONS • Sanitize the system with good quality unscented liquid chlorine household bleach and follow the sanitizing instruction given in maintenance section of this manual. • Slowly open the feed water valve counterclockwise and inspect plumbing for leaks. •... -
Page 14: Changing Filters
REVERSE OSMOSIS INSTALLATION AND USER GUIDE Changing Filters THIS REVERSE OSMOSIS SYSTEM CONTAINS FILTERS WHICH MUST BE REPLACED AT REGULAR INTERVALS TO MAINTAIN PROPER PERFORMANCE. USE ONLY FACTORY APPROVED FILTERS. The recommended interval for changing the Reverse Osmosis filters (not the Reverse Osmosis Membrane) is every six (6) months. -
Page 15: Changing In-Line Activated Carbon Post Filter
REVERSE OSMOSIS INSTALLATION AND USER GUIDE Changing In-Line Activated Carbon Post Filter • Close the Reverse Osmosis Feed Water Ball Saddle by turning fully clockwise. • Close the Reverse Osmosis Holding Tank Valve and then open the Reverse Osmosis Dispensing Faucet to release the pressure. -
Page 16: Rinsing The Reverse Osmosis System
REVERSE OSMOSIS INSTALLATION AND USER GUIDE • Open the Reverse Osmosis dispensing faucet by lifting the handle and open the Reverse Osmosis Holding Tank Shut-Off Valve (the handle should be parallel with the valve body). Once all the pressure has been released, remove the Reverse Osmosis Housing on the side of the •... -
Page 17: Automatic Shut Off Valve Replacement
REVERSE OSMOSIS INSTALLATION AND USER GUIDE Automatic Shut Off Valve Replacement To RO Membrane Feed Red Port Polisher (AICRO) From 5-Micron / Tank Inlet Tee Carbon Block RO Membrane Permeate TECHNICAL DATA Reverse Osmosis water quality is normally measured with a TDS meter. The more dissolved solids in the water, the higher the conductivity. -
Page 18: Troubleshooting Guide
REVERSE OSMOSIS INSTALLATION AND USER GUIDE TROUBLESHOOTING GUIDE Troubleshooting Procedures Problem Possible Cause Solution a) Reverse Osmosis Feed Water Ball a) Open Valve or unclog Valve is plugged or closed b) Clogged Sediment Pre-filter or b) Replace Reverse Osmosis filters Activated carbon Pre-filter c) Low water pressure c) Reverse Osmosis feed water pressure must be... - Page 19 REVERSE OSMOSIS INSTALLATION AND USER GUIDE Problem Possible Cause Solution a) Drain tubing is clogged a) Clear drain tubing 4) Drain water overflows at b) Drain clamp hole is misaligned b) Align with hole in the drain pipe the air gap faucet c) Excessive drain flow rate c) Replace Reverse osmosis drain restrictor a) Clogged sediment Pre-filter or...
-
Page 20: Replacement Part Numbers
REVERSE OSMOSIS INSTALLATION AND USER GUIDE Replacement Part numbers EWR 5075C Changing Item # Part Number Description Frequency SMF PP1005 Polypropylene 5-Micron Sediment Filter 6 months 6 months SMF CBC1010 Carbon Block 10in 10-Micron 6 months SMF CBC1005 Carbon Block 10in 5-Micron RO TFC75 Membrane Element 2"x10"... - Page 21 REVERSE OSMOSIS INSTALLATION AND USER GUIDE EWR 5075C BARRIE ● ONTARIO ● CANADA 705.733.8900 WWW.EXCALIBURWATER.COM...
- Page 22 REVERSE OSMOSIS INSTALLATION AND USER GUIDE EWR 5075E Changing Item # Part Number Description Frequency SMF PP1005 Polypropylene 5-Micron Sediment Filter 6 months 6 months SMF CBC1010 Carbon Block 10in 10-Micron SMF CBC1005 Carbon Block 10in 5-Micron 6 months RO TFC75 Membrane Element 2"x10"...
- Page 23 REVERSE OSMOSIS INSTALLATION AND USER GUIDE EWR 5075E BARRIE ● ONTARIO ● CANADA 705.733.8900 WWW.EXCALIBURWATER.COM...
-
Page 24: Warranty
Warranty ~ Coverage Outlined Excalibur Water Systems guarantees, to the original owner, a period of 5 years, the BODY to be free of defects in materials and workmanship and to perform its proper functions. To the original owner, a period of 5 years, the membrane as well as all parts to be free of defects in materials and workmanship and to perform their normal functions to the original owner as long as it is maintained with proper service and maintenance.
