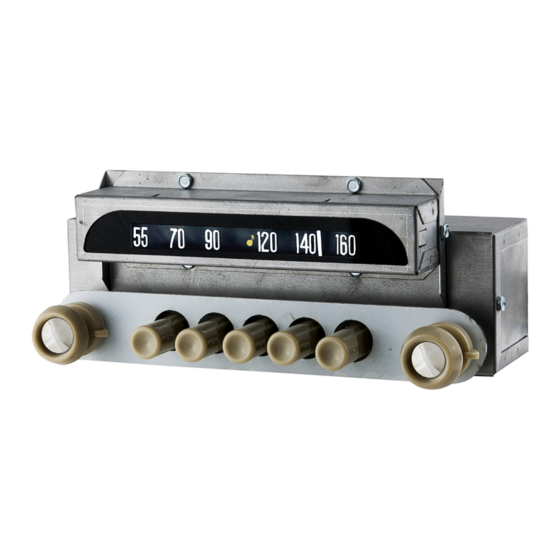

Antique Automobile Radio 132301B Installation And Operating Instructions

1951 and 1952 chevrolet passenger cars am/fm stereo radio styleline/fleetline

Table of Contents

Download this manual

Release Date

January 2014

CHEVROLET Passenger Cars

Add

our

Bluetooth®

incoming calls and place outgoing calls with compatible

phones — all without having to fumble around for your cell

phone. You can also stream music from any compatible

phone or tablet — use the dedicated keys to skip or replay

tunes. Built in USB 2.1 Amp charger. NFC simple pairing

function.

ANTIQUE AUTOMOBILE RADIO, INC.

700 TAMPA RD. Palm Harbor, FL 34683 USA (727) 785-8733

1951 and 1952

AM/FM STEREO

RADIO INSTALLATION

OPERATING INSTRUCTIONS

Model 132301B (Radio Only)

adapter

kit

For HELP, Questions or Comments email:

support@radiosforoldcars.com

AND

AM/FM9.2

STYLELINE

FLEETLINE

option!

Answer

Table of Contents

Need help?

Do you have a question about the 132301B and is the answer not in the manual?

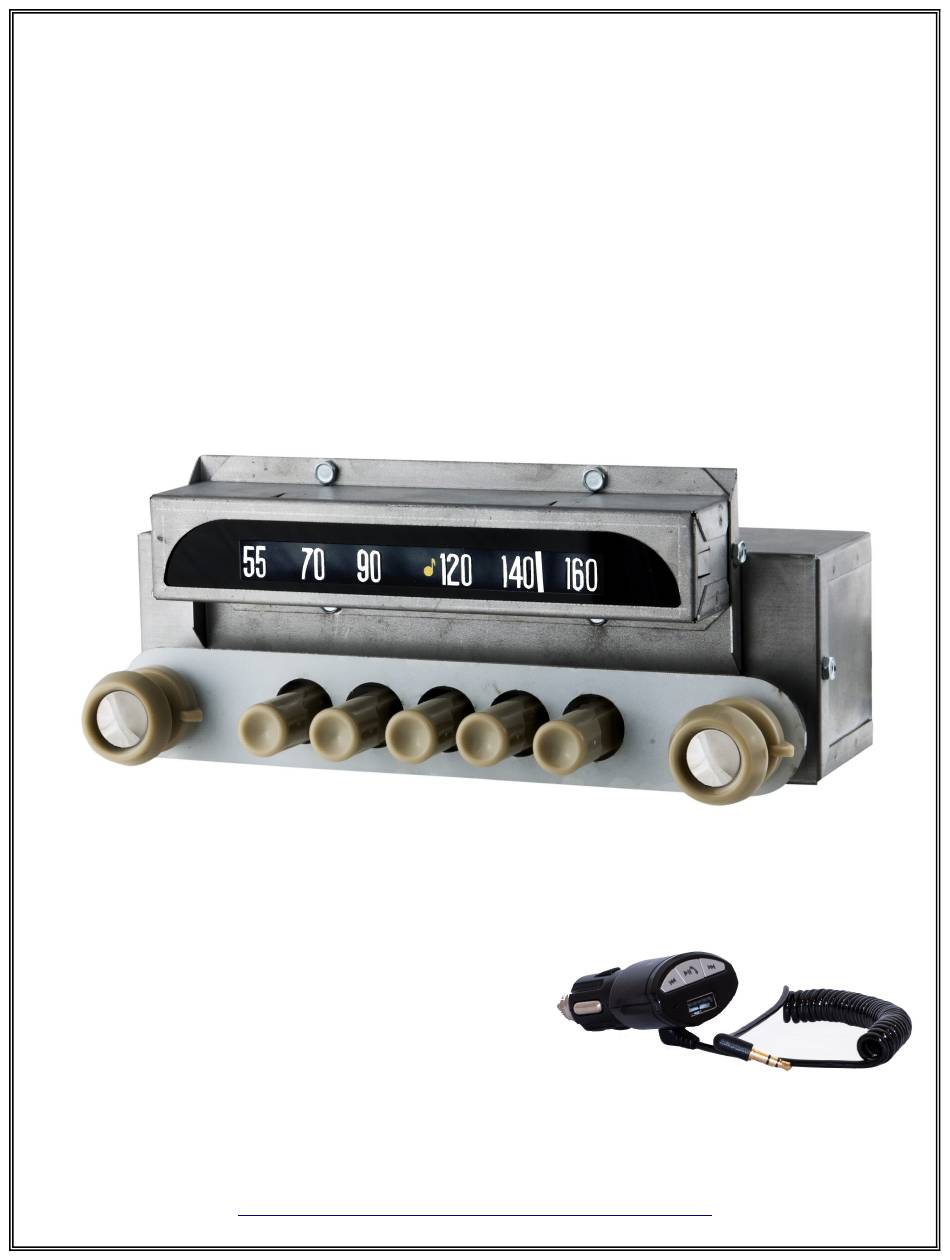

Page 1 CHEVROLET Passenger Cars AM/FM STEREO RADIO INSTALLATION OPERATING INSTRUCTIONS AM/FM9.2 STYLELINE FLEETLINE Model 132301B (Radio Only) Bluetooth® adapter option! Answer incoming calls and place outgoing calls with compatible phones — all without having to fumble around for your cell phone. You can also stream music from any compatible phone or tablet —...
Page 2 CONGRATULATIONS! You have one of the most unique and sophisticated radios ever built! It is designed for a long trouble free life and quality sound. Our objective is to preserve the original fit, functions and appearance of your radio while providing superior sound using the best of the latest digital technology.
Page 3 Your radio has a 12 pin connector for the speakers, power, and options. See inset below for more details. There is one red (fused) wire. This is the main power input. It should be connected to the 12 volt Accessory circuit. There is a green wire that is used for the dial light.
Page 4 INSTALLATION DRAWINGS Original Radio New Radio The front of your new radio is a dimensionally exact copy of the original, so it will install the same way that the original radio did. The radio is much smaller when viewed from the back than the original was, so the original mounting bracket won't fit. Included with your radio is a 9 inch Backstrap that can be easily cut and bent to any shape or size.
