Antique Automobile Radio 132314B Installation And Operating Instructions

Radio with speakers for 1951 and 1952 chevrolet passenger cars

Release Date

January 2014

1951 and 1952

CHEVROLET Passenger Cars

AM/FM STEREO

RADIO INSTALLATION

AND

OPERATING INSTRUCTIONS

AM/FM9.2

STYLELINE

FLEETLINE

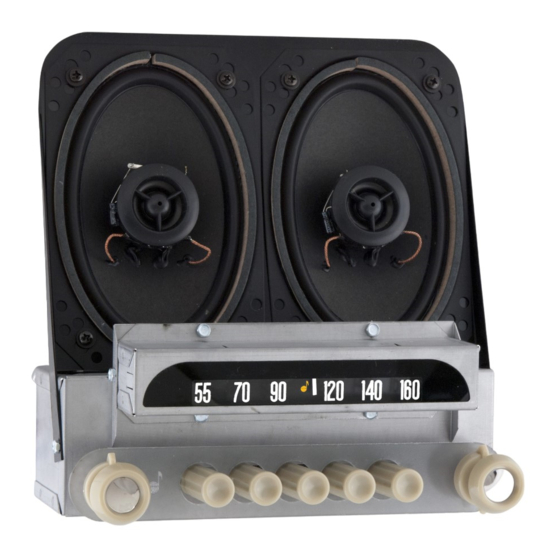

Model 132314B (Radio With Speakers)

Add

our

Bluetooth®

adapter

kit

option!

Answer

incoming calls and place outgoing calls with compatible

phones — all without having to fumble around for your cell

phone. You can also stream music from any compatible

phone or tablet — use the dedicated keys to skip or replay

tunes. Built in USB 2.1 Amp charger. NFC simple pairing

function.

ANTIQUE AUTOMOBILE RADIO, INC.

700 TAMPA RD. Palm Harbor, FL 34683 USA (727) 785-8733

For HELP, Questions or Comments email:

support@radiosforoldcars.com

Table of Contents

Need help?

Do you have a question about the 132314B and is the answer not in the manual?

Page 1 CHEVROLET Passenger Cars AM/FM STEREO RADIO INSTALLATION OPERATING INSTRUCTIONS AM/FM9.2 STYLELINE FLEETLINE Model 132314B (Radio With Speakers) Bluetooth® adapter option! Answer incoming calls and place outgoing calls with compatible phones — all without having to fumble around for your cell phone.
Page 2 CONGRATULATIONS! You have one of the most unique and sophisticated radios ever built! It is designed for a long trouble free life and quality sound. Our objective is to preserve the original fit, functions and appearance of your radio while providing superior sound using the best of the latest digital technology.
Page 3 Your radio has a 12 pin connector for the speakers, power, and options. See inset below for more details. There is one red (fused) wire. This is the main power input. It should be connected to the 12 volt Accessory circuit. There is a green wire that is used for the dial light.
Page 4 INSTALLATION DRAWINGS Original Radio New Radio The front of your new radio is a dimensionally exact copy of the original, so it will install the same way that the original radio did. The radio is much smaller when viewed from the back than the original was, so the original mounting bracket won't fit. Included with your radio is a 9 inch Backstrap that can be easily cut and bent to any shape or size.
