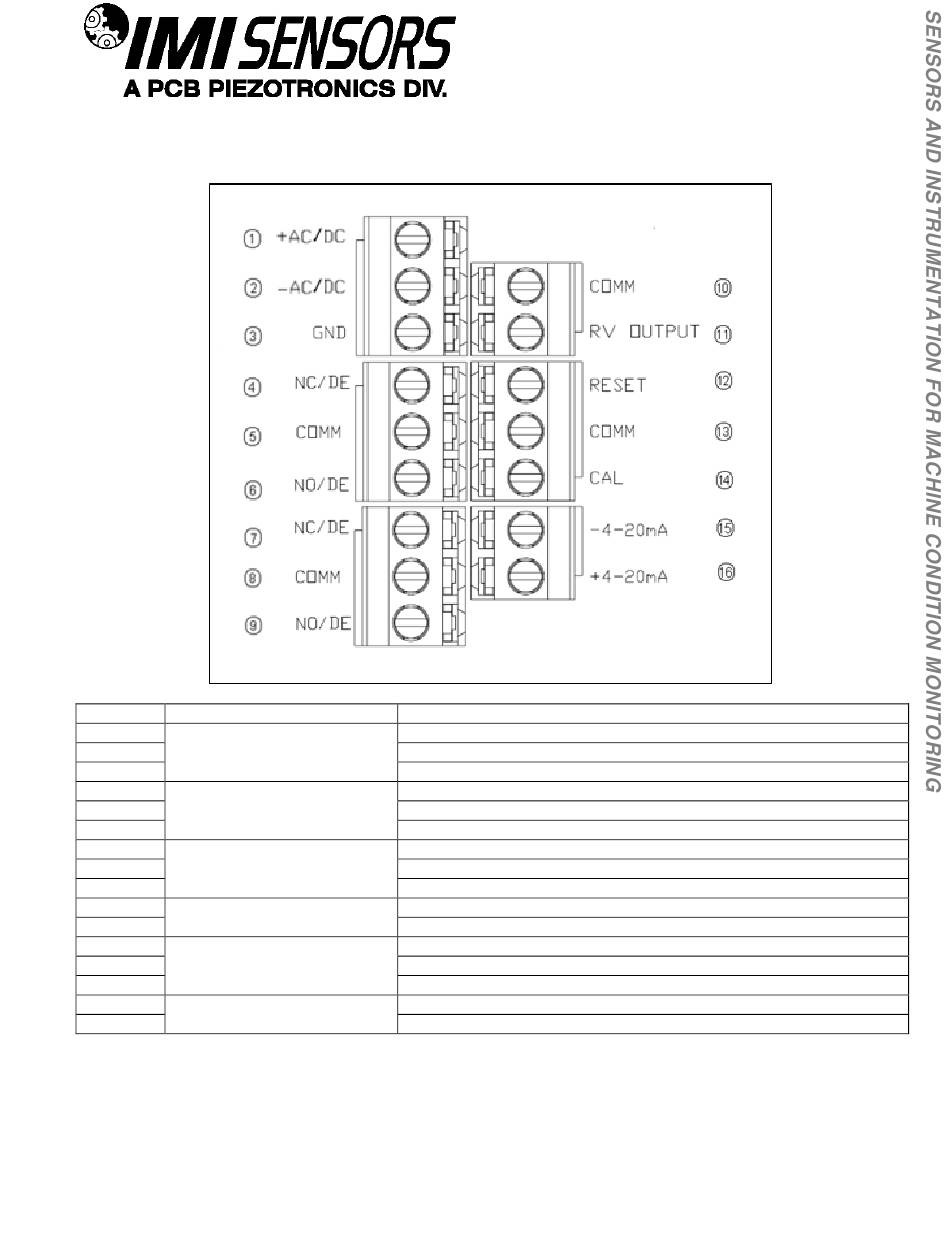

Pin Location Diagram- Models with Internal Accelerometer and Electromechanical Relays

Pin Category
1
2 AC Power
3
4
5 Alarm Output
6
7
8 Alert Output
9
10
Raw Vibration Output
11
12
13 Control Configurations
14
15
Current Output
16
Description
- Power/Common
Earth Ground (Also connect to enclosure safety lug)
Normally Closed (when dipswitch is in de-energized position)
Common connection
Normally Open (when dipswitch is in de-energized position)
Normally Closed (when dipswitch is in de-energized position)
Common connection
Normally Open (when dipswitch is in de-energized position)
Remote Reset Connection (Do not apply power)
Common Connection
Calibration Connection
+ Power
Common
+Signal
- 4-20 mA
+ 4-20 mA
