PCB Piezotronics IMI SENSORS 685B0411C14 Installation And Operating Manual page 12

Electronic vibration switch, internal icp accel., 0-3 ips pk, 24 vdc powered, 10a form c relays, class 1 div 1, groups b,c,d, dual 1/2" npt ports

Table of Contents

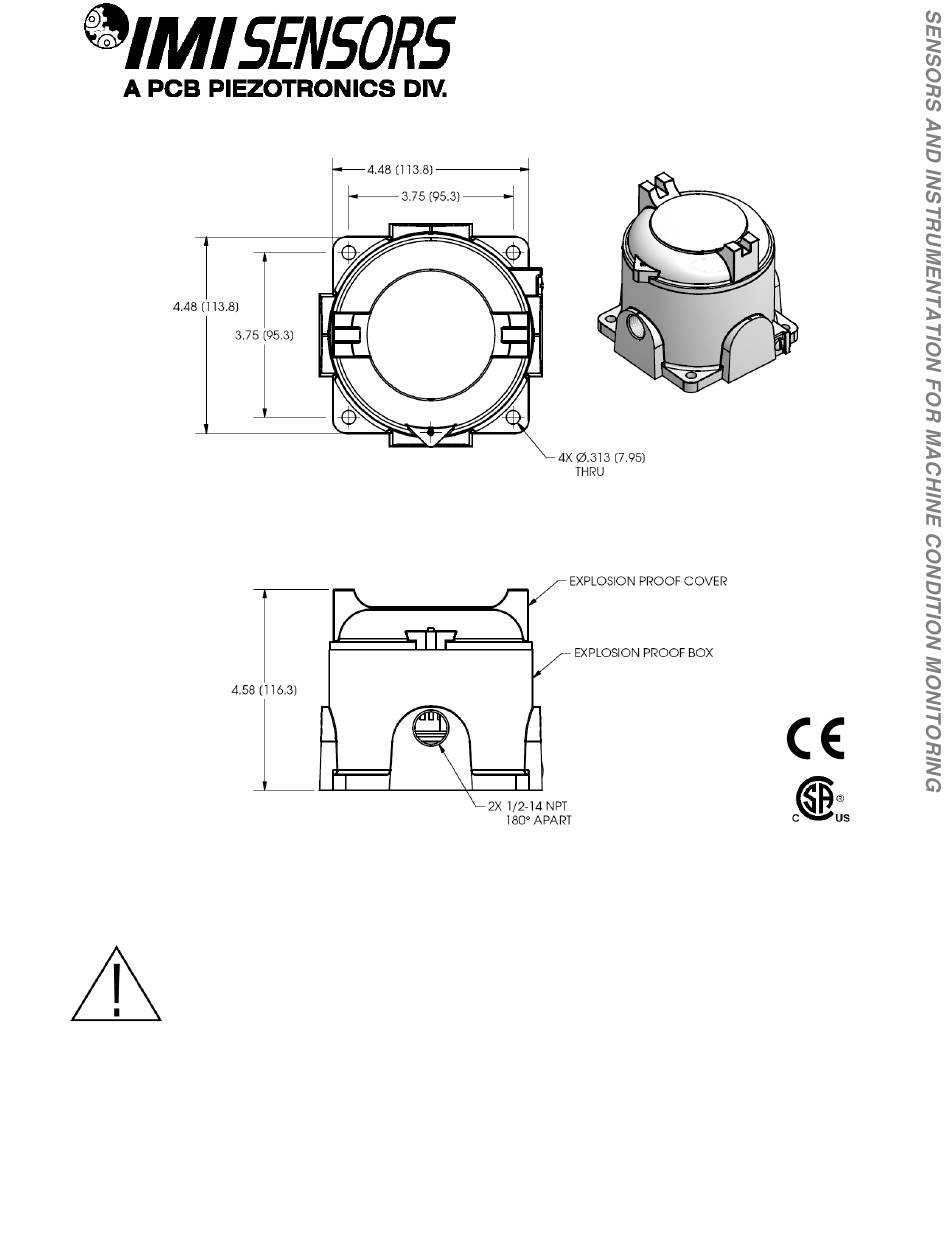

Explosion Proof Model Dimension Drawing

Inch (mm)

WARNING

AC and DC input signals and power supply voltages could be hazardous. DO NOT

connect live wires to screw terminal plugs, and DO NOT insert, remove, or handle screw

terminal plugs with live wires connected.

PAGE 7
