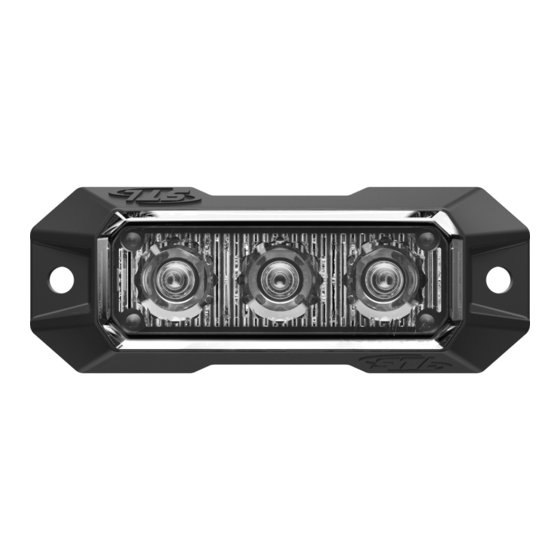

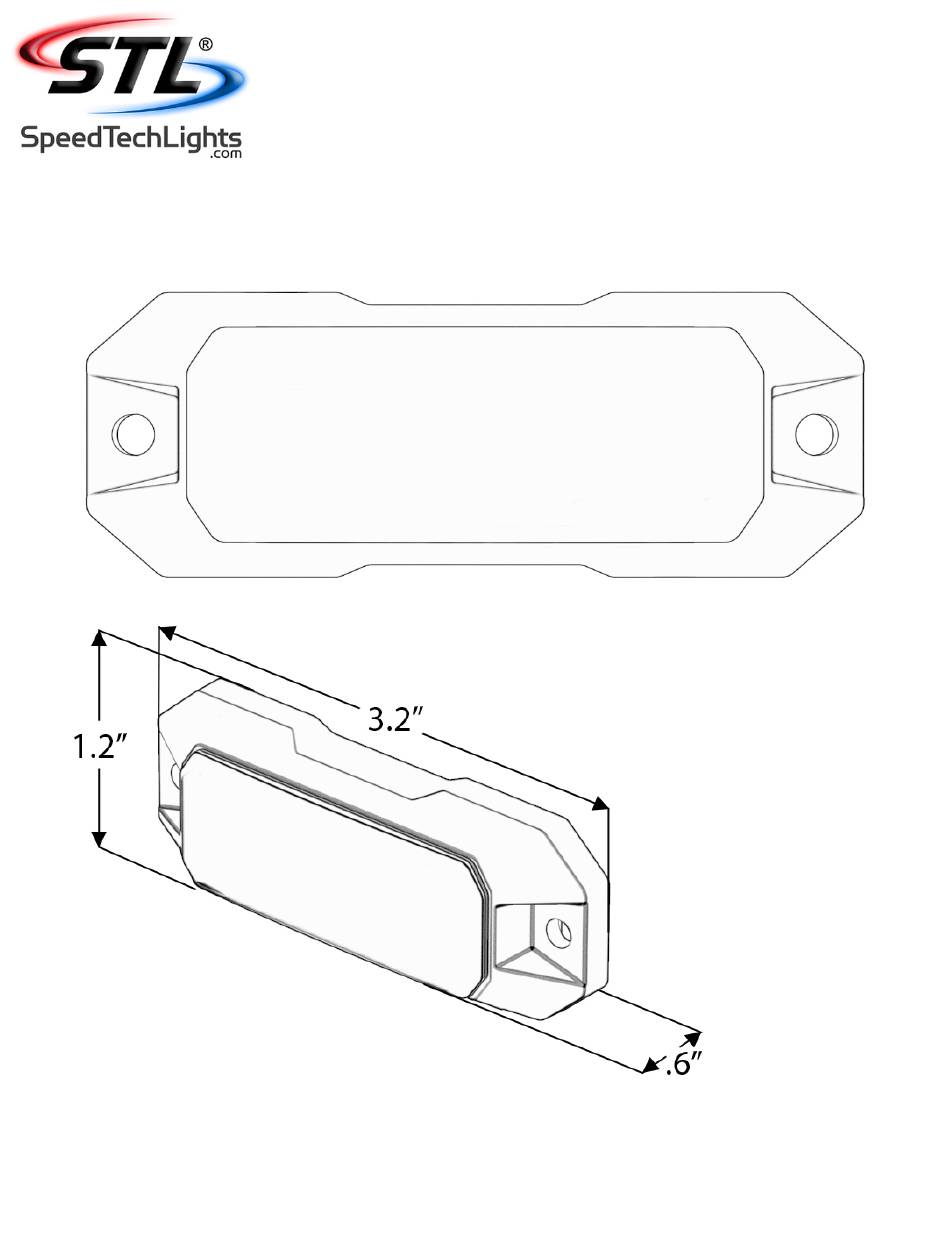

- Page 1 Z - 3 GRILLE / SURFACE MOUNT G-ZTC3 G-ZLC3 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2019...
- Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
- Page 3 Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products.
- Page 4 Z - 3 GRILLE / SURFACE MOUNT Wiring Diagram Wire Color Function Wire Color Function Red* Positive Green Steady Burn Override Negative Sync Black* White Yellow Flash Pattern Blue Alternating Sync Programming * Indicates a main power cable. NOTE: All cables except Negative and Sync contact +12 VDC. Specifications Voltage 12 VDC...
- Page 5 Z - 3 GRILLE / SURFACE MOUNT Surface Mounting w/ Foam Backing Pad (Included) • Run cable through the Foam Pad central hole. • Use the included hardware to mount the unit to the vehicle. Double Stack Z Flange Mounting Bracket (Sold Separately) •...
- Page 6 Z - 3 GRILLE / SURFACE MOUNT License Plate Mounting Bracket (Sold Separately) • This kit includes hardware and (3) metal pieces: (2) short pieces and (1) long piece. • Use the hardware included with the Bracket to connect both short pieces to the long piece. •...
- Page 7 Hold for 3 seconds to toggle Steady Burn mode. About Flash Patterns • All STL LED products are equipped with a non-volatile memory which will recall the last flash pattern when the product is turned on. • Follow the wiring diagram to identify the Flash Pattern wire to manually cycle through patterns.
