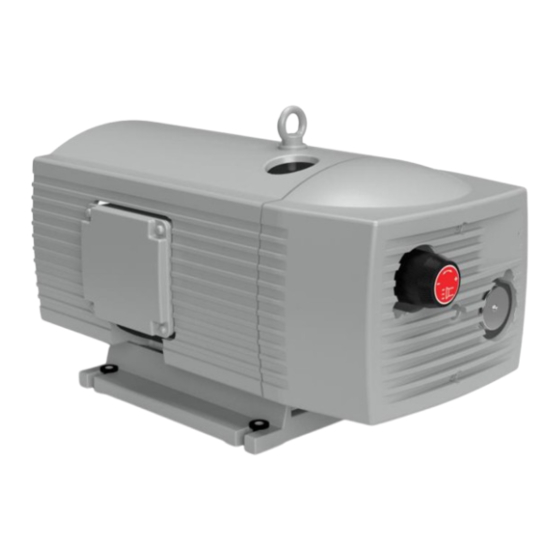

- Page 1 VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 TRANSLATION OF THE OPERATING INSTRUCTIONS VT 4.10/16/25/40 VX 4.10/16/25/40 ROTARY VANE- VACUUM PUMP dry-running MAKE IT BECKER.
-
Page 2: Table Of Contents
Operating instructions valid for: General designation Rotary vane-Vakuumpumpe, hereinafter described as "pump". Product type dry-running Model VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25 and VX 4.40 Manufacturer Gebr. Becker GmbH Hölker Feld 29-31 42279 Wuppertal CONTENT... - Page 3 VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 MOTORS SAFETY AND PROTECTIVE DEVICES TESTING THE SAFETY AND PROTECTIVE DEVICES TRANSPORT INSTALLATION AND COMMISSIONING GENERAL REQUIREMENTS PREPARATORY ACTIVITIES 6.2.1 CONNECTING THE MEDIA LINE 6.2.2...
-
Page 4: To The Operating Instructions General
VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 TO THE OPERATING INSTRUCTIONS GENERAL These operating instructions are an essential part of the pump and contain the necessary information and important notes to operate the pump safely and properly. Observance of these instructions will help: •... -
Page 5: Additional Documentation
VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 Use hearing protection Use hand protection Note: General information ADDITIONAL DOCUMENTATION In addition to these operating instructions, the following documents and notes must be observed: •... -
Page 6: Basic Safety Instructions
VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 BASIC SAFETY INSTRUCTIONS These operating instructions serve as a basis for the safe use and operation of the pump. The operating instructions, in particular the safety instructions and the rules and regulations applicable to the place of use, must be observed by all persons working on or with the pump. -
Page 7: Staff Qualification
VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 STAFF QUALIFICATION Certain activities require a specific qualification to be demonstrated by the personnel carrying them out. The following table summarises these qualifications: Activity... -
Page 8: Information On Residual Risks
VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 WARNING Hearing damage due to high volume Hearing protection must be worn during activities that must be carried out while the pump is running. -
Page 9: 2.10 Behaviour In Case Of Danger And Accidents
Safety risk due to spare parts not approved by the manufacturer Becker spare parts have been checked by us for their technical requirements and for their safety. Spare parts that have not been approved can pose a danger to people and the pump. -
Page 10: Requirement For Stability
10 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 2.11 REQUIREMENT FOR STABILITY It is best to install the pump horizontally on a flat surface. Vertical installation (valve side down) is not permitted. -
Page 11: Operating Conditions
11 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 OPERATING CONDITIONS The CE conformity of the product only becomes legally valid when all product safety requirements of the "operating conditions" formulated in this chapter in the sense of Directive 2006/42/EC Annex I 1.7.4.2.i have been fully implemented by the operator. -
Page 12: Pump Description
Series X sliders are characterised by extremely long slider service lives. Becker guarantees a slide valve service life of 20,000 operating hours or a maximum of 3 years for this pump. X series intake filters have a removable cover (pre-filter) that extends the service life of the filter at extended by regular cleaning. -
Page 13: Variants Vt(X) 4.10-4.40 In Sh 19 Or Sh 20 Acoustic Enclosure
13 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 The VX 4.25/0-47 is a special version with EPP bonnet, stand and cable connection. 4.3.3 VARIANTS VT(X) 4.10-4.40 IN SH 19 OR SH 20 ACOUSTIC ENCLOSURE For particularly noise-sensitive applications, the pumps are also available with acoustic bonnets. -
Page 14: Component Illustration
14 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 COMPONENT ILLUSTRATION VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 Position Component Function Admission... -
Page 15: Motors
15 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 MOTORS The characteristics of the motor used can be found on the motor's type plate. SAFETY AND PROTECTIVE DEVICES DANGER Danger to life due to defective, dismantled and manipulated protective devices NOTE For a description of the safety instructions, see chapter 2.9... -
Page 16: Transport
16 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 TRANSPORT WARNING Risk of injury due to incorrect lifting conditions. NOTE wear suitable PPE. NOTE For a detailed description of the safety instructions, see chapter 2.9 The pump may only be attached to the eyebolt. -
Page 17: Installation And Commissioning
17 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 INSTALLATION AND COMMISSIONING GENERAL REQUIREMENTS The installation site of the pump should be dry and protected from splash water. We recommend installing the pump in such a way that maintenance work can be carried out easily. Depending on the type of variant or accessories fitted, additional free space may be required for this. -
Page 18: Adjust Valve
18 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 This pump variant has neither a suction filter nor a vacuum safety valve ex works. These must be installed by the customer before commissioning. - Page 19 19 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 DANGER Danger to life due to defective, dismantled and manipulated protective devices DANGER Danger to life due to unexpected start-up NOTE For a description of the safety instructions, see Chap. 2.9 The electrical installation of the pump shall comply with the requirements of Directive 2006/42/EC and EN 60204:2019.
-
Page 20: Electrical Connection (Standard)
20 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 6.3.1 ELECTRICAL CONNECTION (STANDARD) Connecting the motor The motor must be connected according to the connection diagram (see terminal box cover or instruction leaflet in the terminal box). -
Page 21: Switch On Pump
21 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 SWITCH ON PUMP The pump is switched on via switching elements in the application. After switching on, the pump goes directly into normal operating mode. -
Page 22: Troubleshooting / Troubleshooting
22 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 TROUBLESHOOTING / TROUBLESHOOTING DANGER Danger to life from electric shock - Personnel qualification DANGER Danger to life due to defective, dismantled and manipulated protective devices... - Page 23 23 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 The electrical fuse has tripped Cause Have possible sources of error checked by a qualified electrician. Do not switch the pump on again until the...
- Page 24 24 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 The pump does not reach the required performance and / or emits disturbing noises Cause The motor runs in the wrong direction of rotation if the The motor installation must be checked by a qualified pump does not prime correctly and emits loud noise.
-
Page 25: Maintenance, Servicing And Dismantling
25 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 MAINTENANCE, SERVICING AND DISMANTLING DANGER Danger to life due to electric shock DANGER Danger to life due to defective, dismantled and manipulated protective devices... -
Page 26: Maintenance Intervals
26 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 MAINTENANCE INTERVALS The following overview shows the maintenance intervals: VT 4.10, VT 4.16, VT 4.25, VT 4.40 Component 40 - 200 h... -
Page 27: Clean Filter
27 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 NOTE Wear suitable PPE NOTE For a description of the safety instructions, see 2.9 The safety instructions must be observed: • Use appropriate tools and handle with care. -
Page 28: Clean Surface With Compressed Air
28 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 The sliders are also installed behind the front cover. Loosen and remove them as described in the previous point. The side cover underneath is fastened with 4 Allen screws. Loosen these and remove the side cover. -
Page 29: Spare And Wear Parts
29 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 SPARE AND WEAR PARTS WARNING Safety risk due to spare parts not approved by the manufacturer A comprehensive spare parts list with all spare and wear parts of the series listed here can be found on our homepage under the following link: www.becker-international-shop.com... -
Page 30: Storage
30 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 WARNING Risk of injury from slipping, tripping and falling WARNING Danger from hot components NOTE wear suitable PPE. NOTE For a description of the safety instructions, see chapter 2.9 The following steps must be observed during dismantling and decommissioning: Switch off the pump and release the drive. -
Page 31: Product Data Sheet
31 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 PRODUCT DATA SHEET PRODUCT OVERVIEW Example: VT 4.40 OPERATING PARAMETERS Variant VT 4.10 VT 4.16 VT 4.25 VT 4.40 Volume flow min. -
Page 32: Technical Data
32 | VT 4.10, VT 4.16, VT 4.25, VT 4.40, VX 4.10, VX 4.16, VX 4.25, VX 4.40 Variant VT 4.40/0-90 VX 4.10 VX 4.16 VX 4.25 Volume flow min. 47 m³/h (50 Hz) 10 m³/h (50 Hz) 16 m³/h (50 Hz) 25 m³/h (50 Hz) - Page 33 MAKE IT BECKER. www.becker-international.com 28200000200 | 2023-03-10 | All rights reserved...
