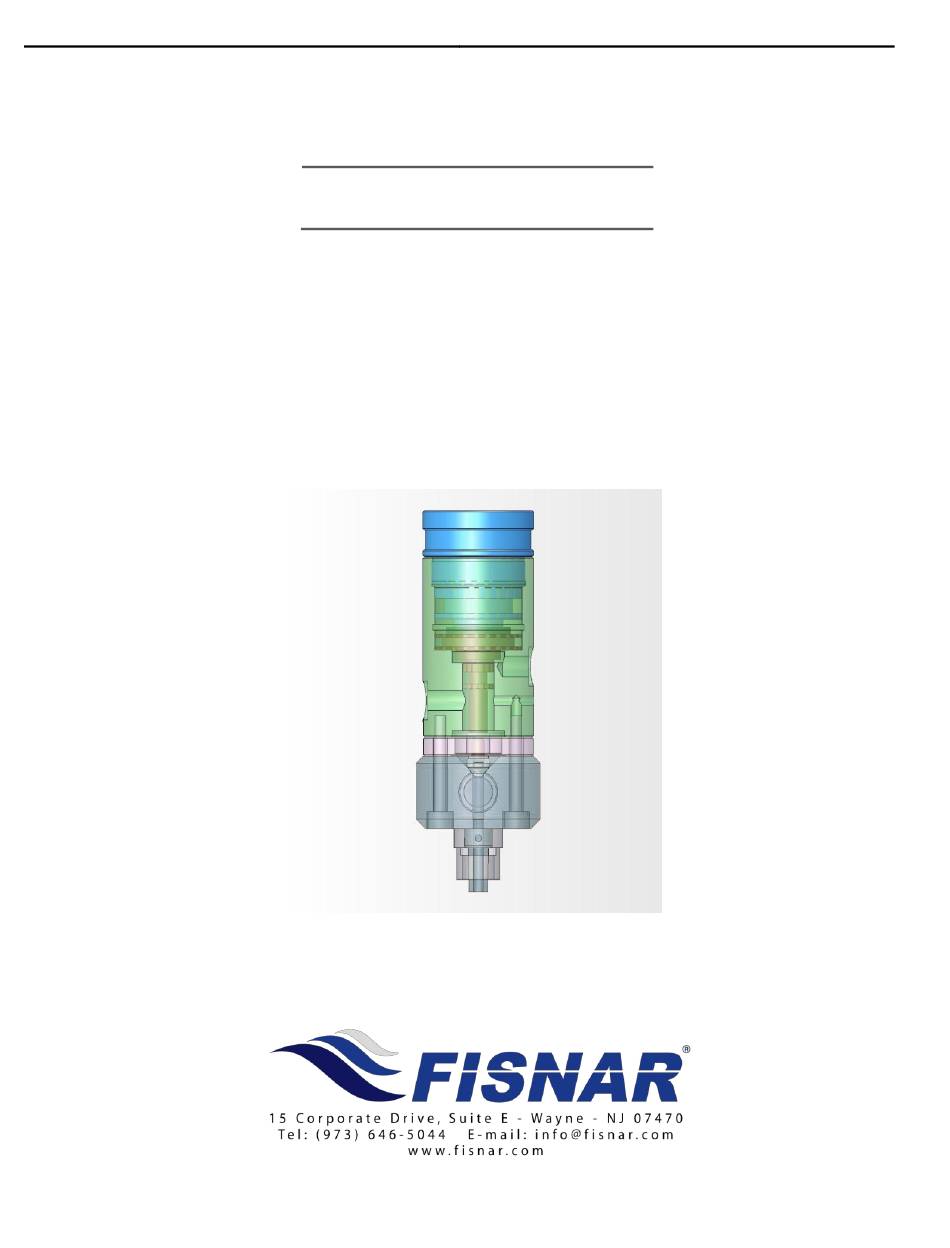

- Page 1 Rev. A Jul 07 Part # 562148-SS VD510-SS INSTRUCTION MANUAL DISPENSING VALVE MODEL VD510-SS ◀INSTRUCTION MANUAL▶...
-
Page 2: Table Of Contents
Rev. A Jul 07 Part # 562148-SS VD510-SS INSTRUCTION MANUAL CONTENTS 1 Introduction page 3 2 Specifications page 3 3 Part Description page 4 4 Operation Principles page 5 5 Operating Procedure page 6 5-1 Setup page 6 5-2 Maintenance page 9 6 Sectional Drawing &... -
Page 3: Introduction
VD510-SS INSTRUCTION MANUAL 1. INTRODUCTION The VD510-SS is a diaphragm valve designed for precise flow control of low to medium viscosity materials (under 10,000 cps). The valve head is made of Stainless Steel appropriate for use in medical grade applications. Shot sizes may be fine tuned by turning the stroke adjustment knob at the top of the valve. -
Page 4: Part Description
Rev. A Jul 07 Part # 562148-SS VD510-SS INSTRUCTION MANUAL 3. PART DESCRIPTION... -
Page 5: Operation Principles
Rev. A Jul 07 Part # 562148-SS VD510-SS INSTRUCTION MANUAL 4. OPERATION PRINCIPLES Dispensing OFF Dispensing ON short Stroke long small Shot Volume large When air is applied, the diaphragm is opened and In the “Normal” state (air off), the diaphragm material is dispensed. -
Page 6: Operating Procedure
Rev. A Jul 07 Part # 562148-SS VD510-SS INSTRUCTION MANUAL 5. OPERATING PROCEDURE 5-1. Setup ▶example for general installation... - Page 7 Rev. A Jul 07 Part # 562148-SS VD510-SS INSTRUCTION MANUAL 5-1-1) Fasten the valve firmly using mount hole. (M5*P0.8*D98) 5-1-2) Connect air hose to Air In Port and Controller. Valve driving pressure is Min 4.0kgf/㎠ or more. 5-1-3) Connect fitting for material supply hose to the inner port (BSPT1/8") Notice Do not insert fitting too deeply (7 ㎜...
- Page 8 Rev. A Jul 07 Part # 562148-SS VD510-SS INSTRUCTION MANUAL 5-1-7) After steady mode in controller and reducing pressure of pressure container, make dispensing the liquid come out slowly. (This is to remove bubble and dispense the first liquid from valve) 5-1-8) Choose "timer"...
-
Page 9: Maintenance
Rev. A Jul 07 Part # 562148-SS VD510-SS INSTRUCTION MANUAL 5-2. Maintenance 5-2-1) Washing ①Wash valve thoroughly after using if dispensed liquid has tendency to be stiff or has possibility to damage liquid contacting part. ②First of all dispense all liquid entirely from pressure container, liquid supply hose and liquid contacting part until sufficient air comes out. - Page 10 Rev. A Jul 07 Part # 562148-SS VD510-SS INSTRUCTION MANUAL ⓒRemove diaphragm by turning counterclockwise. ⓓScrew new diaphragm carefully to become horizontal to piston road screw-thread. - 7 - Notice If it isn't fit thread properly leakage may occur. ⓔAfter fixing diaphragm at regular intervals(0.4mm) like the picture, for matching cylinder body and mount screw, please turn to the location that you want using a screwdriver like next picture.
-
Page 11: Sectional Drawing & Dimension
Rev. A Jul 07 Part # 562148-SS VD510-SS INSTRUCTION MANUAL 6. SECTIONAL DRAWING & DIMENSIONS ▶ Cross-sectional View ▶ Dimension - Measurements shown in millimeters. -11-... -
Page 12: Exploded View & Parts List
Rev. A Jul 07 Part # 562148-SS VD510-SS INSTRUCTION MANUAL 7. EXPLODED VIEW & PARTS LIST ▶ Exploded View ▶ Parts List Part No Description Q'TY Part No Description Q'TY VD510-7 WASHER VD510-1-SS CHAMBER 1 VD510-8 O-RING(P4) VD510-2 CYLINDER 1 VD510-9...
