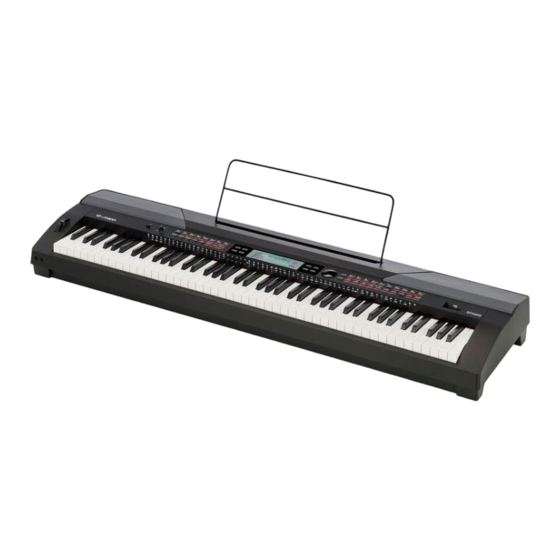

- Page 1 SP 5600 Portable Grand Keyboard...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 10.10.2023, ID: 378054 (V6)
-
Page 3: Table Of Contents
9.4 Style playing........................27 9.5 Playing songs........................27 9.6 Metronome........................28 9.7 Tempo..........................28 9.8 Mixer..........................28 9.9 Selecting voices ......................29 9.10 Dual mode........................29 9.11 Split mode........................29 9.12 TWINOVA........................30 9.13 Harmony mode......................30 SP 5600 Portable Grand Keyboard... - Page 4 Technical specifications....................45 Plug and connection assignment................. 47 Troubleshooting........................48 Appendix..........................49 13.1 Song list.......................... 49 13.2 Styles list........................51 13.3 Voice List........................55 13.4 Demo list........................63 13.5 MIDI implementation chart..................64 Protecting the environment................... 66 SP 5600 Portable Grand Keyboard...
- Page 5 SP 5600 Portable Grand Keyboard...
-
Page 6: General Information
Our products and documentation are subject to a process of continuous develop‐ ment. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. -
Page 7: Safety Instructions
Only operate the external power supply from professionally installed mains sockets that are protected by a residual current circuit breaker (FI). As a precaution, disconnect the power supply from the power grid when storms are approaching or it the device will not be used for a longer period. SP 5600 Portable Grand Keyboard... -
Page 8: Features
Master EQ Sequencer Accompaniment and recording function Learning function and chord library Split and duo mode Metronome Transpose function Built-in speakers USB port Automatic shutoff Sustain pedal, music stand and 12 V power adapter included SP 5600 Portable Grand Keyboard... -
Page 9: Assembly Instructions
Connect the cable from the power adapter outlet to the input socket [DC IN] on the DC IN rear panel of the device. Plug the plug of the power cord into a properly wired and earthed mains wall outlet. SP 5600 Portable Grand Keyboard... -
Page 10: Connections And Controls
1 Built-in speakers 2 Music stand holder 3 Control panel with function keys and display 4 Claviature with 88 keys 5 2 × connection sockets for headphones 6 Pitch bend wheel for changing the pitch SP 5600 Portable Grand Keyboard... - Page 11 Button function when the [SHIFT] button is pressed: Setting the accompaniment track volume. 17 [PERFORM] | Enables/disables the performance assistant 18 [METRONOME] | Activates/deactivates the metronome 19 [SHIFT] | Enables the second function of dual function buttons 20 [PIANO] | Calls up piano mode 21 Display SP 5600 Portable Grand Keyboard...
- Page 12 33 [USB DEVICE]/[OCTAVE] | Simple button function: Opens the menu for adjusting the USB functions Button function when the [SHIFT] button is pressed: Octaving the keyboard in TWINOVA mode. 34 USB interface for connecting a USB device. SP 5600 Portable Grand Keyboard...
- Page 13 40 [AUX IN] | Input socket for connecting an external audio device (e.g. MP3 or CD player, 6.35 mm jack). 41 [MIC] | Input socket for connecting a microphone (6.35 mm jack) 42 [DC IN] | Connection for power supply SP 5600 Portable Grand Keyboard...
-
Page 14: Connection Options
Use the MIDI interface [MIDI IN] to receive MIDI data from an external MIDI device. MIDI IN MIDI OUT PERFORM. METRONOME MELODY 1 ACCOMP TWINOVA SUSTAIN VOICE STYLE SHIFT PIANO MELODY 2 MELODY 3 MELODY 4 TOUCH PERFORM DEMO SONG MELODY 5 PERFORM.H SP 5600 Portable Grand Keyboard... - Page 15 Use the connection socket [MIC] to connect a dynamic microphone (1/4" jack) to the DC IN device. Pedalry Use the connection socket on the bottom of the keyboard to connect the triple-pedal (Sustain, Sostenuto and Soft) of the optional Thomann original stand (item no. 352262). SP 5600 Portable Grand Keyboard...
-
Page 16: Quick Start Guide
In dual and split mode, you toggle between the first and second right hand voice and the left hand voice by repeatedly pressing the [VOICE] button: ‘VOICE R1’ , ‘VOICE R2’ and ‘VOICE L’ , see the following chapters for Dual and Split mode. SP 5600 Portable Grand Keyboard... - Page 17 The recording starts as soon as you play the first tone or chord or press [START/STOP]. Hold down [SHIFT] and press [RECORD] again to end the recording and to play the recorded sequence in an endless loop. To disable the recording mode, hold down [SHIFT] and press [RECORD]. SP 5600 Portable Grand Keyboard...
-
Page 18: Turning The Keyboard On / Off, Setup
Press [YES] and [NO] simultaneously to restore the default setting ‘002’ . Parameter Meaning ‘OFF’ Touch sensitivity is off. ‘001’ Soft In this setting, the volume is lower than usual even when playing with a soft touch. SP 5600 Portable Grand Keyboard... -
Page 19: Sustain Effect
Hold down [SHIFT] and press [FUNCTION] or [FUNCTION] to open the Function menu. Select the desired sub menu using the buttons [FUNCTION] [FUNCTION] . You can then change the following parameters using the jog dial or [YES] and [NO]. SP 5600 Portable Grand Keyboard... -
Page 20: Fine Tuning
‘Beat’ menu. The cur‐ rent setting appears on the display. Adjust the time signature with [YES] and [NO] or with the jog dial. Press [YES] and [NO] simultaneously to restore the time signature standard value ‘004’ . SP 5600 Portable Grand Keyboard... -
Page 21: Split Point
Enabling / disabling the accompaniment ‘SPd St/T’ Controlling the memory function ‘UPd Mem’ track Controlling the memory function ‘SPd Mem’ Press [YES] and [NO] simultaneously to restore the pedal function standard value ‘Soft’ or ‘Sust’ . SP 5600 Portable Grand Keyboard... -
Page 22: Selection Harmony Setting
Use [YES] and [NO] or the jog dial to select the desired presetting: ‘Pop’ ‘Rock’ ‘Class’ ‘Jazz’ ‘Dance’ ‘Reset’ Press [YES] and [NO] simultaneously to load the standard value ‘Reset’ (EQ off). SP 5600 Portable Grand Keyboard... -
Page 23: Reverb Effect
Use [YES] and [NO] or the jog dial to assign the desired parameter: ‘Chorus1’ ‘Chorus2’ ‘GM Chorus1’ ‘GM Chorus2’ ‘Flanger1’ ‘Flanger2’ ‘Rotary1’ ‘Rotary2’ Press [YES] and [NO] simultaneously to load the standard value ‘GM Chorus2’ . SP 5600 Portable Grand Keyboard... -
Page 24: Chorus Volume
Use the buttons [YES] and [NO] or the jog dial to assign one of the following options: ‘030’ (automatic shutdown after 30 minutes) ‘060’ (automatic shutdown after 60 minutes) ‘OFF’ (automatic shutdown off). Press [YES] and [NO] simultaneously to activate the presetting ‘030’ . SP 5600 Portable Grand Keyboard... -
Page 25: Loading / Saving User Settings
Use [YES] and [NO] or the jog dial to select the track you want to delete (accom‐ paniment track [ACCOMP] or melody tracks [MELODY 1] … [MELODY 5]). Confirm with [YES] or cancel the procedure with [NO]. ð All highlighted recordings will be deleted without further confirmation prompt. SP 5600 Portable Grand Keyboard... -
Page 26: Operating
Press [DEMO] to start playing the demo sequences in a continuous loop. Press [YES] and [NO] to switch between the five demo sequences (see Ä Chapter 13.4 ‘Demo list’ on page 63). Press [DEMO] again or [START/STOP] to stop playing the demo sequences. SP 5600 Portable Grand Keyboard... -
Page 27: Style Playing
Ä Chapter 13.1 ‘Song list’ on page 49). If the selected file is empty, the display shows the message ‘NoFile!’ and the song playback will be stopped. Press [START/STOP] to start or stop song playback. Press [STYLE] or [VOICE] to exit song mode. SP 5600 Portable Grand Keyboard... -
Page 28: Metronome
Hold down [SHIFT] and repeatedly press one of the two [MIXER] function but‐ tons to call up and adjust the following options in succession: ‘Rhythm_s’ ‘Rhythm_m’ ‘Bass’ ‘Chord1’ ‘Chord2’ ‘Chord3’ ‘Phrase1’ ‘Phrase2’ ‘Upper1’ ‘Upper2’ ‘LOWER’ ‘U-Disk’ SP 5600 Portable Grand Keyboard... -
Page 29: Selecting Voices
If you wish you can specify your individual split point as described under Ä Chapter 8.7.3 ‘Split point’ on page 21. Assign the right hand voice as described in section Ä Chapter 9.9 ‘Selecting voices ’ on page 29. SP 5600 Portable Grand Keyboard... -
Page 30: Twinova
In harmony mode, suitable tones (harmonized) are automatically added to the notes played to create polyphony. Hold down [SHIFT] and press [HARMONY] to switch to harmony mode. ð The display shows the [HARMONY] symbol and the last selected harmony type, e.g. ‘Duet’ . SP 5600 Portable Grand Keyboard... -
Page 31: Chord Detection
As the A.B.C. chord detection is based on the root note of the chord, some chords that could be played according to the chord library can not be detected by A.B.C., such as B6, B 6, B 6(9), B6(9), Baug, B aug, B m6, Bm6, Adim7, B dim7. SP 5600 Portable Grand Keyboard... - Page 32 The chords are detected as single-finger chords. Multi-finger chords With this method, you can play chords with normal fingering within the capabili‐ ties of the auto accompaniment. Here we show you 32 chords using the example of C chords. SP 5600 Portable Grand Keyboard...
- Page 33 The basic characteristic of the triad remains even if we change the order of the notes to create different inversions. Consecutive chords can be softly connected in a chord progression, e.g. by choosing suitable chord inversions (also called ‘voicings’). SP 5600 Portable Grand Keyboard...
-
Page 34: Chord Dictionary
In the chord dictionary, the 12 root notes and 24 chord types are presented as fol‐ lows: Key names Root note Key names Root note SP 5600 Portable Grand Keyboard... -
Page 35: Auto Accompaniment
Use [A] and [B] to insert two different fill bars. Each fill measure will be repeated until you release the button. ENDING If you press [INTRO/ENDING] auto accompaniment is activated, an ending part suitable for the accompaniment is started, finishing the song. SP 5600 Portable Grand Keyboard... -
Page 36: Accompaniment Track Volume, Muting
ð The volume of the Style is raised within ten seconds from zero to the preset value. Hold down [SHIFT] and press [FADE] at the end of the piece. ð The volume of the Style is lowered within ten seconds to zero. SP 5600 Portable Grand Keyboard... -
Page 37: One Touch Setting
While playing, you also have the possibility to vary the chord played in the chord area. Area B2 This area consists of the white keys C5 to A6 of the claviature. SP 5600 Portable Grand Keyboard... -
Page 38: Piano Mode
Selecting a practising song Use the jog dial or [YES] and [NO] to select the required practising song. If you select a new practising song, the display shows first the title in running text, then the abbreviation. SP 5600 Portable Grand Keyboard... - Page 39 In this mode, it is only rated whether you hit the right notes, but not whether you play them at the right time. The practising song continues only when you play the right note. Press [START/STOP] to start practising. After completing the exercise, you will learn the result. SP 5600 Portable Grand Keyboard...
-
Page 40: Recording Function
If you want to record with accompaniment function or a style, select again the desired chord recognition after setting the recording mode. If you want to use a metronome for recording, enable previously the metronome and set the desired tempo. SP 5600 Portable Grand Keyboard... -
Page 41: Recording
Hold down [SHIFT] again and press [RECORD]. ACCOMP MELODY1 ð The ‘REC’ icon appears on the display. MELODY2 MELODY3 Hold down [SHIFT] and keep [RECORD] pressed for two seconds. MELODY4 MELODY5 ð The display shows ‘Delete?’ . SP 5600 Portable Grand Keyboard... -
Page 42: Midi Functions
During MIDI playback, you can adjust the volume using [MIXER] and [YES]/ [NO]. 9.24.1 USB stick playback Connect the USB stick with the keyboard and open the USB menu. Use the jog dial to highlight the ‘Play’ option. SP 5600 Portable Grand Keyboard... -
Page 43: Loading Data From Usb Stick
Use the jog dial to highlight the required option and confirm with [YES]. Use the jog dial to highlight the required file and confirm with [YES]. Confirm the confirmation prompt with [YES] to delete the data. You can cancel the process at any time with [NO]. SP 5600 Portable Grand Keyboard... -
Page 44: Resetting To Factory Defaults
If you only want to delete your own recordings but want to keep your changed user settings in the memory, proceed as follows: Turn off the keyboard. When turning it back on again, keep [SONG] and [RECORD] pressed. ð All recordings will be deleted without further confirmation prompt. SP 5600 Portable Grand Keyboard... -
Page 45: Technical Specifications
Tuning –50 … +50 Functions Mixer 12 tracks Memory for user settings 8 banks, each with 6 memory locations Pedal support Sustain Pitch bend wheel built-in Metronome 0, 2 … 9 Tempo 30 … 280 SP 5600 Portable Grand Keyboard... - Page 46 13.8 kg Colour Black Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) Further information Design Black Surface Matt Wooden keyboard Ivory-feel keyboard Auto accompaniment Number of rhythms Polyphony Sounds Storage medium USB MIDI SP 5600 Portable Grand Keyboard...
-
Page 47: Plug And Connection Assignment
The result is a pure signal without any noise interference. 1/4" TS phone plug (mono, unbal‐ anced) Signal Ground, shielding 1/4" TRS phone plug (mono, bal‐ anced) Signal (in phase, +) Signal (out of phase, –) Ground SP 5600 Portable Grand Keyboard... -
Page 48: Troubleshooting
Connect the USB cable to another USB port on the to a computer. computer. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. SP 5600 Portable Grand Keyboard... -
Page 49: Appendix
La Donne Mobile DoneMble Moments Musicaux Musicaux Serenata Serenata Silent Night SltNight Bridal March Bridal Moldau Moldau Can't Help Fallin' In Love InLove Summertime Summer Chanson Du Toreador Toreador Dreaming Of Home And Mother Dreaming SP 5600 Portable Grand Keyboard... - Page 50 Basic Tutorial Beyer Piano 50 Beyer50 The Happy Farmer HpFarmer Basic Tutorial Beyer Piano 52 Beyer52 The Sleeping Beauty SleepBty Basic Tutorial Beyer Piano 55 Beyer55 La Traviata LaTravia Basic Tutorial Beyer Piano 59 Beyer59 SP 5600 Portable Grand Keyboard...
-
Page 51: Styles List
EPBallad Cool Beat CoolBeat New R&B Ballad NewRBBld 16Beat Ballad 2 16BtBld2 ROCK 16Beat 4 16Beat4 Rock Rock Pop Shuffle PopShfl New Wave NewWave POP & BALLAD Pop Rock 1 PopRock1 Pop Rock 2 PopRock2 SP 5600 Portable Grand Keyboard... - Page 52 Jive Jive Guitar Swing 1 GtSwing1 Fox Trot FoxTrot Broadway Big Band BwayBand DANCE Swing Swing Techno 1 Techno1 Latin Jazz 2 LatinJz2 Hip Hop 1 HipHop1 Fusion Fusion House 1 House1 Acid Jazz AcidJazz SP 5600 Portable Grand Keyboard...
- Page 53 Rumba 3 Rumba3 Pianist 3 Pianist3 Lambada Lambada March 1 March1 Pop Cha Cha 1 PChaCha1 Italian Polka ItaPolka WALTZ & TRADITIONAL Slow Waltz SlwWltz Waltz Waltz Waltz 1 Waltz1 Old Waltz OldWaltz Waltz 2 Waltz2 SP 5600 Portable Grand Keyboard...
- Page 54 Jazz1 Pop 4 Pop4 Jazz 2 Jazz2 Ballad 1 Ballad1 Jazz 3 Jazz3 Ballad 2 Ballad2 Jazz 4 Jazz4 Ballad 3 Ballad3 Jazz 5 Jazz5 Ballad 4 Ballad4 Jazz 6 Jazz6 6/8 Ballad 2 6/8Bld2 SP 5600 Portable Grand Keyboard...
-
Page 55: Voice List
Vibra Piano & Vibraphone Pno&Vib Vibraphone 2 Vibra2 Detuned Electric Piano DetunEP Vibraphone (wide) VibraW Detuned Electric Piano 2 DetunEP2 Marimba Marimba Electric Piano E.Piano Marimba 2 Marimba2 Electric Piano 2 E.Piano2 Marimba (wide) MarimbaW SP 5600 Portable Grand Keyboard... - Page 56 Overdriven Guitar 2 Ovrdriv2 Rotary Organ RotyOrgn Guitar Pinch GtPinch Puff Organ PuffOrgn Distortion Guitar DistGtr Accordion Acordion Distortion Guitar 2 DistGtr2 Accordion 2 Acordin2 Distortion Guitar (with feedback) FeedbkGt Accordion 3 Acordin3 Guitar Feedback GtrFedbk SP 5600 Portable Grand Keyboard...
- Page 57 STRINGS & ORCHESTRAL Humming Humming Violin Violin Analog Voice AnlVoice Violin 2 Violin2 Synth Voice SynVoice Violin (slow attack) SlViolin Synth Voice 2 SynVoic2 Viola Viola Orchestra Hit OrchHit Viola 2 Viola2 Orchestra Hit 2 OrchHit2 SP 5600 Portable Grand Keyboard...
- Page 58 Analog Synth Brass AnaBrass Analog Synth Brass 2 AnaBras2 Piccolo Piccolo Analog Synth Brass 3 AnaBras3 Piccolo 2 Piccolo2 Jump Brass JumpBras Piccolo 3 Piccolo3 Jump Brass 2 JumpBrs2 2 Piccolos 2Picolos Funny Funny Sweet Flute SweeFlut SP 5600 Portable Grand Keyboard...
- Page 59 Bauble Lead BaubleLd Corrie Corrie Super Analog SuperAna Quint Quint SYNTH PAD Lead 3 (calliope) CaliopLd Lead 3 (calliope) 2 CalipLd2 Pad 1 (new age) NewAge Lead 4 (chiff) ChiffLd Pad 1 (new age) 2 NewAge2 SP 5600 Portable Grand Keyboard...
- Page 60 Soft Vox SoftVox Sitar 2 Sitar2 5th SawWave 5thSaw Banjo Banjo 5th Lead Soft FiftLdSf Banjo 2 Banjo2 Slow Square SlSquare Shamisen Shamisen New Year Pad NewYear Shamisen 2 Shamise2 Space Voice SpcVoice Koto Koto SP 5600 Portable Grand Keyboard...
- Page 61 Melodic Tom MeloTom Analog Closed Hi-hat AnCloHH Melodic Tom 2 MeloTom2 Pedal Hi-hat PedalHH Synth Drum SynDrum Open Hi-hat OpenHH Rhythm Box Tom RhythBox Crash Cymbal CrashCym Electric Drum ElecDrum Analog Cymbal AnaCym Reverse Cymbal RevCymbl SP 5600 Portable Grand Keyboard...
- Page 62 Burst Noise BurtNois Church Organ & Strings ChOr&Str Applause Applause Acoustic Guitar & Flute Gtr&Flut Laughing Laughing Acoustic Guitar & Clavi Gtr&Clav Screaming Scream 24 String Guitar 24StrGtr Punch Punch Steel Guitar & Warm Pad StGt&Pad SP 5600 Portable Grand Keyboard...
-
Page 63: Demo List
BrushSet Flute & Oboe & Clarinet Fl&Ob&Cl Orchestra Set OrcheSet Flute & Clarinet & Bassoon Fl&Cl&Bn SFX Set SFXSet 13.4 Demo list Name Display Demo1 Demo1 Demo2 Demo2 Bossa Nova BosaNova Fusion Fusion Jazz Jazz SP 5600 Portable Grand Keyboard... -
Page 64: Midi Implementation Chart
Sostenuto Pedal Soft Pedal Reverb Program Chorus Program Reverb Level Chorus Level All Sound Off Reset All Controllers All Notes Off Program Change True # *********** 0 – 127 System Exclusive System Common Song Position Pointer SP 5600 Portable Grand Keyboard... - Page 65 Tune Request System Real Time Clock Commands No *1 No *1 Aux Messages Local ON/OFF Active Sensing System Reset MIDI channel modes POLY MONO OMNI ON Mode 1 Mode 2 OMNI OFF Mode 3 Mode 4 SP 5600 Portable Grand Keyboard...
-
Page 66: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. SP 5600 Portable Grand Keyboard... - Page 68 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
