- Page 1 OBSBOT Tail Air Design Manual Version: V1.0...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ......................3 1.1 Purpose .......................3 1.2 Definition ....................3 2. Overall Design ..................... 4 2.1 Hardware Description ................4 2.2 Software Structure ................... 4 2.3 Conditions and Restrictions ..............5 3. Function Detailed Description ................ 5 3.1 Hardware Function Description ............ -
Page 3: Introduction

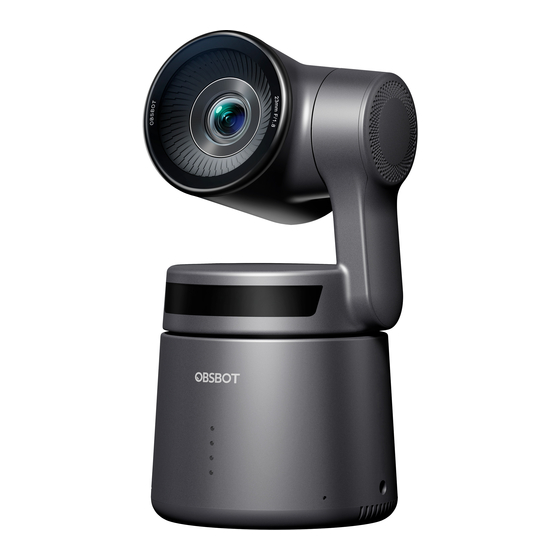

1.2 Definition OBSBOT Tail Air is an AI streaming camera mainly for live streaming. It can be placed and used by fixedly placing it on the desktop, plane and other positions. By combining the artificial intelligence, camera and software operations, the APP can view the real-time images of the camera. -
Page 4: Overall Design
2.Overall Design 2.1 Hardware Description The button of device is mainly for switching the device on and off, there are different lights and sounds when switching the device on and off, so that users can use the device more clearly and simply. 2.2 Software Structure The software is for the management of camera data transmission, the control of the equipment and the video transmission . -
Page 5: Conditions And Restrictions
2.3 Conditions and Restrictions IOS: Compatible with IOS 12 and above Android phone: Compatible with android 8.0 and above 3.Detailed Function Description 3.1 Hardware Function Description 3.1.1 Buttons Power on: Long press 3s to power on Sleep: In the power-on state, long press 3s to sleep ... -
Page 6: Interface Description
Power display: single press to check the power in the off state 3.1.2 Interface Description Type-C: Mainly used for charging or connecting to a computer to transfer files. HDMI micro: Mainly used to connect to a monitor to display the current camera screen. AUX: aux audio interface, AUX 3.5mm audio interface can be used for headphones, microphones, computers and other devices with audio interface. - Page 7 racing Action Light Effect Frequency Stop Show Priority Color Shutdown none none Boot process, blue horse fast Stop after Shutdown racing complete shutdown and startup Device error solid Stop after device error is resolved The device is not breathing fast Stop after ready, such as: TF device error is...
-
Page 8: Software Function Description
3.2.1.2 User Permission Description Tail Air can be connected via mobile phone. Multiple devices can be searched at the same time, but one device only supports one APP to connect at the same time, and... -
Page 9: Shooting Screen
3.3.1.3 Requirements Description 3.2.2 Shooting Screen Search Device 1. The user needs to open the APP and turn on Bluetooth and Wi-Fi, and grant relevant permissions to the APP. Connect Device 1. Search the device through Bluetooth, click connect, confirm whether the Bluetooth is paired, wait for the Bluetooth connection if it is not paired. - Page 10 White box: Preview position Red box: Output location Preset position red: Output preset position Preset position yellow: Preset position has been added, but not output Movement path: Display the movement path according to the connection of the center point of the output and preview frames PTZ movement: When the PTZ moves, the animation style of ">>>"...
- Page 11 Output Switch When clicking a position other than the preset position, it will directly switch the output screen to this position, and the screen is the default size of the frame PTZ Position When the preview frame slides to the edge of the screen, arrows guide(up, down, left, right, oblique) will appear, and the guide position will appear on the opposite side of the moving position (eg: slide to the right, the guide will appear on the leftmost inside the frame).
- Page 12 digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 13 (2) this device must accept any interference, including interference that may cause undesired operation of the device." - French:" Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le...
- Page 14 6.CE STATEMENT This product complies with the radio interference requirements of the European Community. Product name: OBSBOT Tail Air Product model: OSB -2108-CW Manufacturer: REMO TECH Co.,LTD. Frequency Range: Max. Transmit Power: SIMPLIFIED EU DECLARATION OF CONFORMITY The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows: Hereby, REMO TECH Co.,LTD declares that radio equipment type MOCHA is in...
