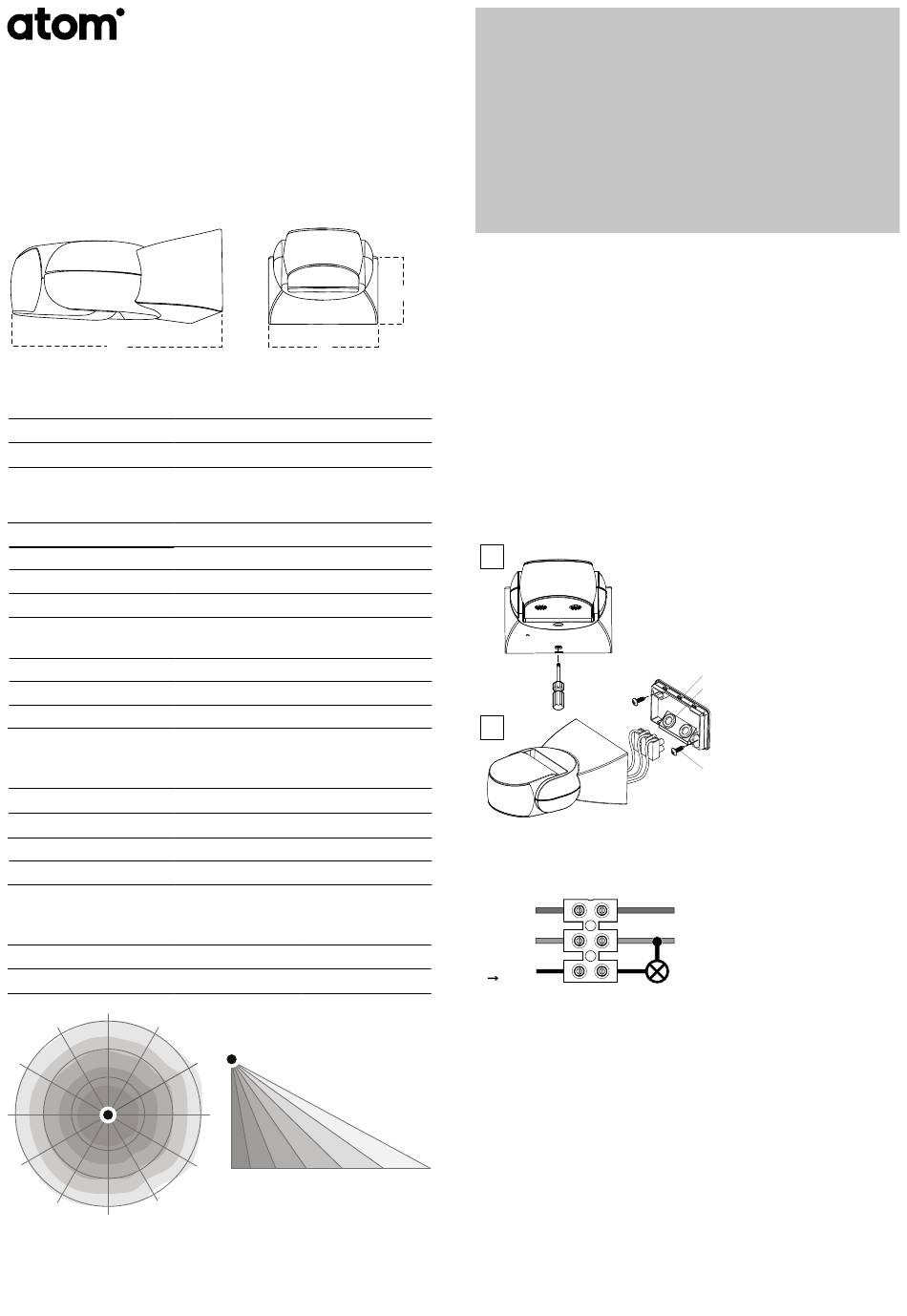

Atom AT4120/PIR/WHT Instruction Manual

INSTruction MANUAL
AT4120/PIR/WHT
PIR SENSOR
PIR sensor 12 m - wall mount - IP65 - white
117
Product Specification
Sensors
Supply voltage
Output load
Operating temperature
Field of view
Detection range
Detection motion speed 0.6 - 1.5 m/s
Time delay
Ambient light
Ingress protection
Material
Mounting
Mounting options
Mounting centres
Installation height
Dimensions
Detection pattern
Detection Zone
Range ø
Max
12 m
75%
50%
25%
10%
6 4 2 2 4
80
PIR, ambient light
220 V ~ 50 Hz
1200W incandescent
300W inductive
150W LED
-20 to 40°C
180°
Max. 12 m (< 24 °C)
Min. 10 sec ± 3 sec
Max. 15 min ± 2 min
< 3 - 2000 lux (adjustable)
IP65
PC UV stabilised
Wall mount
60 x 32 mm
1.8 - 2.5 m mm
80 / 51 / 117 mm
Height
2.5 m
100%
6
2 4 6 8
IMPORTANT INFORMATION
• This product must only be installed by a licensed
electrician.
• Before commencing installation turn off and isolate the
electrical supply.
• No user serviceable / replaceable parts inside.
• Do not attempt to service other parts of the unit as this
will void the warranty.
Installation
Remove the product from the box and inspect it for any damage. If you
51
believe the product to be damaged or otherwise unsound, do not install
the product. Please return it to the place of purchase for replacement.
If the product is satisfactory, proceed with the installation:
1. Remove the screw from the base and detach the terminal
block cover.
2. Feed the mains cable through the gasket on the terminal block
cover. Connect the mains cable into the terminal block, as per the
wiring diagram below.
3. Fix the terminal block cover to the wall in the desired position.
4. Reattach the sensor to the terminal block cover and fix screw
in position.
1
2
Wiring diagram
L Brown
N Blue
L' Red
10 12
terminal block cover
gasket
mounting screws
L
IN~
N
Load
