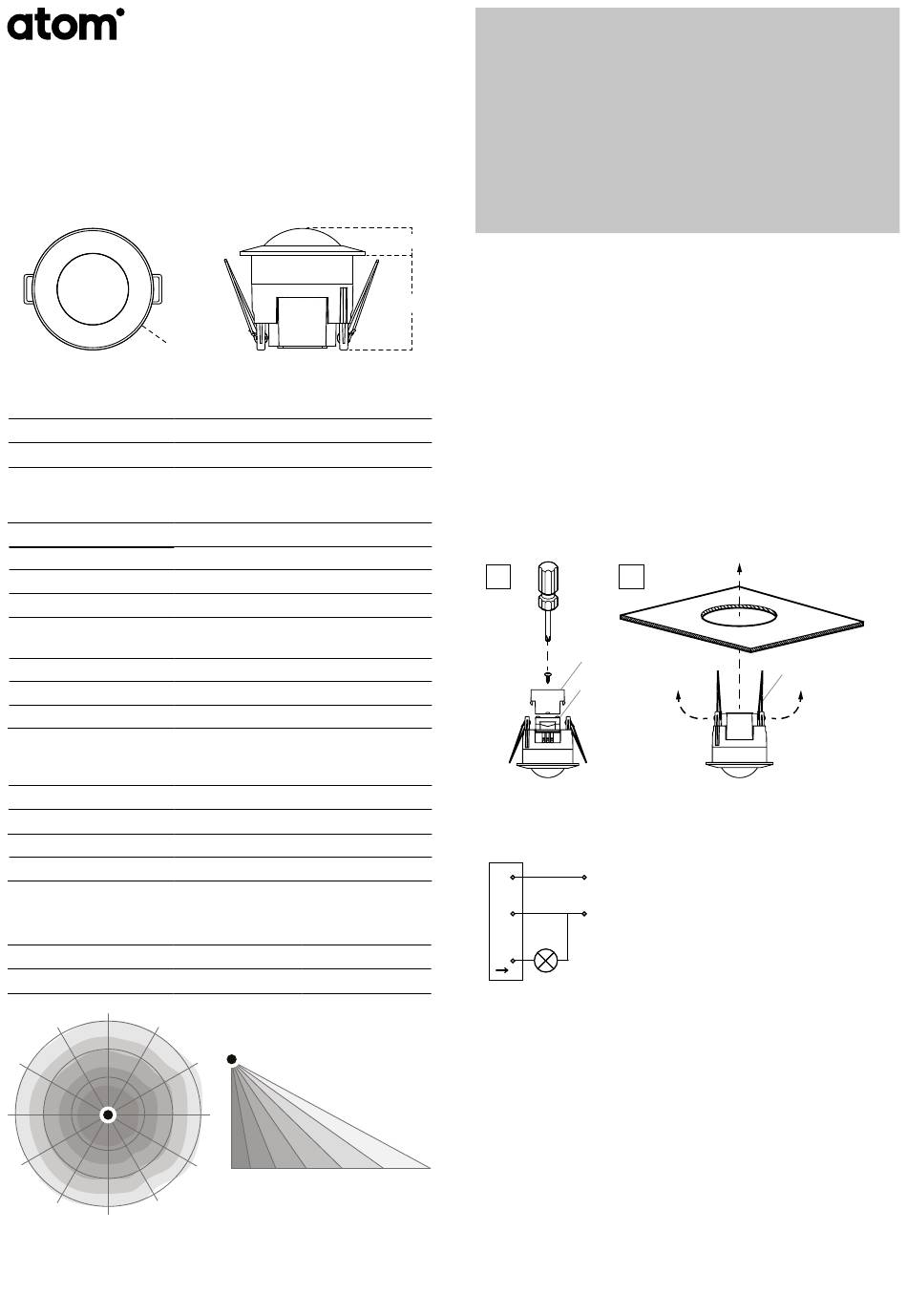

Atom AT4100MW Instruction Manual

INSTruction MANUAL
AT4100/MW/WHT
Microwave SENSOR
Microwave sensor 12 m - recessed mount - white
ø 75
Product Specification
Sensors
Supply voltage
Output load
Operating temperature
Field of view
Detection range
Detection motion speed 0.6 - 1.5 m/s
Time delay
Ambient light
Ingress protection
Material
Mounting
Mounting options
Installation height
Cut out
Dimensions
Detection pattern
Detection Zone
Range ø
Max
12 m
3 2 1 1 2
Microwave, ambient light
220 V ~ 50 Hz
1200W incandescent
600W inductive
300W LED
-20 to 40°C
360°
2 - 12 m (adjustable)
Min. 10 sec ± 3 sec
Max. 12 min ± 1min
< 3 - 2000 lux (adjustable)
IP20
PC UV stabilised
Recessed mount
1.5 - 3.5 m
ø 63 mm
ø 75 / 72 mm
Height
2.7 m
3
1 2 3 4
IMPORTANT INFORMATION
• This product must only be installed by a licensed
electrician.
• Before commencing installation turn off and isolate the
electrical supply.
• No user serviceable / replaceable parts inside.
• Do not attempt to service other parts of the unit as this
will void the warranty.
15
Installation
Remove the product from the box and inspect it for any damage. If you
57
believe the product to be damaged or otherwise unsound, do not install
the product. Please return it to the place of purchase for replacement.
If the product is satisfactory, proceed with the installation:
1. Remove the screw from the transparent cover on the base to
access the terminal block, as per fig 1.
2. Feed the mains cable through the strain relief and connect the
mains cable into the terminal block, as per the wiring diagram
below.
3. Reattach the transparent cover and fix screw in original position.
4. Pull the spring clips up as per fig 2, insert sensor into the desired
position and release the spring clips, ensuring that the sensor is
secure and flush up against the ceiling.
1
Wiring diagram
L
N
L'
Load
5 6
2
transparent cover
strain relief
L
IN~
N
spring clips
