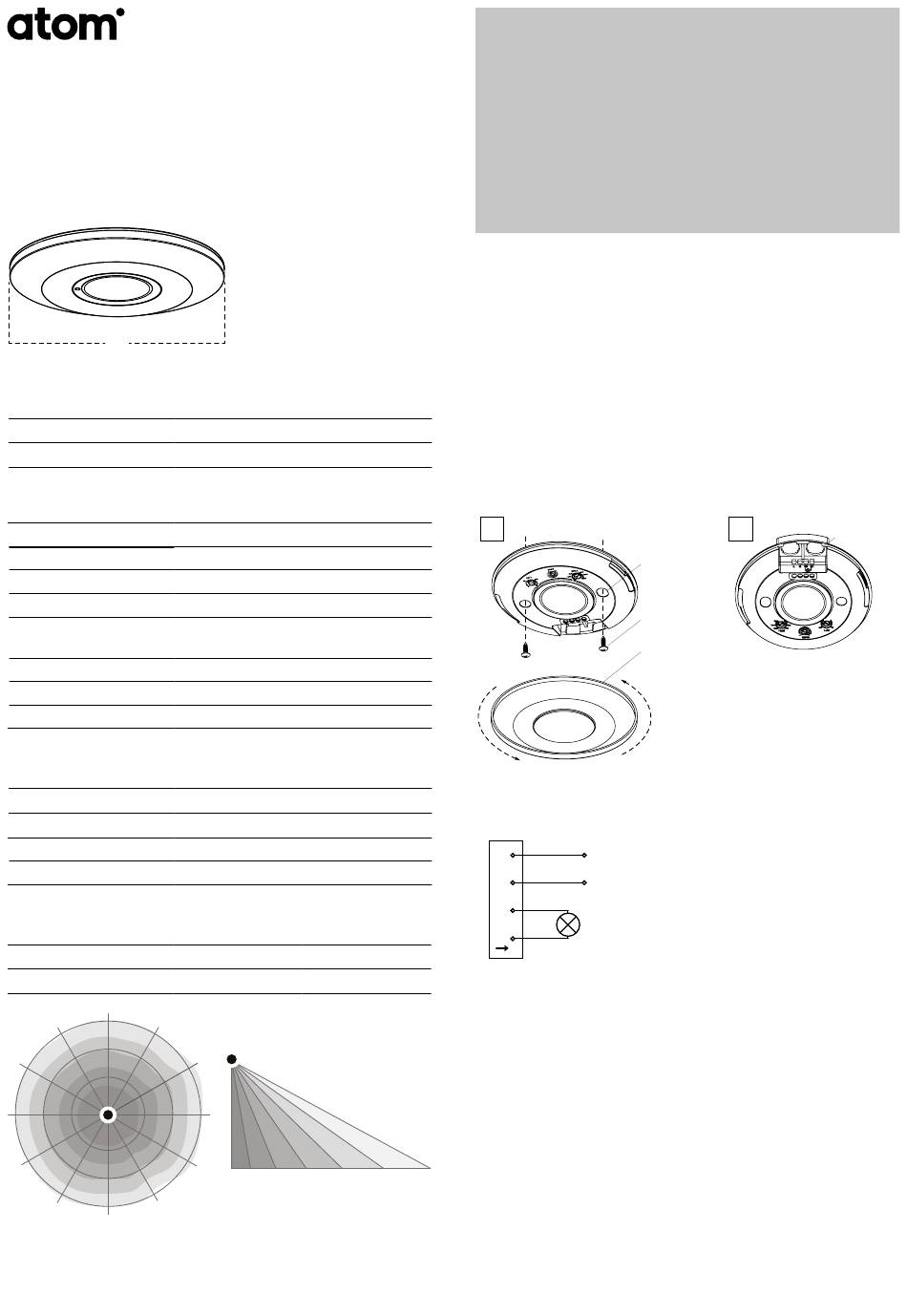

Atom AT4105 Instruction Manual

INSTruction MANUAL
AT4105/MW/WHT
Microwave SENSOR
Microwave sensor 12 m - surface mount - white
115
Product Specification
Sensors
Supply voltage
Output load
Operating temperature
Field of view
Detection range
Detection motion speed 0.6 - 1.5 m/s
Time delay
Ambient light
Ingress protection
Material
Mounting
Mounting options
Mounting centres
Installation height
Dimensions
Detection pattern
Detection Zone
Range ø
Max
12 m
75%
50%
25%
10%
6 4 2 2 4
Microwave, ambient light
220 V ~ 50 Hz
2000W incandescent
100W inductive
500W LED
-20 to 40°C
360°
2 - 12 M (adjustable)
Min. 10 sec ± 3 sec
Max. 12 min ± 1min
< 3 - 2000 lux (adjustable)
IP20
PC UV stabilised
Surface mount
64 mm
2 - 6 mm
ø 115 / 22 mm
Height
2.7 m
100%
6
2 4 6 8
IMPORTANT INFORMATION
• This product must only be installed by a licensed
electrician.
• Before commencing installation turn off and isolate the
electrical supply.
• No user serviceable / replaceable parts inside.
• Do not attempt to service other parts of the unit as this
will void the warranty.
Installation
Remove the product from the box and inspect it for any damage. If you
believe the product to be damaged or otherwise unsound, do not install
the product. Please return it to the place of purchase for replacement.
If the product is satisfactory, proceed with the installation:
1. Turn the cover anti-clockwise to detach it from base.
2. Carefully punch-out the cable entry cover(s).
3. Feed the mains cable through the cable entries on the sensor.
4. Connect the mains cable into the terminal block, as per the wiring
diagram below.
5. Fix the unit to the ceiling in the desired position.
1
Wiring diagram
L
N
N
L'
10 12
2
mounting holes
mounting screws
cover
L
IN~
N
Load
cable entries
